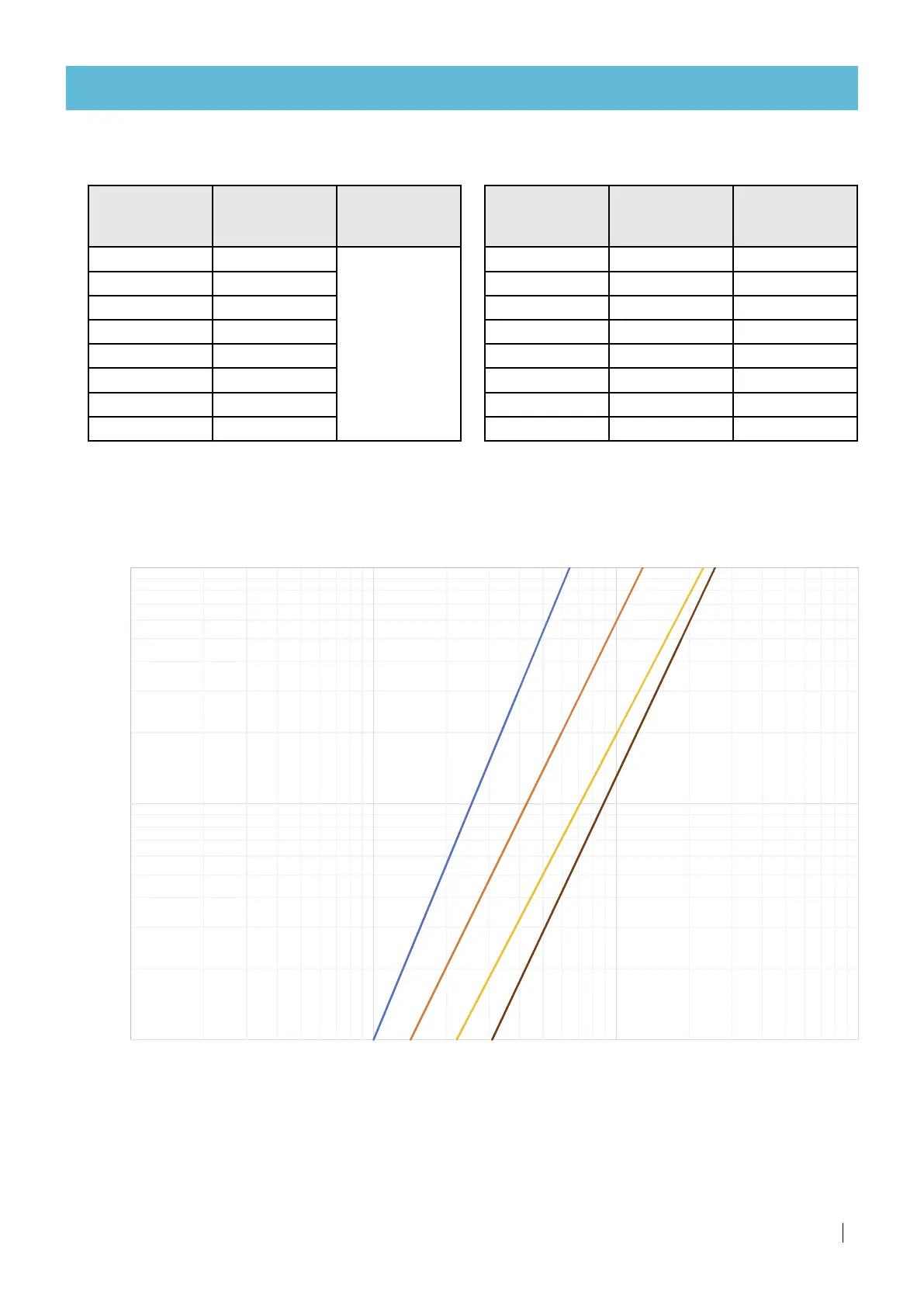

Netafim SCREENGUARD SG V 2 - Connection Diameter; Weights; Head Loss

SCREENGUARD
™
INSTALLATION AND USER MANUAL 9
DESCRIPTION
Connection diameter Weights
Head loss (clean filter)
The weights in the table above are order of
magnitude only - final data are issued with the
product order.
Model
Gross weight
(Kg)
Box Weight
(with filter)
(Kg)
SG V 2" T 30 44
SG V 3" T 30 42
SG V 3" F 36 50
SG V 3" ST 34 48
SG V 3" SF 40 54
SG V 4" F 42 56
SG V 4" SF 62 76
SG V 6" 66 81
Model
Inlet/outlet
connection
diameter
Backflush
connection
diameter
SG V 2" T 2"
50mm
SG V 3" T 3"
SG V 3" F 3"
SG V 3" ST 3"
SG V 3" SF 3"
SG V 4" F 4"
SG V 4" SF 4"
SG V 6" 6"
1
0.1
bar
0.01
1 10 100 1000
SGV2
SGV3
SGV4
m
3
/h
SGV6
