Netafim SCREENGUARD SG V 2 - Dimensions

8 SCREENGUARD
™
INSTALLATION AND USER MANUAL
DESCRIPTION
Dimensions

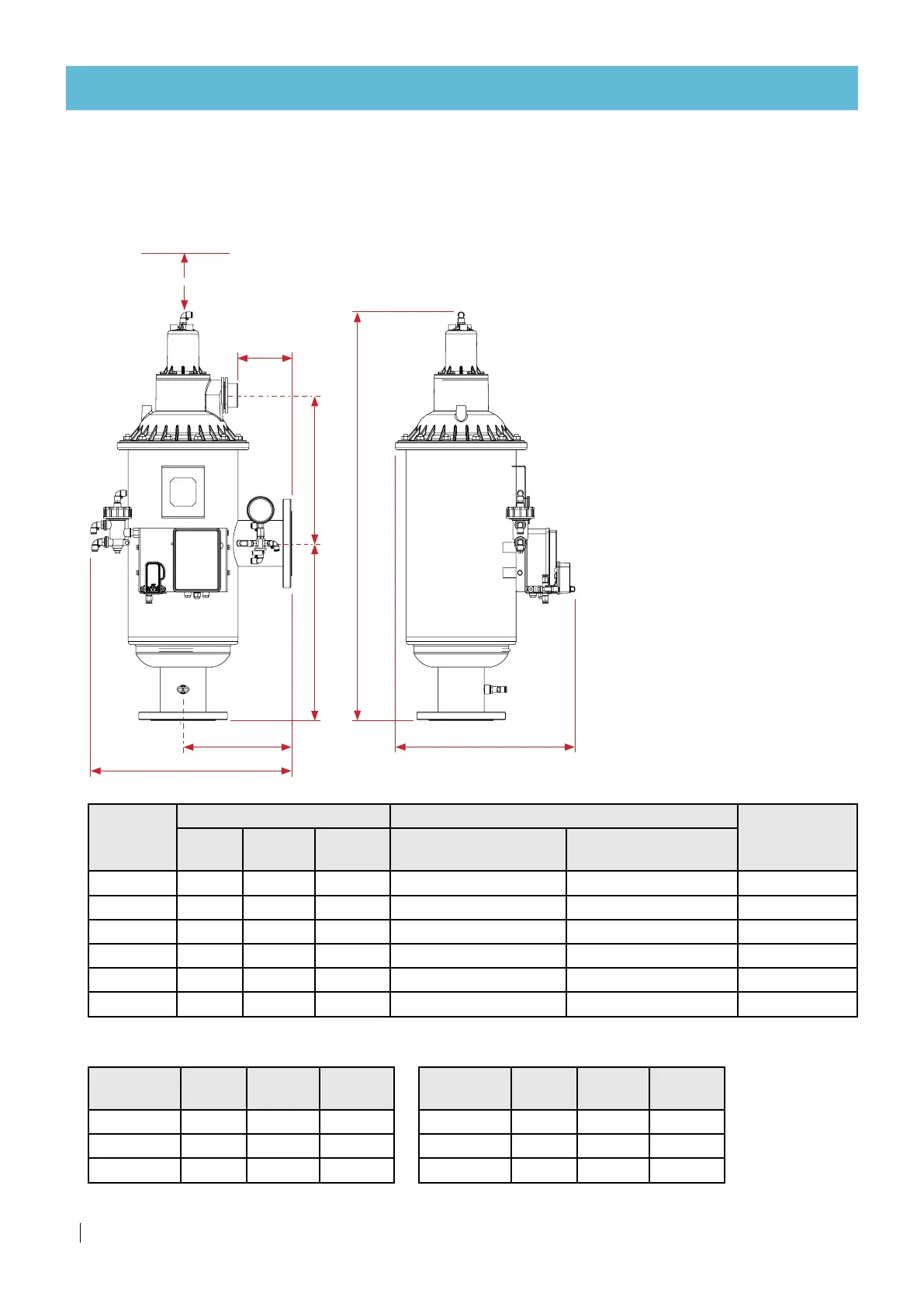

External dimensions and inlet and outlet locations [mm]:
Front view Side view
H
W1
W2
A1
B1
C
A2
B2
Box dimensions
Model
Height
[H]
Width 1
[W1]
Width 2
[W2]
SG V 2" 1,070 660 520
SG V 3" 1,070 660 520
SG V 3" S 1,070 660 520
Model
External dimensions Inlet and outlet location
Clearance for
maintenance
[C]
Height
[H]
Width 1
[W1]
Width 2
[W2] Inlet to outlet Outlet to drain
SG V 2" 925 455 500 H [A1] 270, V [A2] 390 H [B1] 130, V [B2] 318 600
SG V 3" 925 455 500 H [A1] 270, V [A2] 390 H [B1] 130, V [B2] 318 600
SG V 3" S 1025 455 500 H [A1] 270, V [A2] 440 H [B1] 130, V [B2] 368 700
SG V 4" 1025 455 500 H [A1] 270, V [A2] 440 H [B1] 130, V [B2] 368 700
SG V 4" S 1430 455 500 H [A1] 270, V [A2] 620 H [B1] 135, V [B2] 475 1000
SG V 6" 1430 455 500 H [A1] 270, V [A2] 620 H [B1] 135, V [B2] 475 1000
Model
Height
[H]
Width 1
[W1]
Width 2
[W2]
SG V 4" 1,070 660 520
SG V 4" S 1,430 550 550
SG V 6" 1,430 550 550
