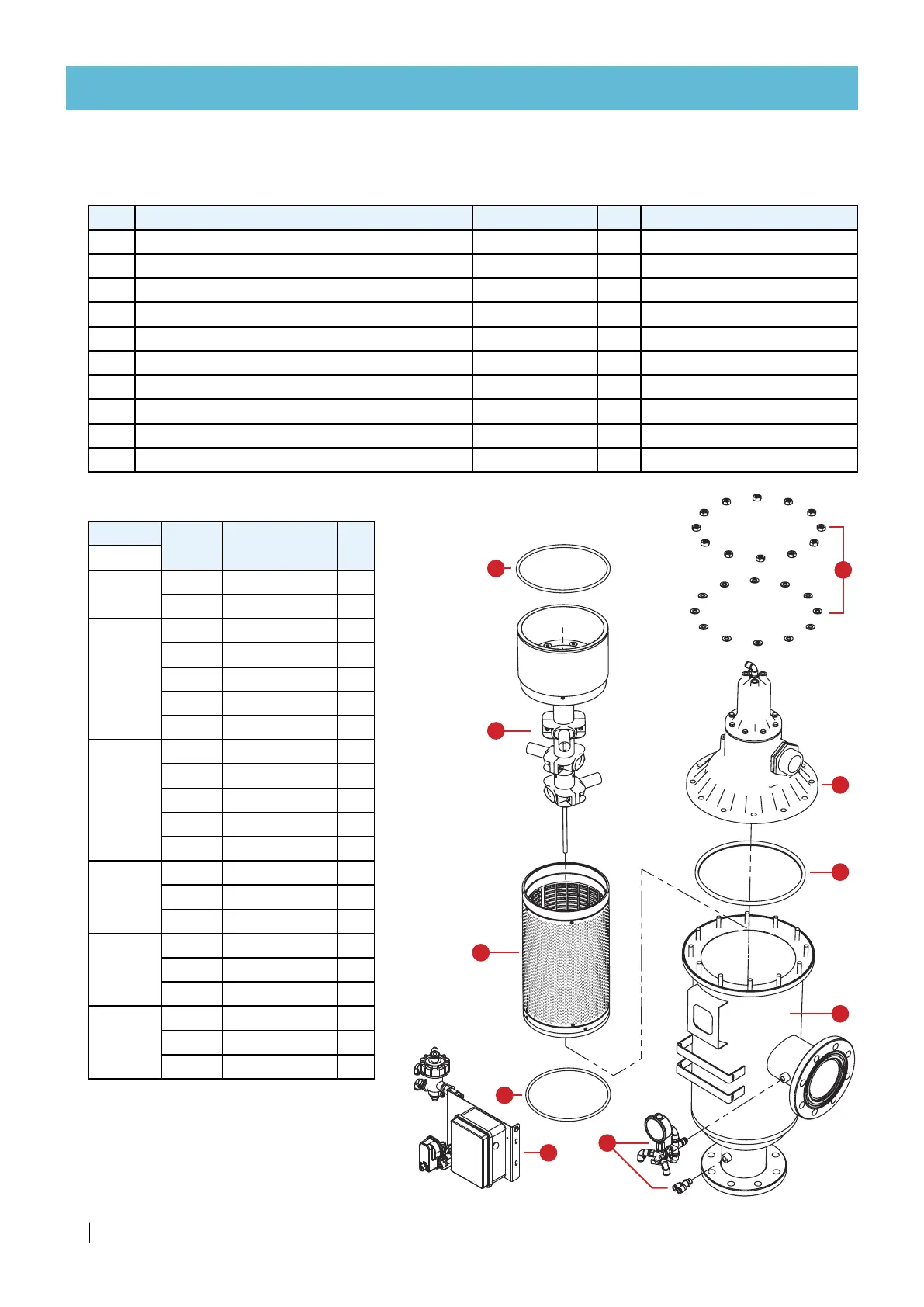

REPLACEMENT PARTS
Spare parts
Part Description Cat. No. Qty. See details on page:
1 Metal Body 1 38
2 Screen Assembly kit 1 39
3 Flush Assembly 1 39
4 Piston Cover Assembly 1 41
5 Electronic Controller Assembly 1 42
6 Pressure Gauge Assembly 1 43
7 Cover Gasket 71965-000406 1 44 (Seal Kit)
8 O-ring 71965-000407 2 44 (Seal Kit)
9 10mm SS Washer and Nuts - 12 pcs set 71965-000256 1 44 (Washers and Nuts set)
10 Complete O-ring and gasket kit for SG Filters 71965-000450 1 44 (Seal Kit)
Main parts and assemblies
Metal Body
Part
Thread
type
Cat. No.
Qty.
1
SGV 2"
BSPT 71965-000100 1
NPT 71965-000101 1
SGV 3"
BSPT 71965-000102 1
NPT 71965-000103 1
DIN 71965-000104 1
BSTD 71965-000105 1
ANSI 71965-000106 1
SGV 3"S
BSPT 71965-000107 1
NPT 71965-000108 1
DIN 71965-000109 1
BSTD 71965-000110 1
ANSI 719 65 - 00 0111 1
SGV 4"
DIN 71965-000112 1
BSTD 71965-000113 1
ANSI 71965-000114 1
SGV 4"S
DIN 71965-000150 1
BSTD 71965-000151 1
ANSI 71965-000152 1
SGV 6"
DIN 71965-000140 1
BSTD 71965-000141 1
ANSI 71965-000142 1
To Next Page
