SCREENGUARD
™
INSTALLATION AND USER MANUAL 39
REPLACEMENT PARTS
Part
Filtration
grade
(micron)
Cat. No.
Qty.
SGV 2" SGV 3" SGV 3"S SGV 4" SGV 4"S SGV 6"
2 100 μm 71965-000200 71965-000203 71965-000210 1
130 μm 71965-000201 71965-000204 71965-000211 1
200 μm 71965-000202 71965-000205 71965-000212 1
500 μm 71965-000213 71965-000214 1

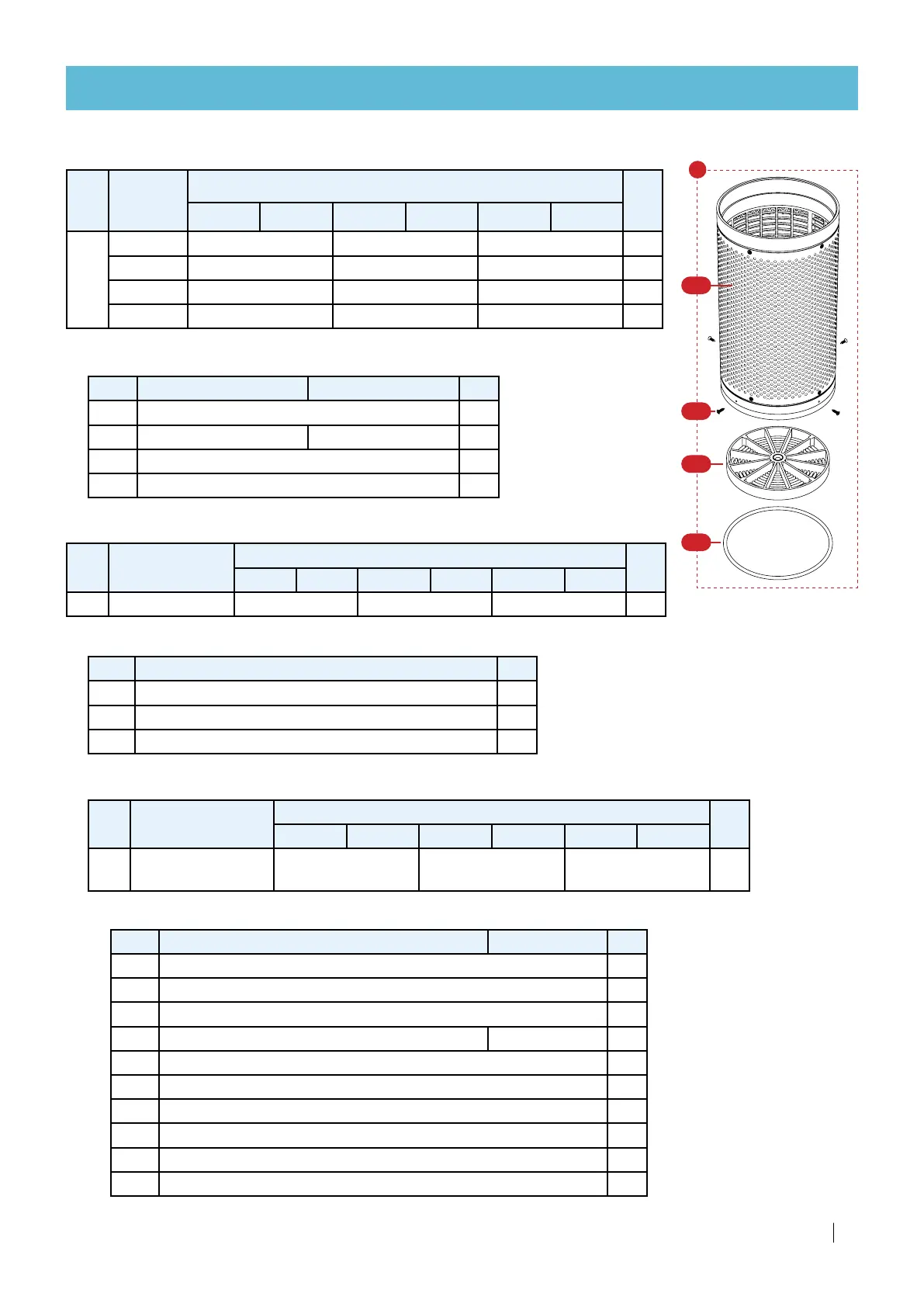

Screen Assembly
Part Description Cat. No. Qty.
2.1 Fine Screen 1
2.2 Plastic Coarse Screen 71965-000265 1
2.3 O-ring (See Seal Kit, page 44) 1
2.4 Countersunk Flat Head Cross Recess Screw 4
The Screen Assembly consists of the following parts
Part Description
Cat. No.
Qty.SGV 2" SGV 3" SGV 3"S SGV 4" SGV 4"S SGV 6"
3 Flush Assembly 71965-000250 71965-000262 71965-000249 1
Flush Assembly
The Flush Assembly consists of the following parts
Part Description Qty.
3.1 Turbine Chamber Main Body 1
3.2 O-ring (See Seal Kit, page 44) 1
3.3 Suction Assembly Without Housing (See below) 1
Suction Assembly Without Housing
Part Description Cat. No. Qty.
3.3.1 Suction Assembly Center Pipe 1
3.3.2 Turbine Chamber Partition 1
3.3.3 Turbine Assembly (See page 40) 1
3.3.4 Nozzle Assembly (See page 40) 71965-000412 2
3.3.5 Center Pipe Top Plug 1
3.3.6 Center Pipe Shaft 1
3.3.7 Center Pipe Shaft Connecting Plastic Bolt 1
3.3.8 Countersunk Flat Head Cross Recess Screw 5x12H A2x70 3
3.3.9 Countersunk Flat Head Cross Recess Screw 4x32H A2x70 3
3.3.10 Countersunk Flat Head Cross Recess Screw 4.2x16H A2x70 6
The Suction Assembly consists of the following parts
2.1
2.4
2.2
2.3
2
Part Description
Cat. No.
Qty.SGV 2" SGV 3" SGV 3"S SGV 4" SGV 4"S SGV 6"
3.3
Suction Assembly
Without Housing
71965 - 00264 71965-00263 71965-000248 1
