Netafim SCREENGUARD SG V 2 - Page 40

40 SCREENGUARD
™
INSTALLATION AND USER MANUAL
REPLACEMENT PARTS

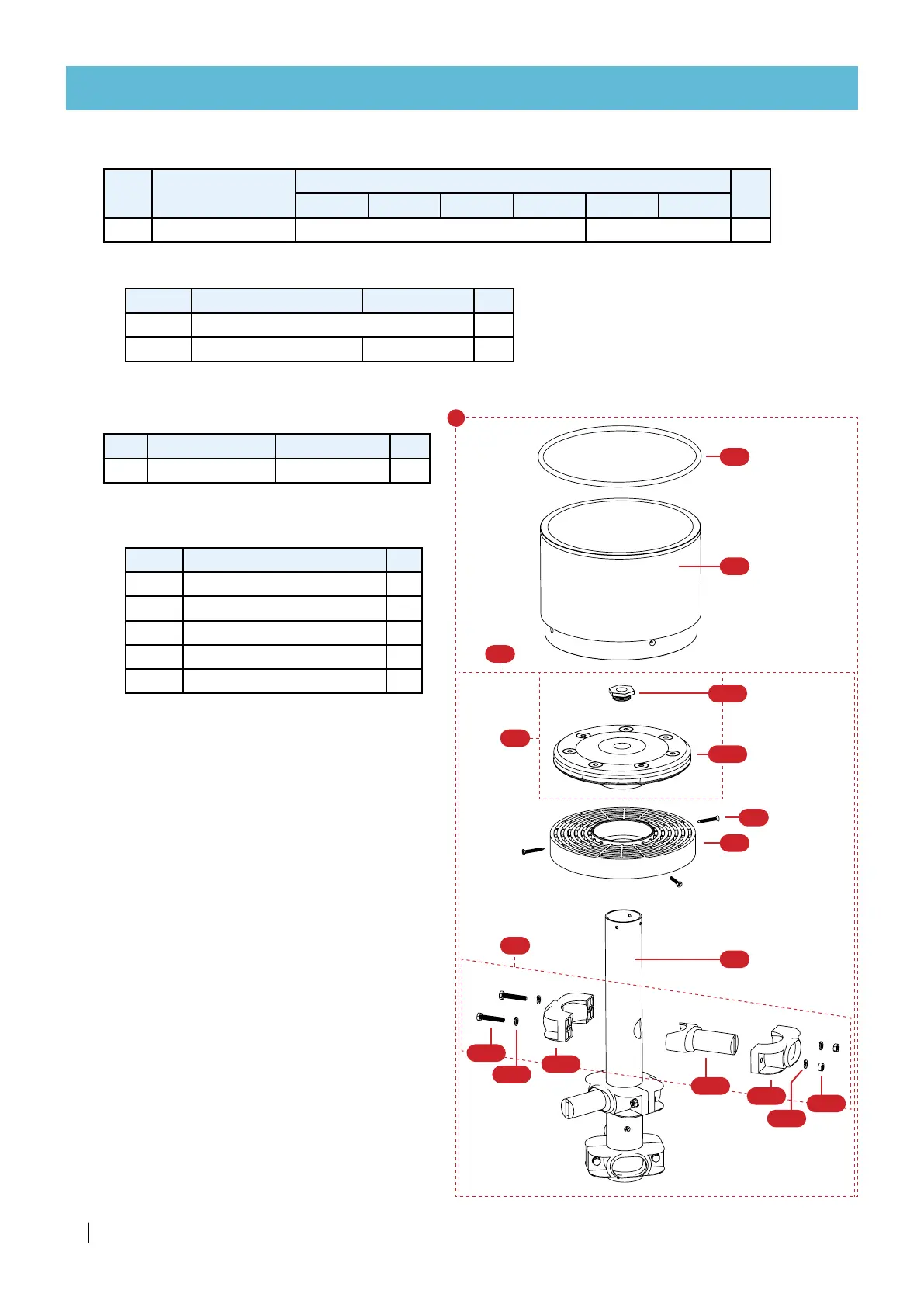

The Turbine Assembly consists of the following parts
Part Description Cat. No. Qty.
3.3.3.1 Turbine Set 1
3.3.3.2 Turbine Brass Bearing 71965-00266 1
Part Description Qty.
3.3.4.1 Nozzle Clamp 2
3.3.4.2 Nozzle Round 1
3.3.4.3 M6x35 HEX Screw A2x70 2
3.3.4.4 M6 Plain Washer A2x70 4
3.3.4.5 M6 Hex Nut A2x70 2
The Nozzle Assembly consists
of the following parts
Nozzle Assembly
Part Description Cat. No. Qty.
3.3.4 Nozzle Assembly 71965-000412 1
3.2
3.3.4
3.1
3.3.2
3.3.1
3.3.3.1
3.3.3.2
3.3.5
3.3.4.2
3.3.4.3
3.3.4.4
3.3.4.5
3.3.4.1
3.3.4.4
3.3.4.1
3.3
3.3.3
3
Turbine Assembly
Part Description
Cat. No.
Qty.SGV 2" SGV 3" SGV 3"S SGV 4" SGV 4"S SGV 6"
3.3.3 Turbine Assembly 71965-000257 71965-000411 1
