4.6
4.7
4.2
4.3
4.1
4.5
4.8
4.4.6
4.4.7
4.4.4
4.4.5
4.4.2
4.4.3
4.4.2
4.4.1
4.4.4
4.4.3
4.4.8
4.4.5
4.4.9
4.4
4

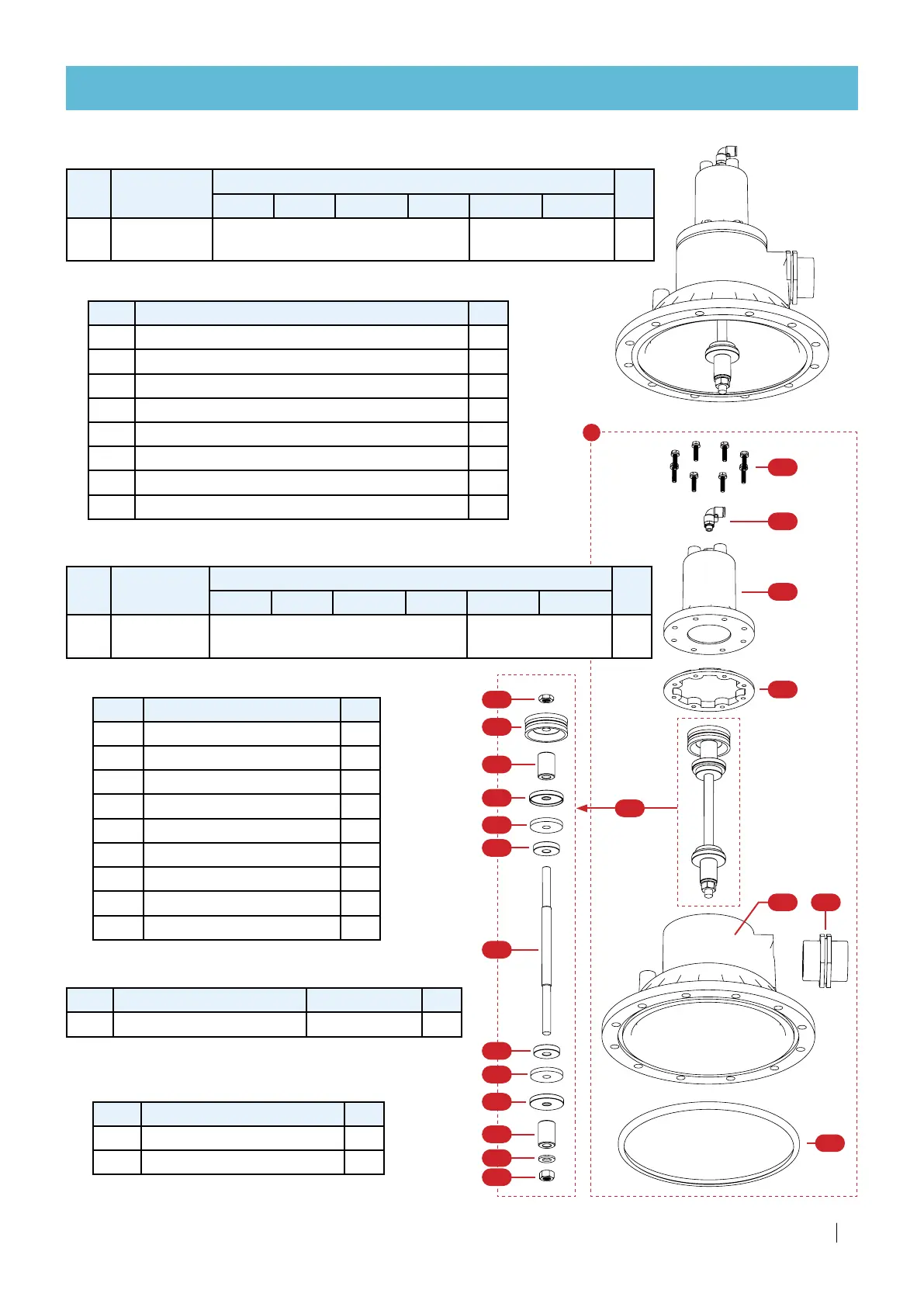

Piston Cover Assembly
Part Description Qty.
4.1 Piston Cover 1
4.2 Piston Cylinder 1
4.3 Cylinder Gasket (See Seal Kit, page 44) 1
4.4 Rod Assembly (See below) 1
4.5 Cover Gasket (See Seal Kit, page 44) 1
4.6 M6 Bolts and Washer Kit (See below) 1
4.7 Plug in Metal Connector 90 deg 8mm X 1/8" 1
4.8 Plastic Nipple 63x2" 1
The Piston Cover Assembly consists of the following parts
Rod Assembly
The Rod Assembly consists of the following parts
Part Description Qty.
4.4.1 Rod 1
4.4.2 Plastic Spacer 2
4.4.3 Seal Disc 2
4.4.4 Brass Disk Seat 2
4.4.5 Plastic Disc 2
4.4.6 Piston Seal 1
4.4.7 M12 Half Hex Nut A2x35 1
4.4.8 M12 Plain Washer A2x70 1
4.4.9 M12 Hex Nut A2x70 1
Part Description Cat. No. Qty.
4.6 M6 Bolts and Washer Kit 71965-000260 1
M6 Bolts and Washer Kit
The Bolts and Washer Kit consists of the
following parts
Part Description Qty.
4.6.1 M6 Plain Washer A2x70 8
4.6.2 M6x25 Hex Screw A2x70 8
REPLACEMENT PARTS
Part Description
Cat. No.
Qty.SGV 2" SGV 3" SGV 3"S SGV 4" SGV 4"S SGV 6"
4
Piston Cover
Assembly
71965-000251 71965-000402 1
Part Description
Cat. No.
Qty.SGV 2" SGV 3" SGV 3"S SGV 4" SGV 4"S SGV 6"
4.4
Rod
Assembly
71965-000259 71965-000413 1
