NetApp DS224C Service Guide

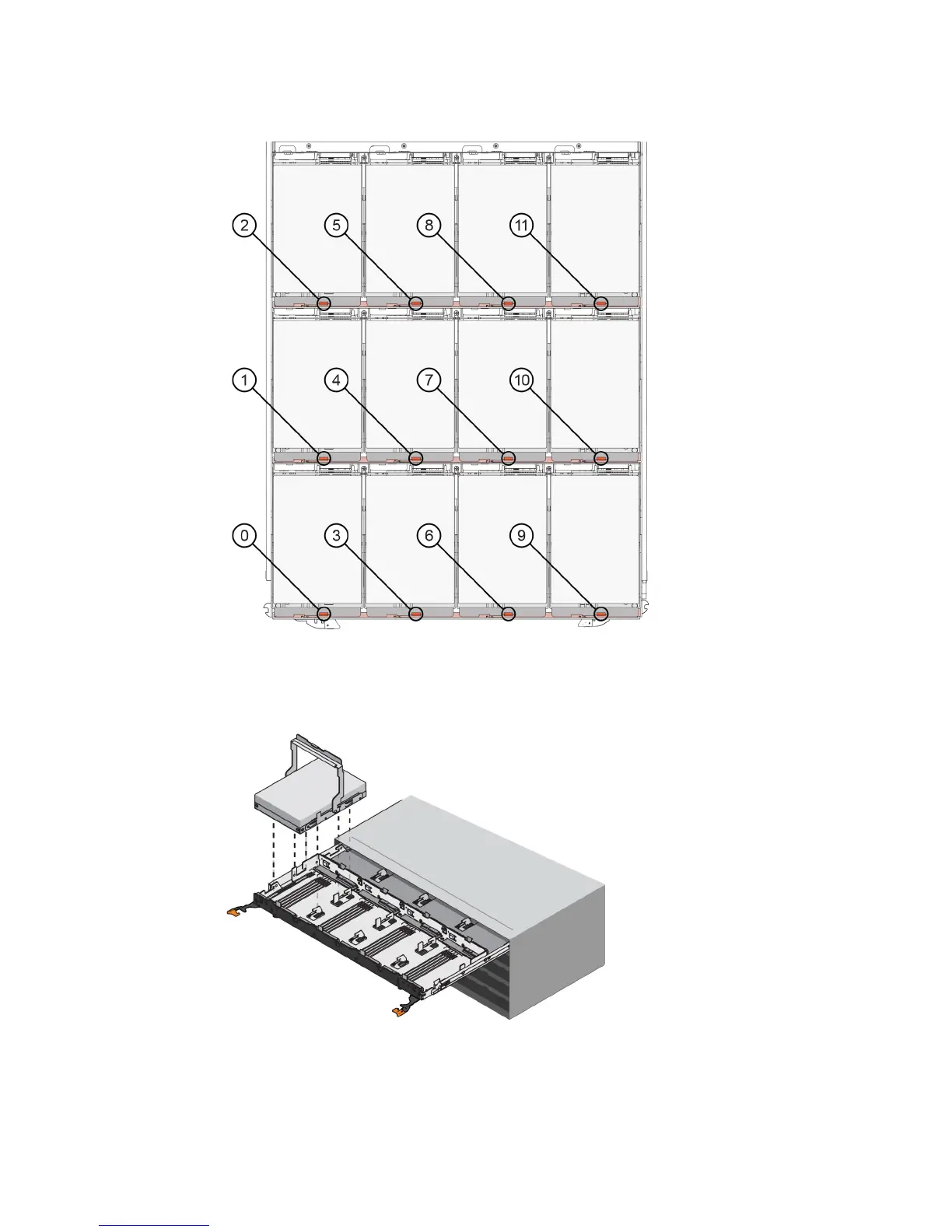

b. Raise the drive handle to vertical.
c. Use the handle to lift the drive from the drive drawer.
d. Place the drive on a flat, static-free surface and away from magnetic devices.
Attention: Possible loss of data access – Magnetic fields can destroy all data on the drive
and cause irreparable damage to the drive circuitry. To avoid loss of data access and damage
to the drives, always keep drives away from magnetic devices.
6. Follow these steps to remove the drive drawer:
Replacing a drive drawer in a DS460C disk shelf |
27

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
