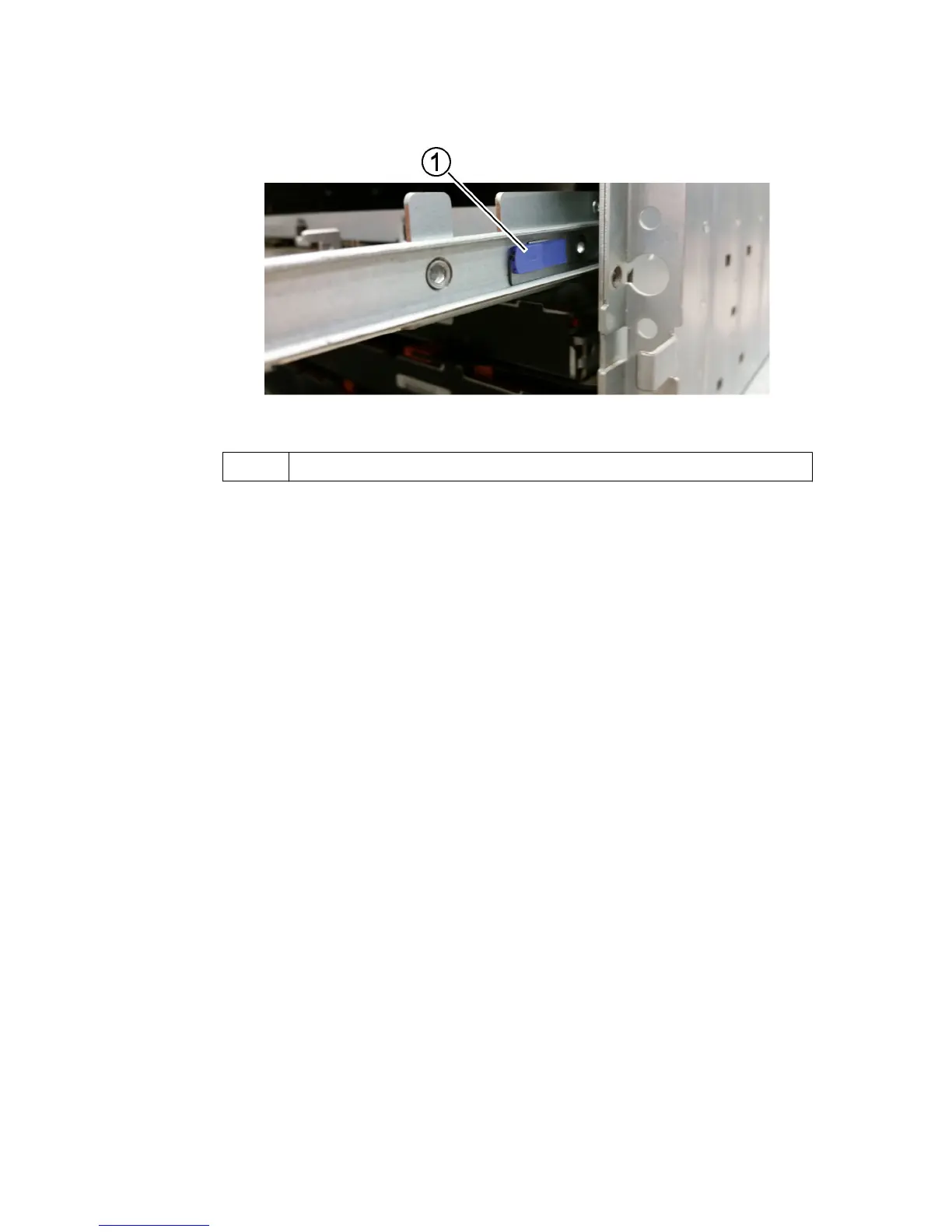

a. Locate the plastic release lever on each side of the drive drawer.
1 Drive drawer release lever
b. Open both release levers by pulling the latches toward you.
c. While holding both release levers, pull the drive drawer toward you.
d. Remove the drive drawer from the drive shelf.
Installing a drive drawer
Installing a drive drawer into a drive shelf entails sliding the drawer into the empty slot, installing the
drives, and replacing the front bezel.
Before you begin
• You know where to install each drive.
• You have obtained the following items:
◦ Replacement drive drawer
◦ Flashlight
Steps
1. From the front of the drive shelf, shine a flashlight into the empty drawer slot, and locate the lock-
out tumbler for that slot.
The lock-out tumbler assembly is a safety feature that prevents you from being able to open more
than one drive drawer at one time.
28
| Service Guide for DS460C, DS224C and DS212C Disk Shelves
