c. To unplug the cable chain, pull your finger toward you approximately 1 inch (2.5 cm), but
leave the cable chain connector within the vertical bracket.
10. Disconnect the left cable chain from the horizontal bracket, and pull the entire cable chain out of
the drive shelf.
Removing a drive drawer
After removing the right and left cable chains, you can remove the drive drawer from the drive shelf.
Removing a drive drawer entails sliding the drawer part of the way out, recording the locations of the
drives, removing the drives, and removing the drive drawer.
Before you begin
• You have removed the right and left cable chains for the drive drawer.
• You have replaced the right and left fan modules.
• You have obtained a permanent marker to note the exact location of each drive as you remove the
drive from the drawer.
Steps
1. Remove the bezel from the front of the drive shelf.
2. Unlatch the drive drawer by pulling out on both levers.
3. Using the extended levers, carefully pull the drive drawer out until it stops. Do not completely
remove the drive drawer from the drive shelf.
4. If logical unit numbers (LUNs) have already been created and assigned, use a permanent marker

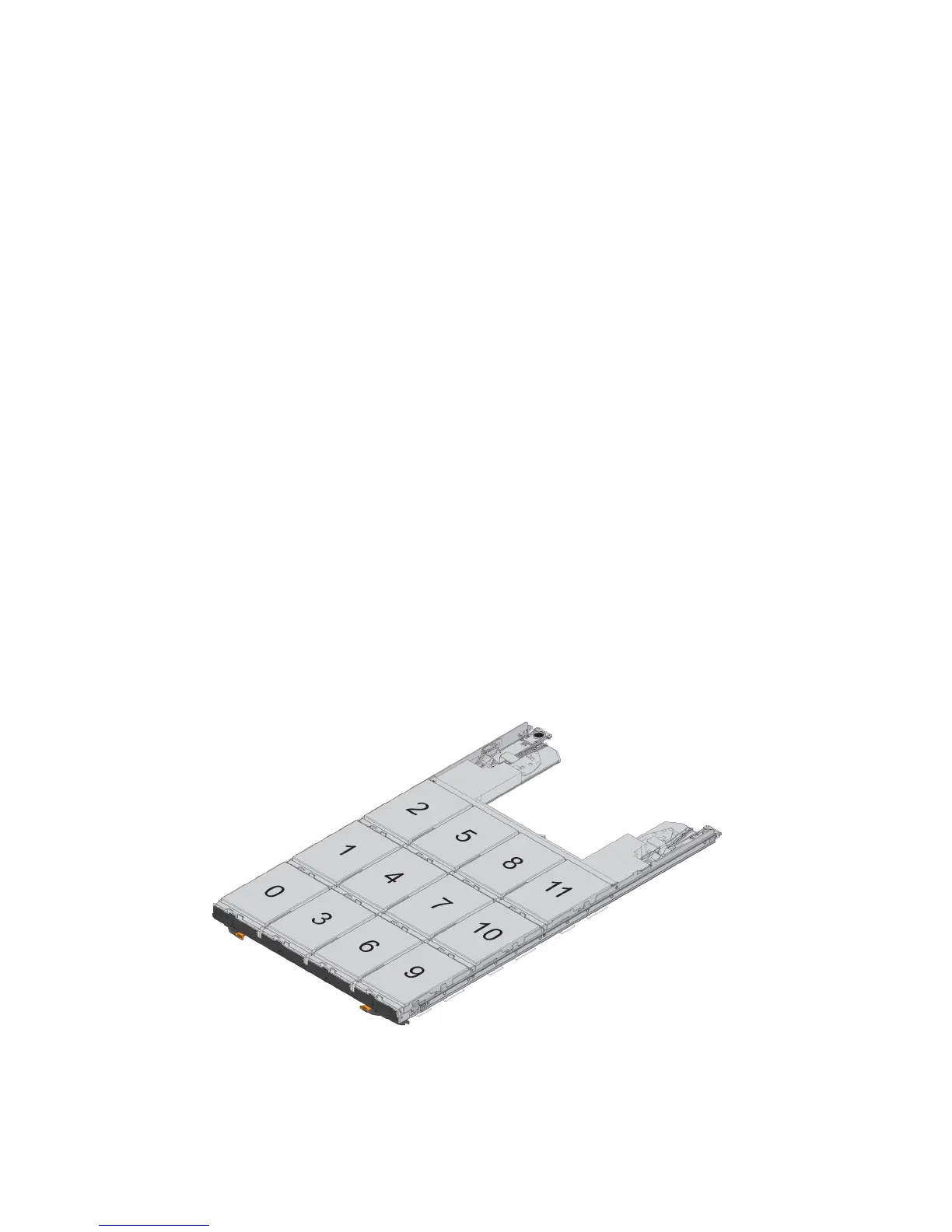

to note the exact location of each drive. For example, using the following drawing as a reference,
write the appropriate slot number on the top of each drive.
Attention: Possible loss of data access – Make sure to record the exact location of each drive
before removing it.
5. Remove the drives from the drive drawer:
a. Gently pull back the orange release latch that is visible on the center front of each drive. The
following image shows the orange release latch for each of the drives.
26
| Service Guide for DS460C, DS224C and DS212C Disk Shelves
To Next Page
