LED icon LED name State Description
Power Solid green The power supply is functioning correctly.
Off The power supply failed, the AC switch is turned off,
the AC power cord is not properly installed, or
electricity is not being properly supplied to the power
supply.
Check event messages to determine corrective action to
take.
Attention Solid amber An error occurred with the function of the power
supply.
Check event messages to determine corrective action to
take.
Depending on your disk shelf model, power supplies can be different, dictating the location of the
two LEDs.

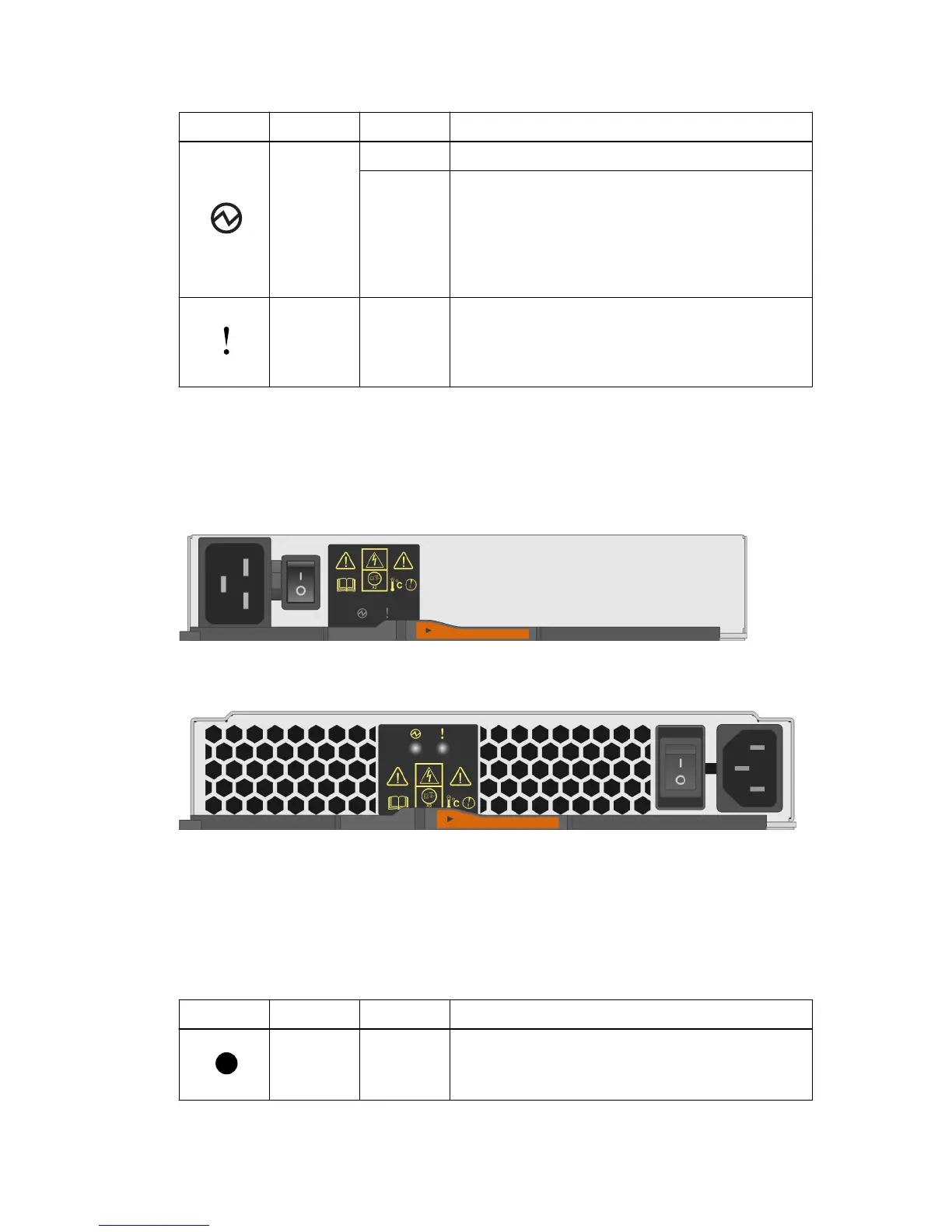

The following illustration is for a power supply used in a DS460C disk shelf.
The two LED icons act as the labels and LEDs, meaning the icons themselves illuminate—there are
no adjacent LEDs.
The following illustration is for a power supply used in a DS224C or DS212C disk shelf:
Fan LEDs on DS460C disk shelves
The LEDs on the DS460C fans indicate whether the fan is functioning normally or there are
hardware problems.
The following table describes the LEDs on fans used in DS460C disk shelves:
Item
LED name State Description
Attention Solid amber An error occurred with the function of the fan.
Check event messages to determine corrective action to
take.
Monitoring disk shelf LEDs |
47
