NetApp DS224C Service Guide

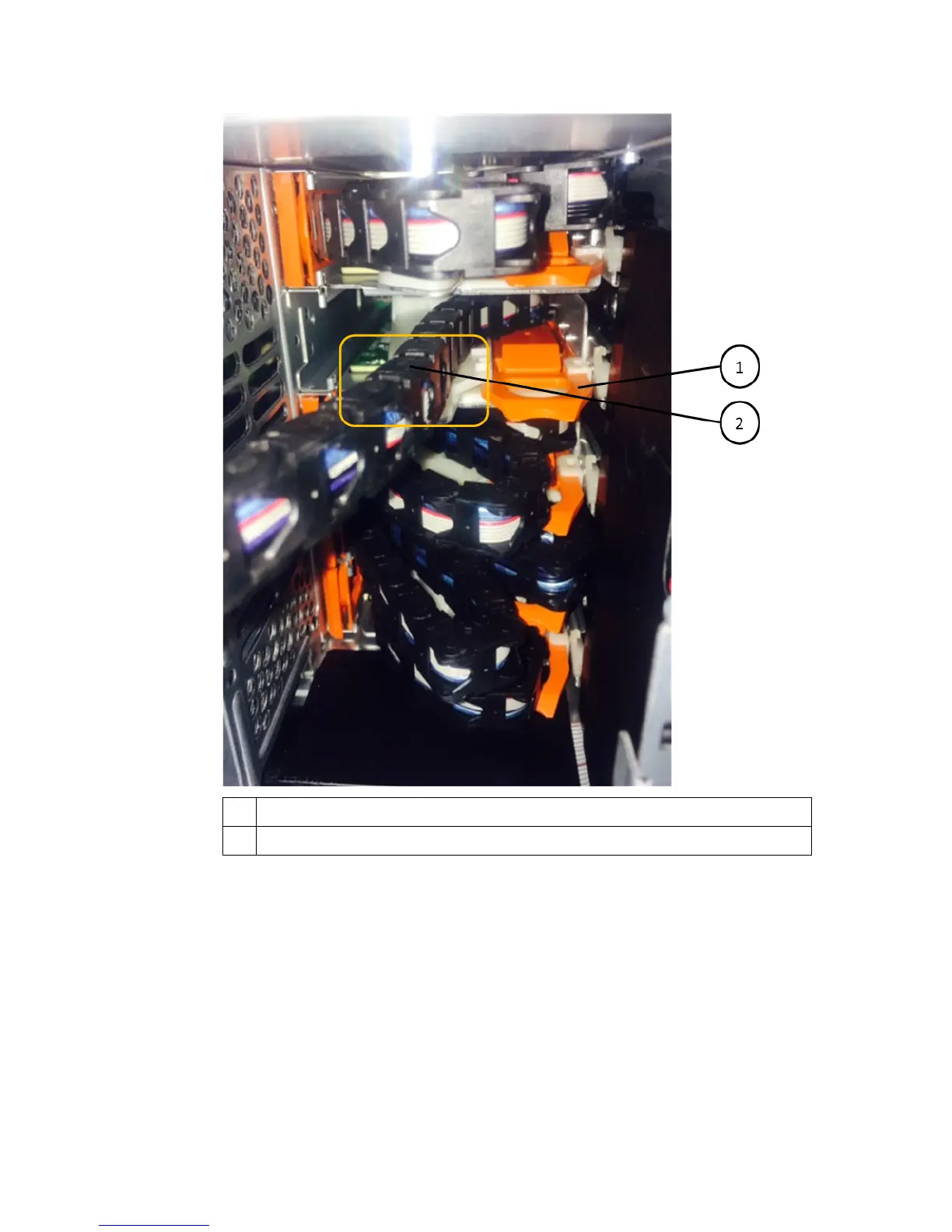

1 Orange ring on horizontal bracket
2 Cable chain
b. Gently insert your finger into the orange ring.
The figure shows the orange ring on the horizontal bracket being pushed down so that the rest
of the cable chain can be pulled out of the enclosure.
c. Pull your finger toward you to unplug the cable chain.
7. Carefully pull the entire cable chain out of the drive shelf.
8. From the back of the drive shelf, remove the left fan module.
9. Follow these steps to disconnect the left cable chain from its vertical bracket:
a. Using a flashlight, locate the orange ring on the end of the cable chain attached to the vertical
bracket.
b. Insert your finger into the orange ring.
Replacing a drive drawer in a DS460C disk shelf |
25

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
