NetApp DS224C Service Guide

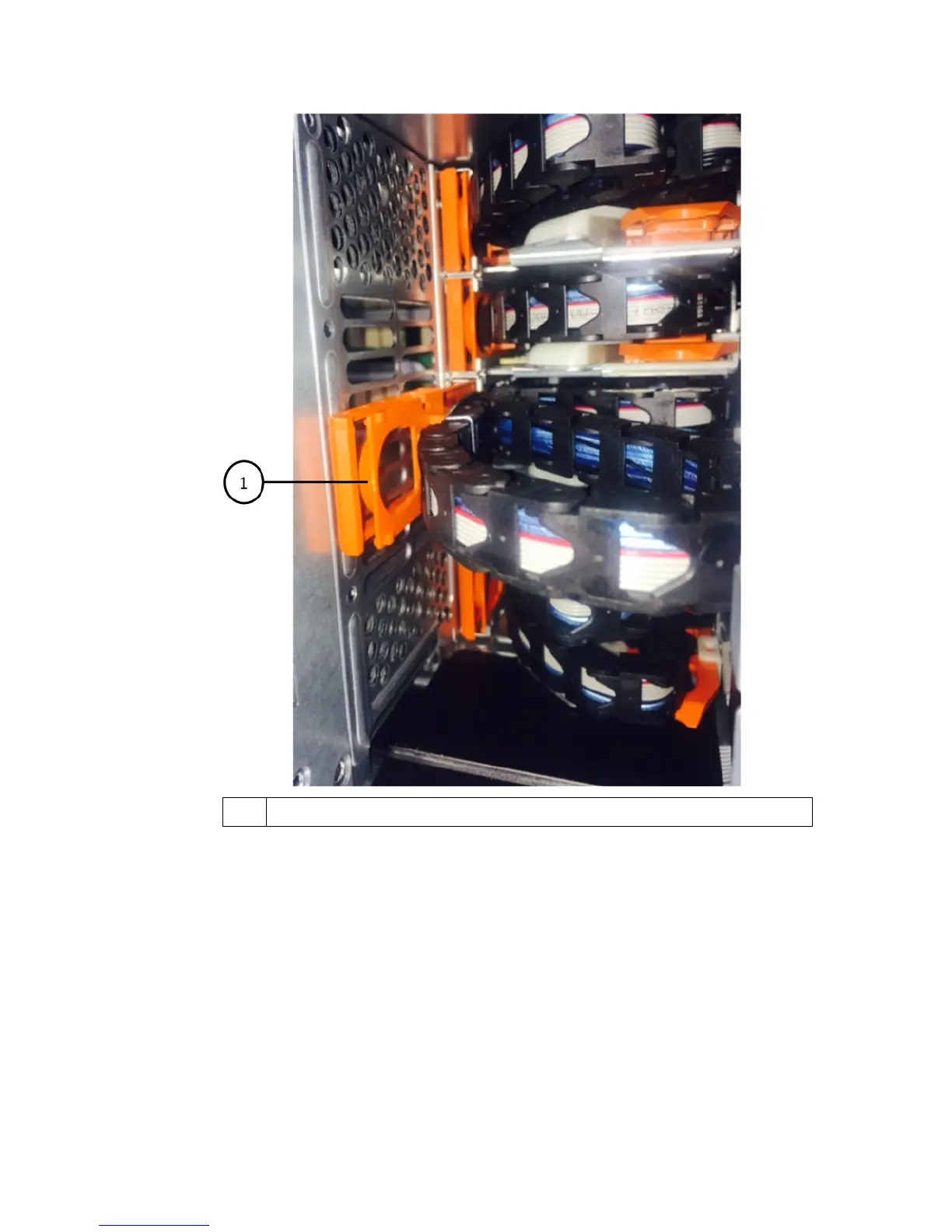

1 Orange ring on the vertical bracket
b. Disconnect the vertical connector (connected to the midplane) by gently pressing on the center
of the orange ring and pulling the left side of the cable out of the enclosure.
c. To unplug the cable chain, carefully pull your finger toward you approximately 1 inch (2.5
cm), but leave the cable chain connector within the vertical bracket.
6. Follow these steps to disconnect the other end of the cable chain:
a. Using a flashlight, locate the orange ring on the end of the cable chain that is attached to the
horizontal bracket in the enclosure.
The figure shows the horizontal connector on the right and the cable chain disconnected and
partially pulled out on the left side.
24
| Service Guide for DS460C, DS224C and DS212C Disk Shelves

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
