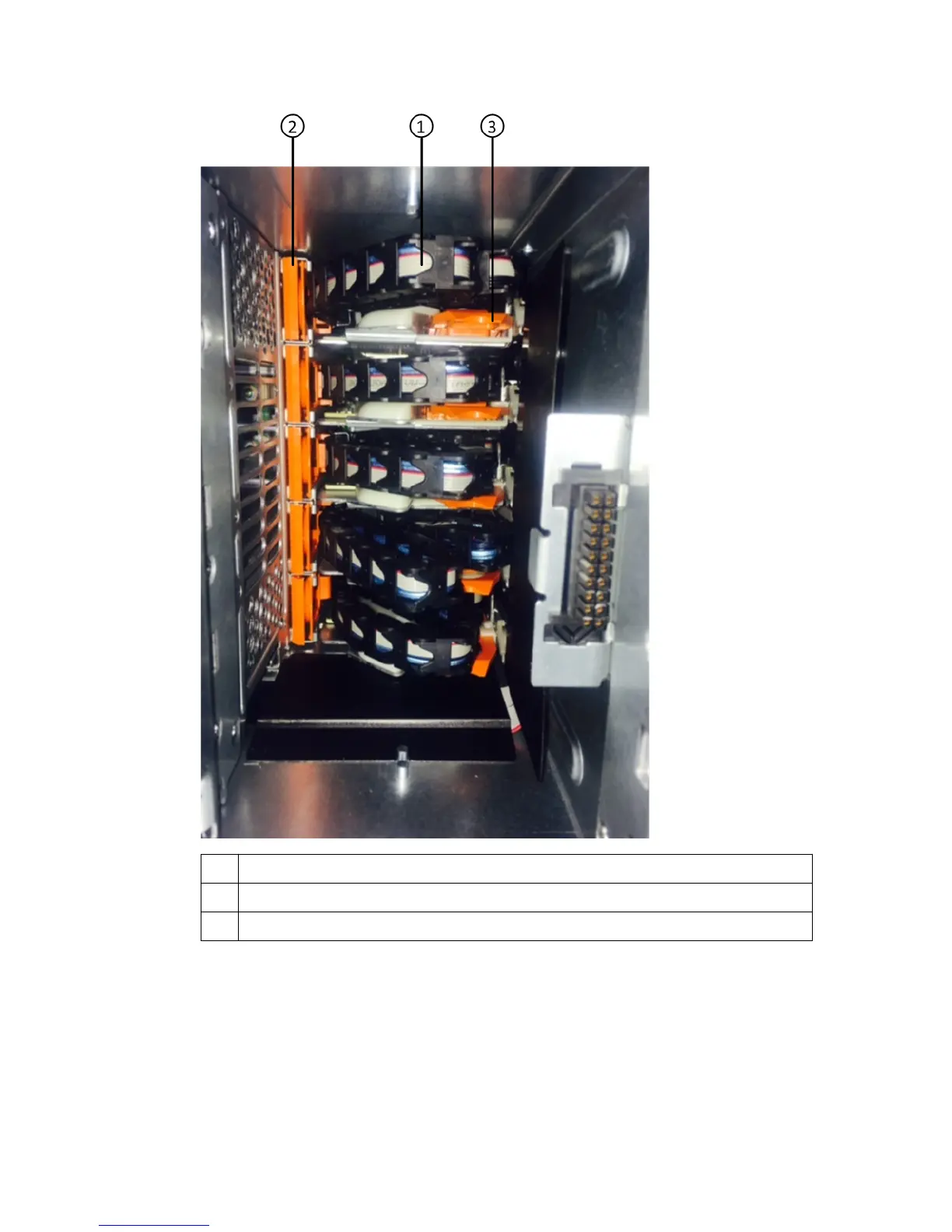

1 Cable chain
2 Vertical connector (connected to the midplane)
3 Horizontal connector (connected to the drive drawer)
The top cable chain is attached to drive drawer 1. The bottom cable chain is attached to drive
drawer 5.
4. Use your finger to move the cable chain on the right side to the left.
5. Follow these steps to disconnect any of the right cable chains from its corresponding vertical
bracket.
a. Using a flashlight, locate the orange ring on the end of the cable chain that is connected to the
vertical bracket in the enclosure.
Replacing a drive drawer in a DS460C disk shelf |
23

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
