NetApp DS224C Service Guide

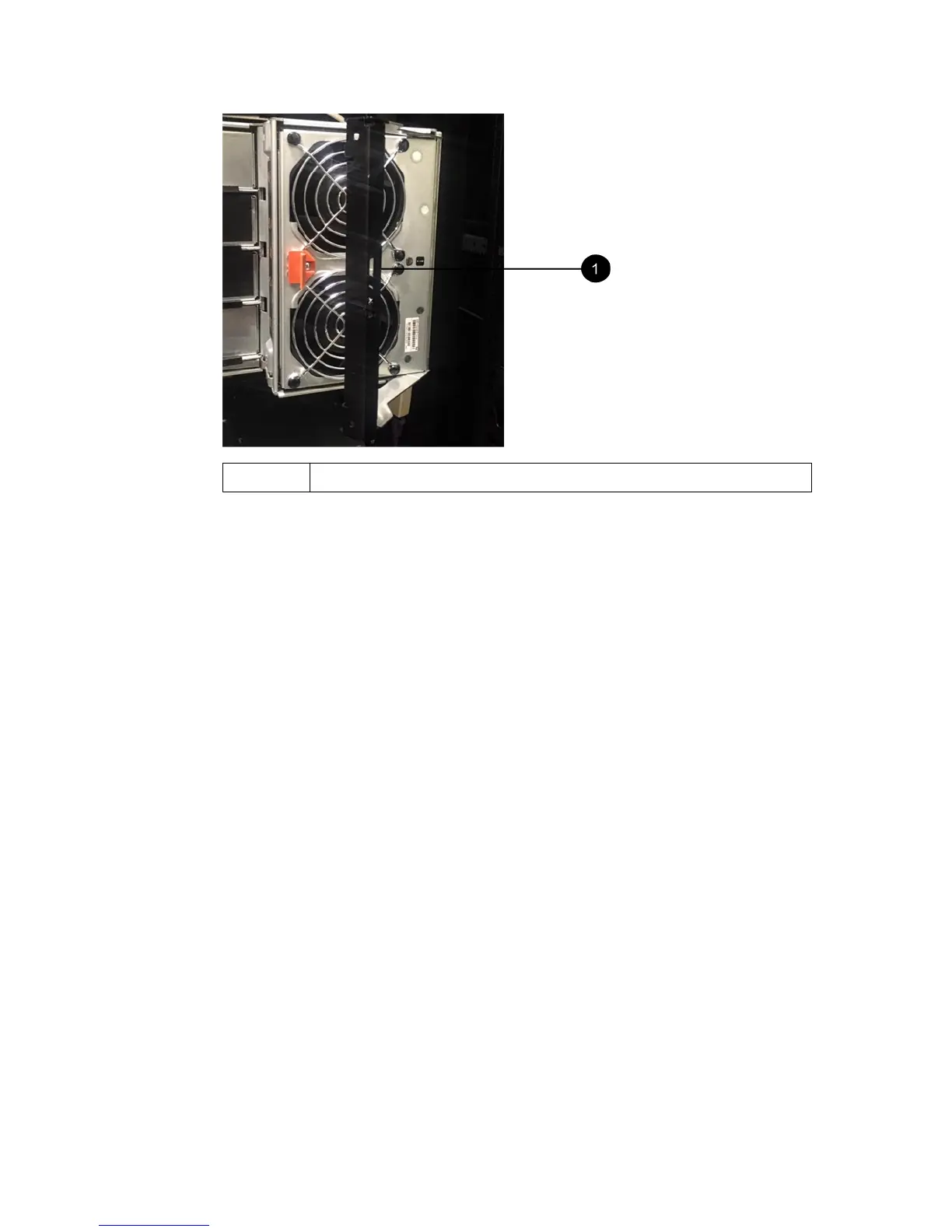

1 fan module handle
b. Using the handle, pull the fan module out of the drive shelf, and set it aside.
3. Manually determine which of the five cable chains to disconnect.
The figure shows the right side of the drive shelf with the fan module removed. With the fan
module removed, you can see the five cable chains and the vertical and horizontal connectors for
each drawer. The callouts for drive drawer 1 are provided.
22 | Service Guide for DS460C, DS224C and DS212C Disk Shelves

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
