NetApp DS224C Service Guide

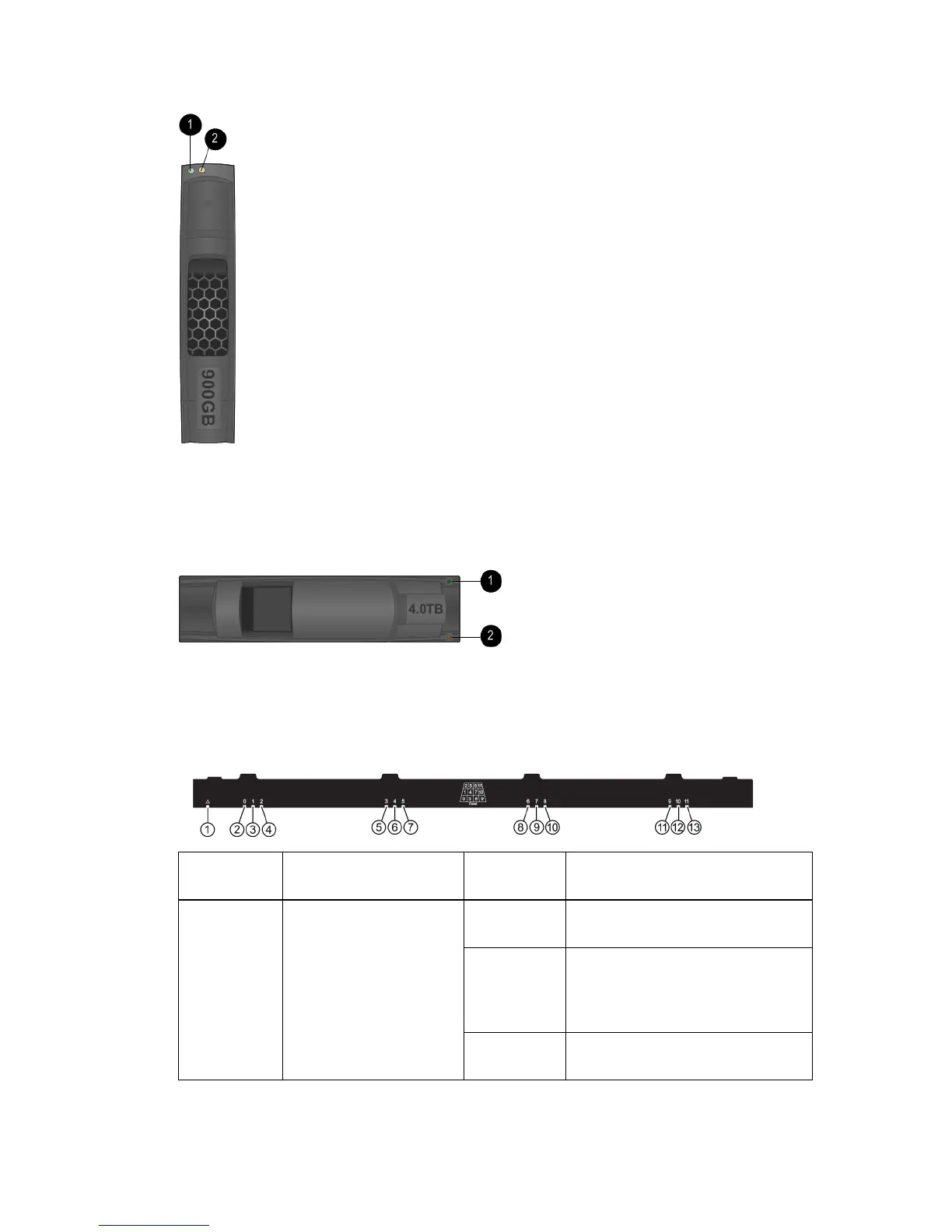

The following illustration is for a disk drive used in a DS212C disk shelf.
DS212C disk shelves use 3.5-inch disk drives or 2.5-inch disk drives in carriers arranged horizontally
in the disk shelf.
Disk drive LEDs for DS460C disk shelves
The following illustration and table describes the drive activity LEDs on the drive drawer and their
operational states:
Location
LED Status
indicator
Description
1 Attention: Drawer
attention for each drawer.
Solid amber A component within the drive
drawer requires operator attention.
Off No drive or other component in the
drawer requires attention and no
drive in the drawer has an active
locate operation.
Blinking
amber
A locate drive operation is active for
any drive within the drawer.
Monitoring disk shelf LEDs | 49

NetApp DS224C Specifications

General

Form Factor	2U
Drive Bays	24
Drive Type	2.5-inch SAS
Maximum Raw Capacity	368 TB
Connectivity	12 Gbps SAS
Power Supply	Redundant power supplies
Cooling	Redundant fans
Storage Type	HDD and SSD
Compatibility	NetApp FAS and AFF systems
