14
NetComm Wireless 4GM3W User Guide
www.netcommwireless.com

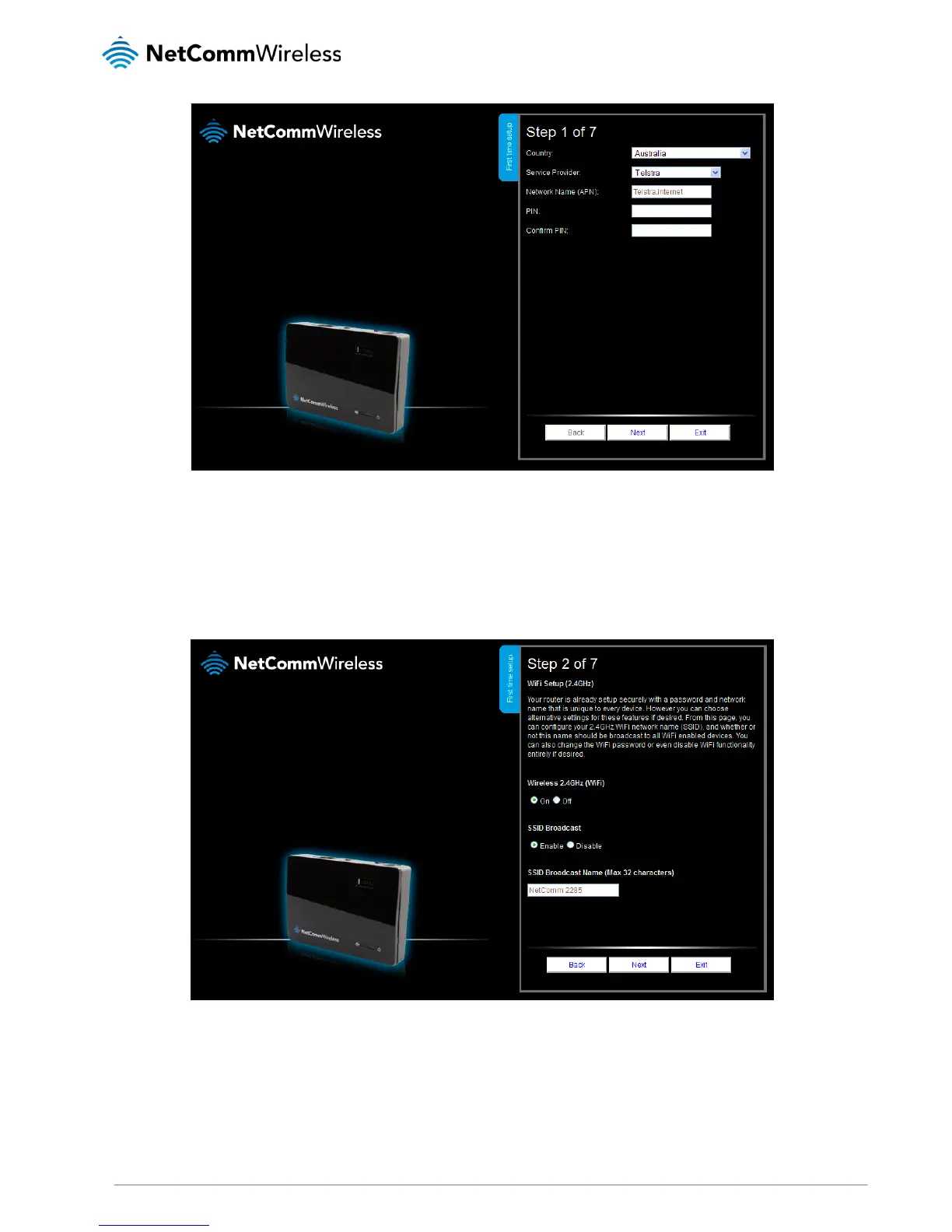

Step 2
In this step, you are able to configure the 2.4GHz WiFi network. By default, the 2.4GHz wireless radio is on but you may turn it off
by setting the
Wireless 2.4GHz (WiFi) option to Off. If you intend to use the wireless function, set the SSID Broadcast option to
Enable if you want the wireless network to show up when devices perform a network scan when in range, or set it to Disable to
hide the network from scans. Finally, if you wish to customise the network name, enter it into the
SSID Broadcast Name field. The
network name may not exceed 32 characters.
Click the Next button to continue.

Table of Contents

Other manuals for NetComm 4GM3W

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NetComm 4GM3W and is the answer not in the manual?

NetComm 4GM3W Specifications

Operating Environment IconOperating Environment
operating temperature0-40°C
operating humidity10%-90% non-condensing
storage temperature-10-70°C
storage humidity0%-95% non-condensing
Power IconPower
dc input voltage5V/2A
Ports & Interfaces IconPorts & Interfaces
usb 2.0 port1 x USB 2.0 port
switchable wan/lan port1 x 10/100/1000 Mbps
wps button1 x WPS button
reset button1 x Reset button
3g-wan switch1 x 3G-WAN switch
Wireless IconWireless
dual band wi-fi2.4GHz/5GHz
2.4ghz bandIEEE 802.11n
5ghz bandIEEE 802.11ac
concurrent wi-fi2.4GHz & 5GHz
Weight and Dimensions IconWeight and Dimensions
dimension98mm (L) x 68mm (W) x 20.5mm (H)
