NetComm 4GM3W User Manual

www.netcommwireless.com
NetComm Wireless 4GM3W User Guide
15

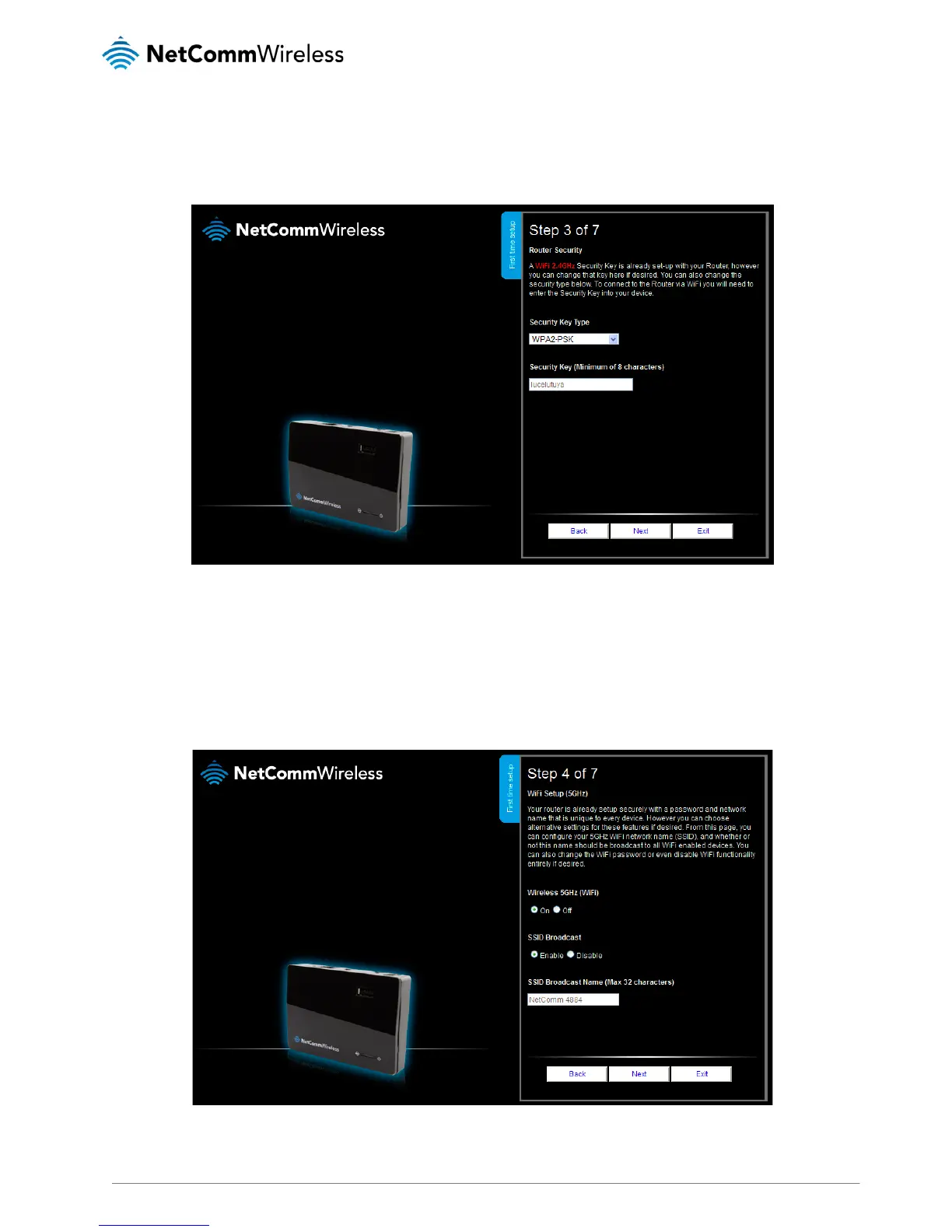

Step 3
The router is preconfigured with wireless security on the 2.4GHz radio but if you wish to change these settings use the Security
Key Type drop down menu to select a wireless security key type and then enter a security key in the Security Key field.
Click the Next button to continue.
Step 4
In this step, you are able to configure the 5GHz WiFi network. By default, the 5GHz wireless radio is on but you may turn it off by
setting the
Wireless 5GHz (WiFi) option to Off. If you intend to use the wireless function, set the SSID Broadcast option to Enable if
you want the wireless network to show up when devices perform a network scan when in range, or set it to
Disable to hide the
network from scans. Finally, if you wish to customise the network name, enter it into the
SSID Broadcast Name field. The network
name may not exceed 32 characters.
Click the Next button to continue.

NetComm 4GM3W Specifications

Operating Environment

operating temperature	0-40°C
operating humidity	10%-90% non-condensing
storage temperature	-10-70°C
storage humidity	0%-95% non-condensing

Power

dc input voltage	5V/2A

Ports & Interfaces

usb 2.0 port	1 x USB 2.0 port
switchable wan/lan port	1 x 10/100/1000 Mbps
wps button	1 x WPS button
reset button	1 x Reset button
3g-wan switch	1 x 3G-WAN switch

Wireless

dual band wi-fi	2.4GHz/5GHz
2.4ghz band	IEEE 802.11n
5ghz band	IEEE 802.11ac
concurrent wi-fi	2.4GHz & 5GHz

Weight and Dimensions

dimension	98mm (L) x 68mm (W) x 20.5mm (H)
