Click on Save to store your setting or Undo to discard your changes.

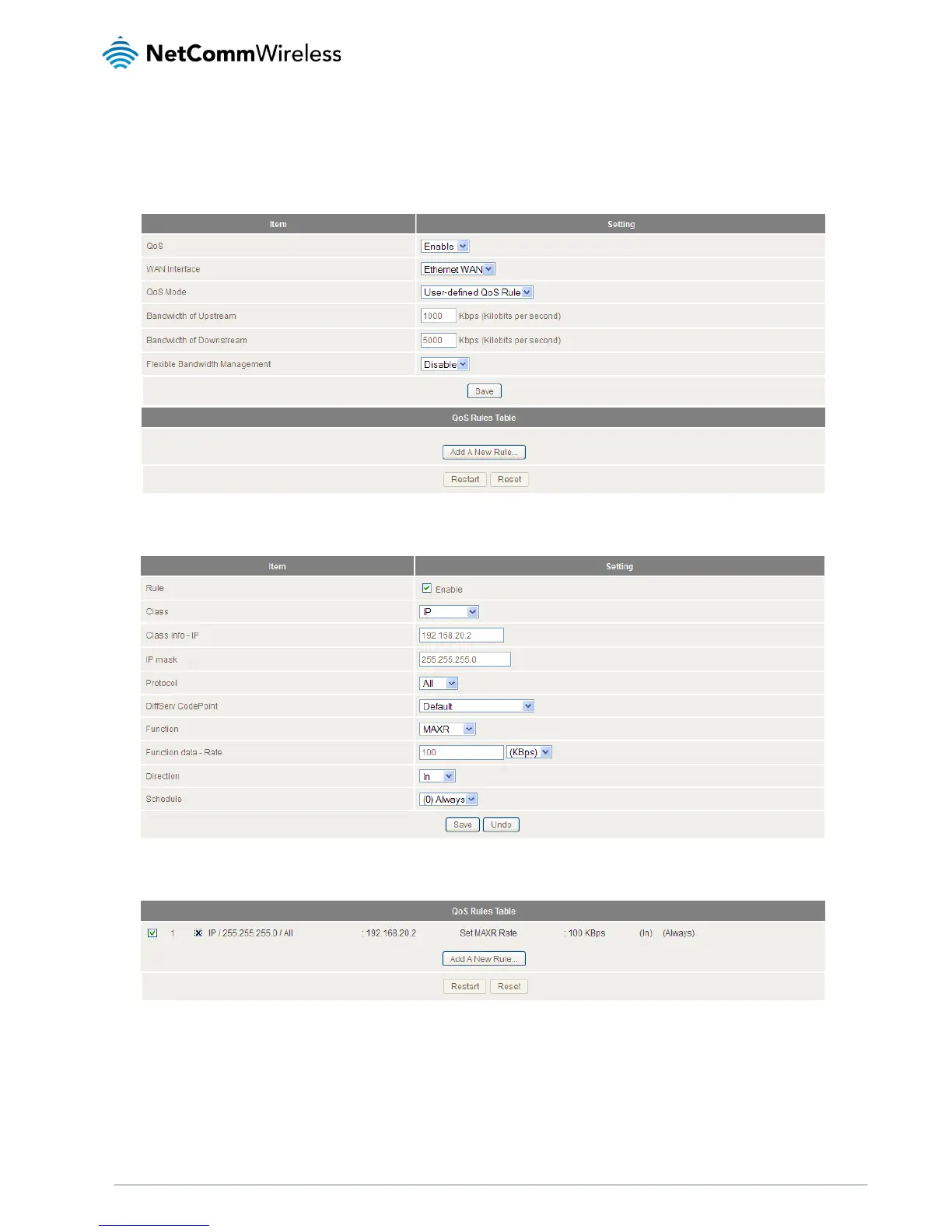

QoS configuration examples
Example 1.
To limit downstream bandwidth on LAN port 1 (IP address 192.168.20.2) to 100 KBps:
Click the Add a New Rule button. Enter the settings as below. When the direction is set to “IN”, the QoS function checks packets
coming from the WAN side to the LAN side.
The QoS rule is displayed in the QoS Rules Table at the bottom of the screen. The machine on LAN port 1 is now always
restricted to a maximum download speed of 100 KBps at all times.
To disable the rule, remove the check from the checkbox on the left. To delete the rule, click the X in the box after the rule
number.
