Hardware Overview
11
AC1900, N900, and N450 WiFi Cable Data Gateways
Back Panel of the AC1900 WiFi Cable Data Gateway
The back panel contains ports, connectors, and a recessed button.
l
Power adapter input
Ethernet LAN ports
Coaxial cable connector
Reset button
USB port

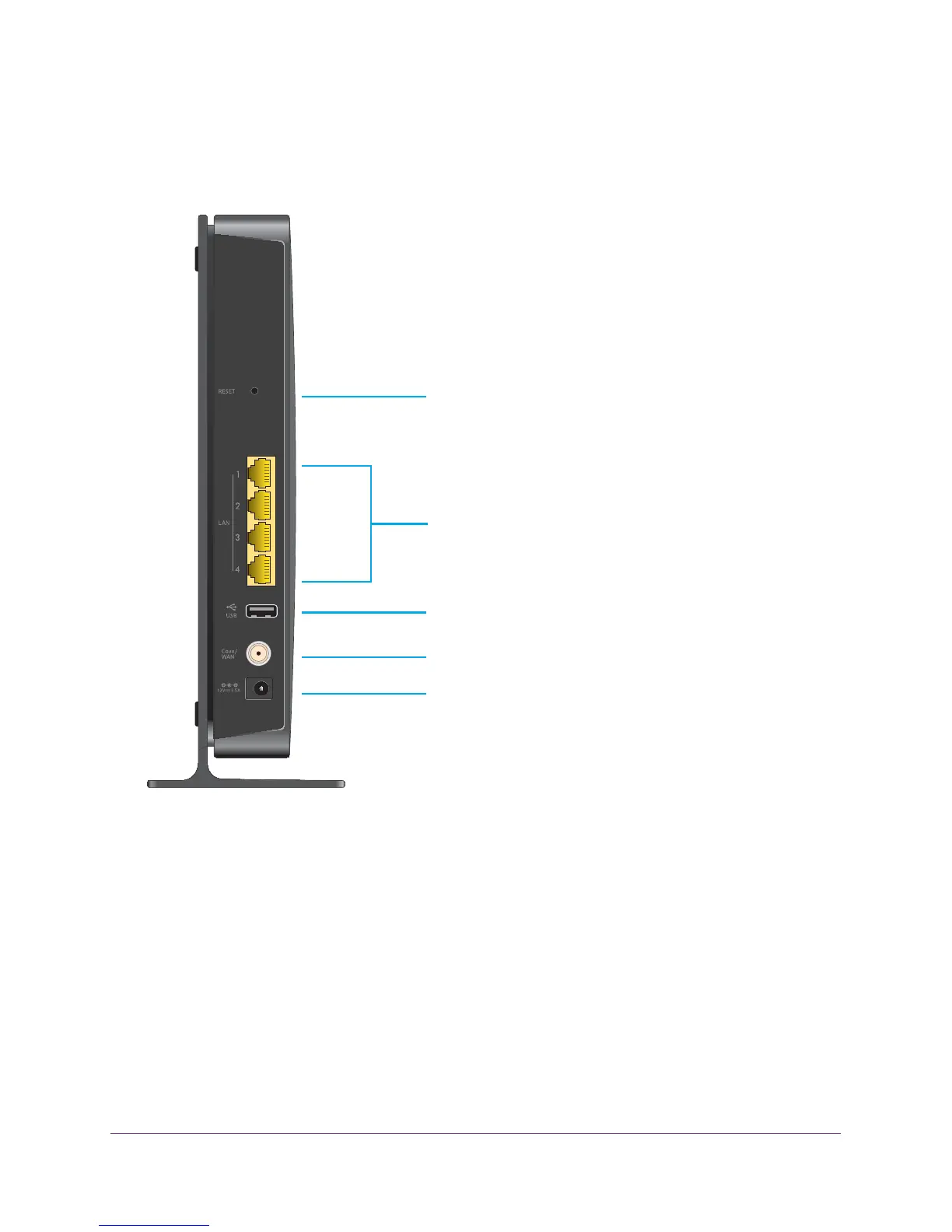

Figure 2. Back panel connections and button of the AC1900
The back panel includes the following components, viewed from top to bottom:
• Recessed Reset button. T
o set the gateway to the original factory settings, press and
hold the Reset button for at least seven seconds. For more information, see Return the
WiFi Cable Data Gateway to Its Factory Default Settings on page 94.
• Four 10/100/1000 Mbps Ethernet LAN ports. Use these ports to connect local computers
to the Ethernet LAN of the cable data gateway.
• USB port.
The USB 2.0 port lets you connect a USB hard drive or flash drive to the cable
data gateway.
• Coaxial cable connector.
Attach a coaxial cable to the cable service provider’s
connection.
• Power input connector.
Attach the power adapter cable to this input.
