NETGEAR CM500 User Manual

Manage and Monitor
15
CM500 High Speed Cable Modem

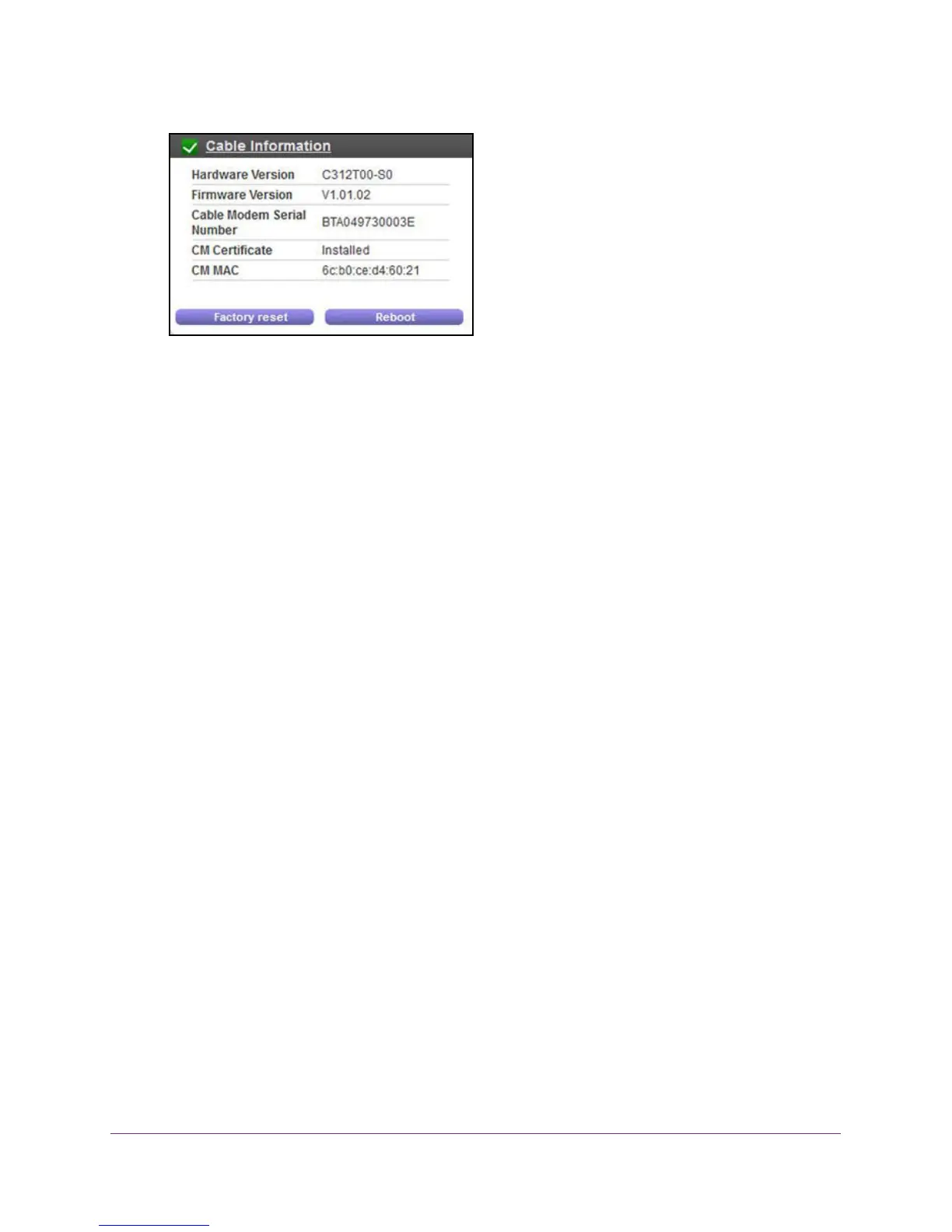

The Cable Information screen displays the following:
• Hardware Version. The version of the cable modem model.
• Firmware
Version. The version of the cable modem firmware.
• Cable Modem Serial Number. The serial number of the cable modem.
• CM Certificate
. The status of the cable modem certificate. If Not installed displays as
the status, contact your cable Internet provider.
• CM MAC
. The MAC address of the cable modem.
For information about using the Reboot
button, see Reboot the Cable Modem on page 17.
For information about using the Factory reset button, see Reset the Cable Modem to
Factory Default Settings on page 18.
View and Clear Event Logs
Event logs capture important cable modem events.
 To view and clear the event logs:
1. Launch a web browser from a computer that is attached over an Ethernet cable to the
cable modem or from a computer that is connected to a WiFi router that is attached over an
Ethernet cable to the cable modem.
2. Type http://192.168.100.1.
A login screen displays.
3. Enter the cable modem user name and password.
The user name is admin
.
The default password is password
. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADVANCED > Administration > Event Log.

NETGEAR CM500 Specifications

General

Supported network protocols	IPv6
Flash memory	8 MB
Internal memory	128 MB
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	185 mm
Height	124 mm
Weight	280 g
