Model EN104
TP
/EN106
TP
/EN108
TP
Ethernet Hub Installation Guide
LEDs
The table below describes the activity of the LEDs.
Normal/Uplink Push Button
The Normal/Uplink push button allows you to select Normal (MDI-X) wiring
for direct PC connection. The push button also allows you to select Uplink
(MDI) wiring for connection to a hub or a switch through port 4 on the Model
EN104
TP
hub, port 6 on the Model EN106
TP
hub, or port 8 on the Model
EN108
TP
hub. This uplink configuration eliminates the need to use a crossover
cable. The other 10BASE-T ports are permanently configured for normal wiring
for connection to a PC.
Rear Panel

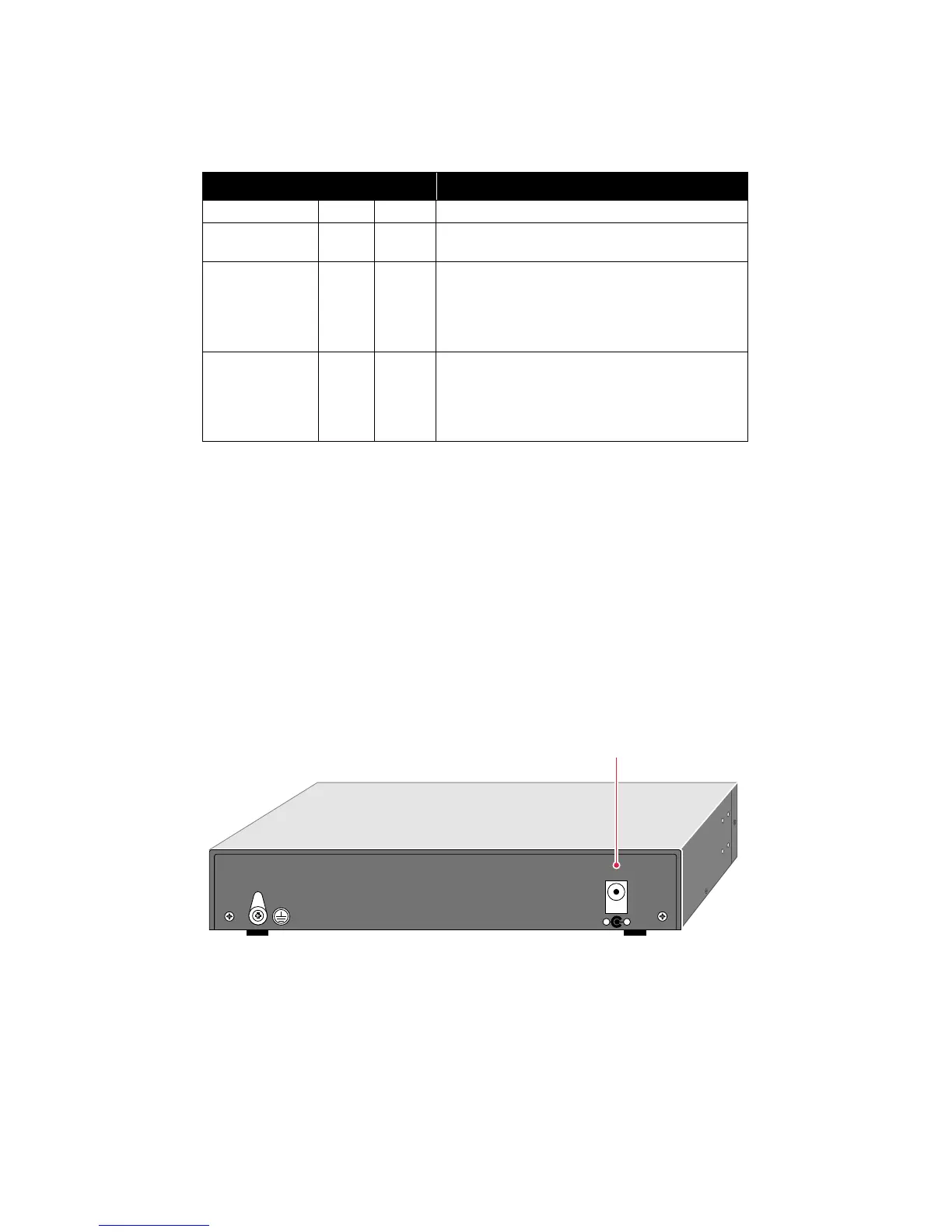

The rear panel of the hub has a ground clip and a receptacle for the power
adapter.
Label Color Activity Description
Pwr (Power) Green On Power is supplied to the hub.
Col (collision) Amber Blinking Data collision is occurring on the network. Note
that occasional collisions are normal.
Link
(located on the
top left corner of
each vista
10BASE-T port)
Green On The link between this port and the connected
device is good.
Rx
(located on the
top right corner
of each vista
10BASE-T port)
Green Blinking There is incoming data on the port.
8730FA
5Vdc 800mA
Power
receptacle
– +
