NETGEAR EN104TP User Manual

Model EN104
TP
/EN106
TP
/EN108
TP
Ethernet Hub Installation Guide
Cascade the Hub

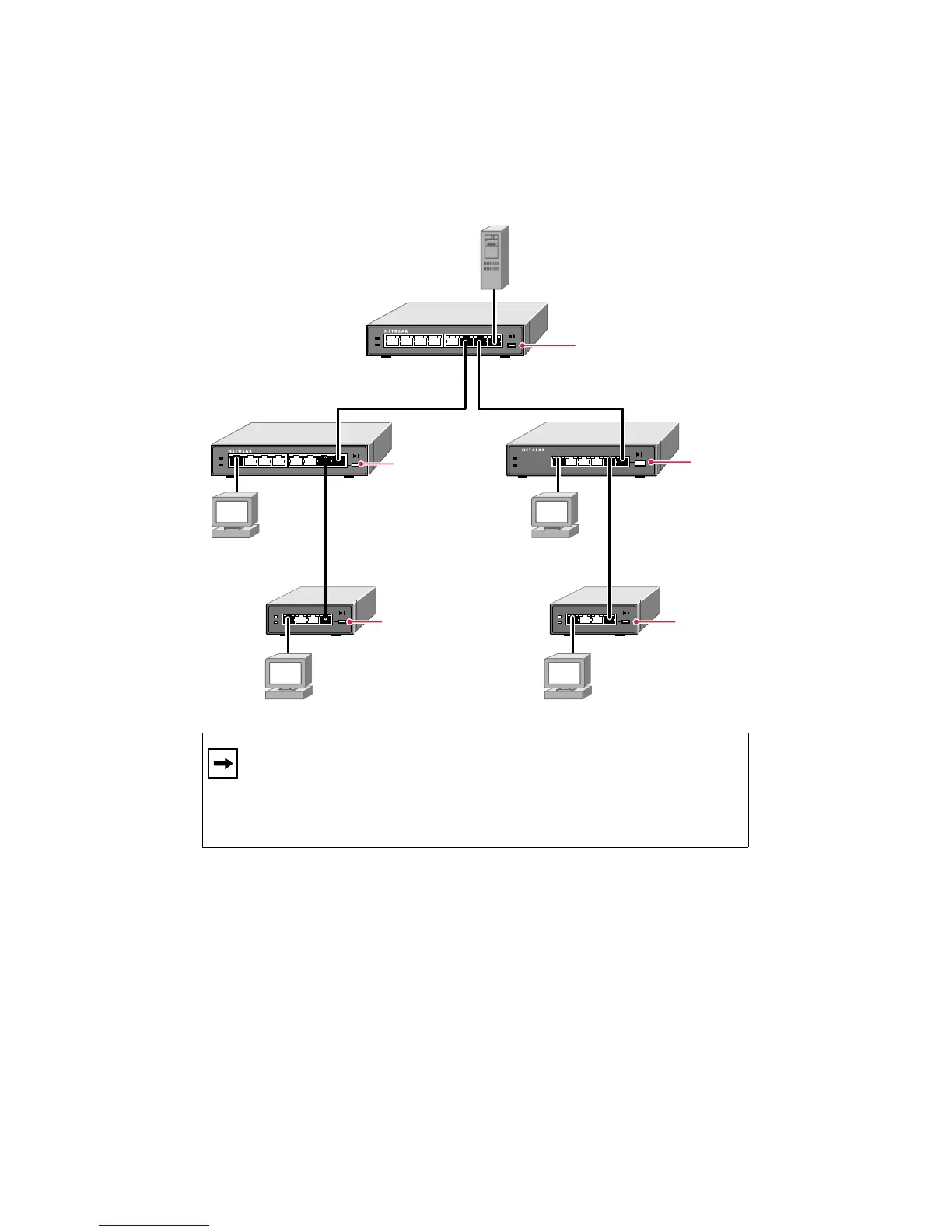

The following illustration shows cascading hubs together in a hierarchical star
through the 10BASE-T ports and indicates the setting of the Normal/Uplink
push button on each hub.
Note:
Ethernet specifications limit the number of hubs with twisted
pair links in any communication path to five, as shown in the example.
When PC “A” communicates with PC “B,” the communication path
goes from hub 4 to hub 2, to hub 1, to hub 3, and then to hub 5 (or five
paths).
123456
Link/Rx Partition
Normal/Uplink
Pwr
Col
EN106
TP
10 BASE-T HUB
1234 5678
Pwr
Col
EN108
TP
10 BASE-T HUB
1234 5678
Pwr
Col
EN108
TP
10 BASE-T HUB
8727FA
AB
Model EN108
TP
hub
Model EN104
TP
hubs
Model EN108
TP
hub
Model EN106
TP
hub
Uplink
Normal
UplinkUplink
Uplink
