NETGEAR GS724TPv2 Hardware Installation Guide

Front panel
The switch provides twenty four 10/100/1000BASE-T RJ-45 PoE+ ports and two SFP
ports.

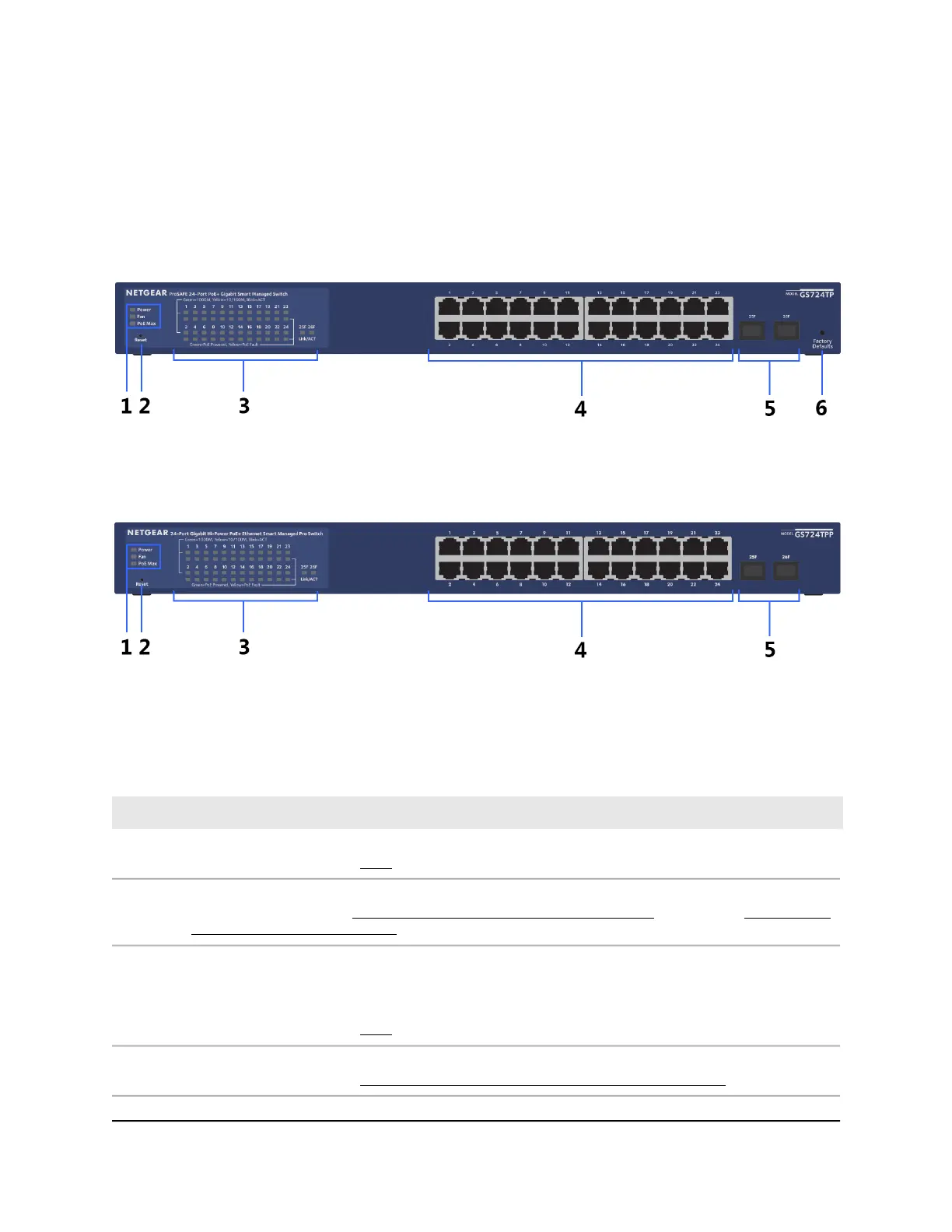

The following figure shows the front panel of model GS724TPv2.
Figure 1. Model GS724TPv2 front panel
The following figure shows the front panel of model GS724TPP.
Figure 2. Model GS724TPP front panel
Table 1. Front panel components
DescriptionNumber
Power, Fan, and PoE Max LEDs.
For more information, see LEDs on page 14.
1
Reset button.
For more information, see Single-function Reset button (model GS724TPv2) on page 16 or Multi-function
Reset button (model GS724TPP) on page 17.
2
48 LEDs associated with the 24 Ethernet ports. For each port, the associated upper LED functions as
the combined speed and activity LED and the associated lower LED indicates the PoE status.
2 LEDs associated with the 2 SFP ports. For each port, the associated LED functions as the combined
link and activity LED.
For more information, see LEDs on page 14.
3
24 independent 10/100/1000BASE-T RJ-45 PoE ports.
For more information, see RJ-45 Ports for 10/100/1000BASE-T Ethernet connectivity on page 15.
4
Hardware Installation Guide13Hardware Overview
24-Port Gigabit (Hi-Power) PoE+ Ethernet Smart Managed Pro Switch with 2 SFP Ports

NETGEAR GS724TPv2 Specifications

General

Brand	NETGEAR
Model	GS724TPv2
Category	Switch
Language	English
