Hardware Description
The following sections describe the switch hardware features.
Front Panel
The switch provides twenty-four or forty-eight 10/100/1000BASE-T RJ-45 PoE+ ports and four SFP ports.

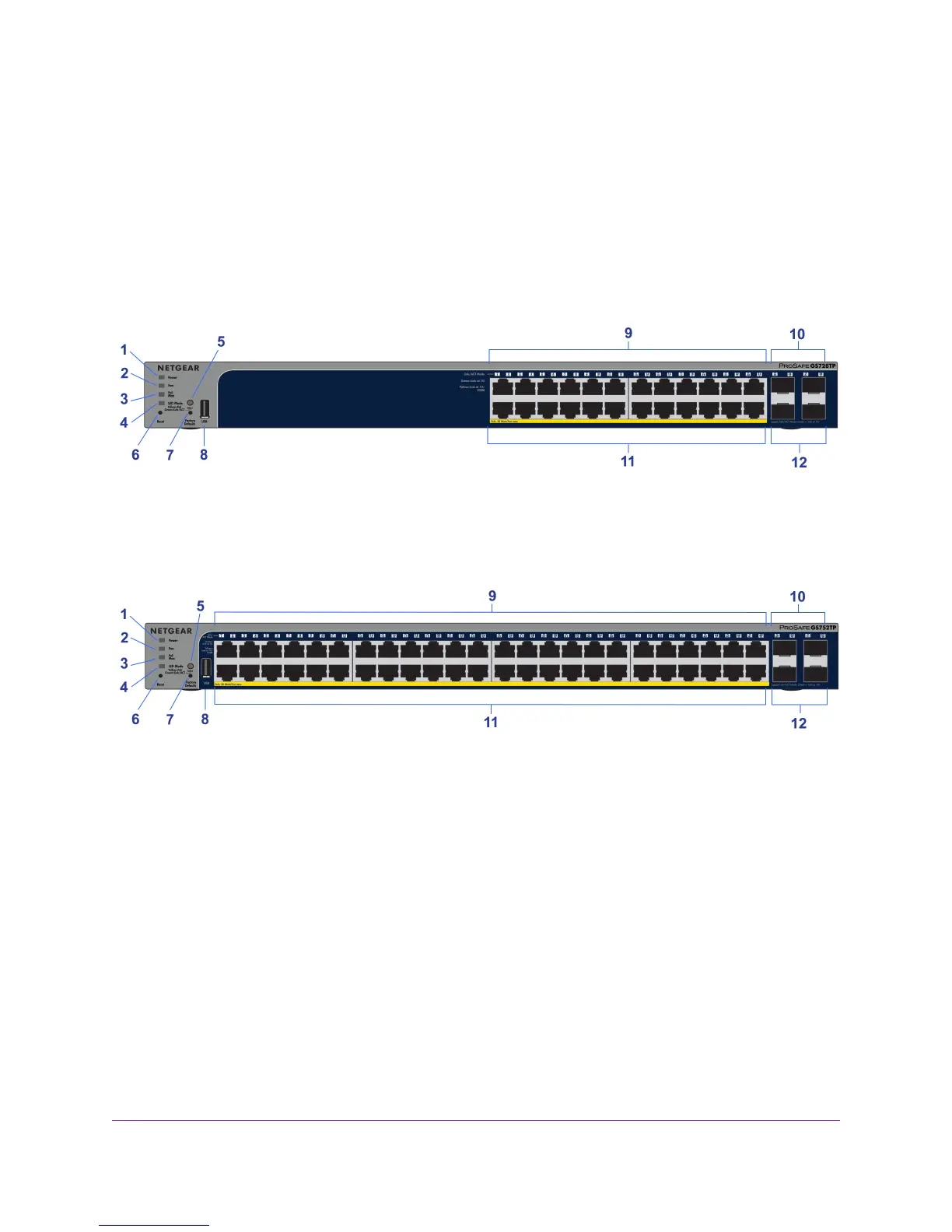

The following figures show the front panels. (The front panels do not state the v2 model designation.)
Figure 1. Front panel model GS728TPv2 (also applies to model GS728TPPv2)
Models GS728TPv2 and GS728TPPv2 provide twenty-four 10/100/1000BASE-T RJ-45 PoE+ ports and
four SFP ports.
Figure 2. Front panel model GS752TPv2 (also applies to model GS752TPP)
Models GS752TPv2 and GS752TPP provide forty-eight 10/100/1000BASE-T RJ-45 PoE+ ports and four
SFP ports.
Hardware Overview
10
24-Port and 48-Port Gigabit PoE+ Smart Managed Pro Switches with 4 SFP Ports
