Security
49
N150 4-Port Wireless Router JNR1010
3. Click Add to add a service.

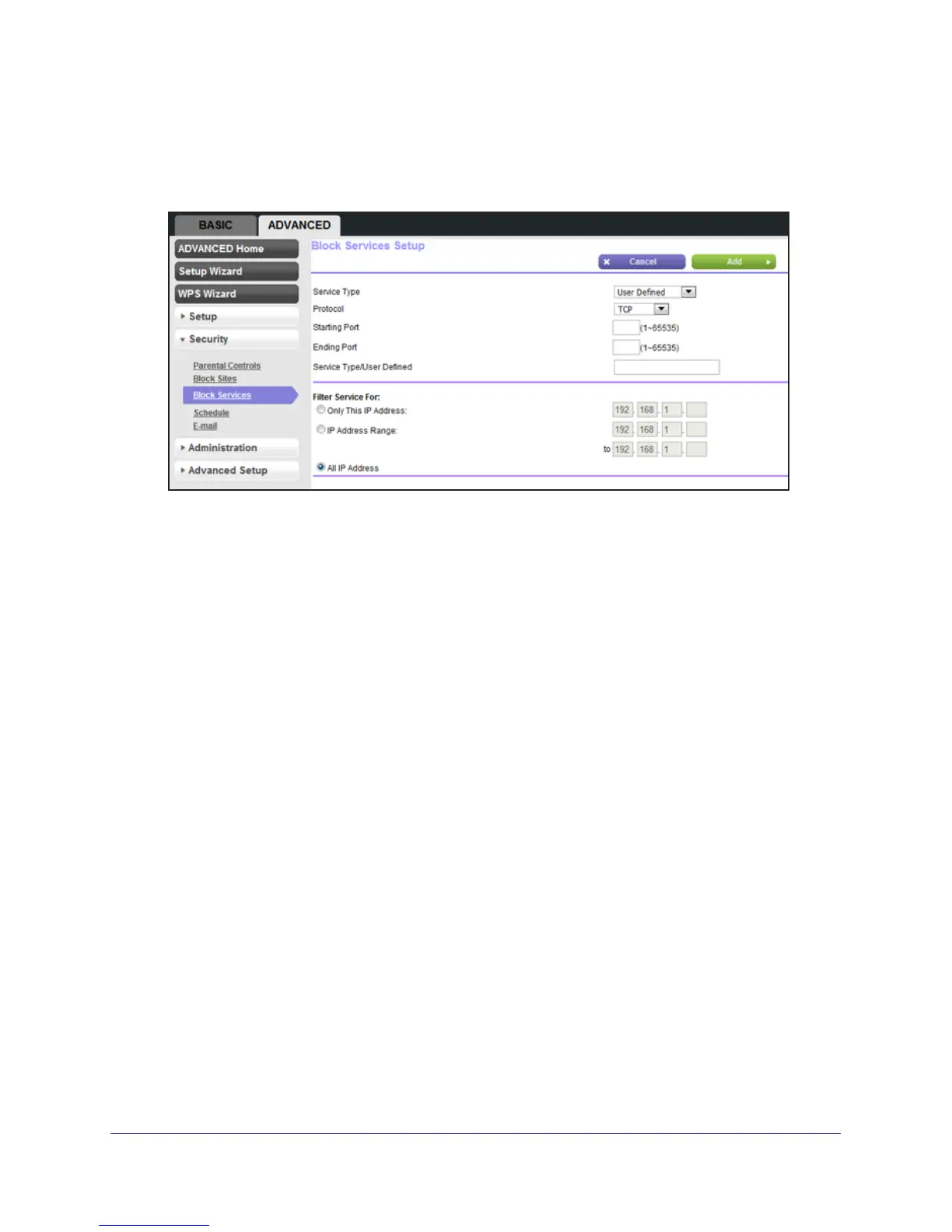

The Block Services Setup screen displays:
4. From the Service Type list, select the application or service to allow or block.
The list already displays several common services, but you are not limited to these
choices.
To add any additional services or applications that do not already appear, select
User Defined.
5. If you know that the application uses either
TCP or UDP, select the appropriate protocol.
If you are not sure, select Both.
6. Enter the starting and ending port numbers.
If the application uses a single port number, enter that number in both fields.
7. Select the radio button for the IP address configuration you want to block and enter the IP
addresses.
You can block the specified service for a single computer, a range of computers with
consecutive IP addresses, or all computers on your network.
8. Click Add to enable your Block Services Setup selections.
