3. Loosen the two captive screws on the power module.
4. Remove the power module from the power module slot by pulling on the extraction handle.
Connect a Redundant Power Supply
Each switch has a redundant power supply (RPS) connector at the rear of the switch next to
the power receptacle.
You can connect an external UL-listed DC-to-DC power supply unit to the switch to provide
redundant power in case the primary power supply fails. To connect an (RPS) unit to the
switch, first turn off the switch. When the power is off, you can remove the cover plate and
connect the RPS unit to the switch. After all connections are completed, apply power to the
switch.
Connect Equipment to the Switch
You can connect devices, a Gigabit Ethernet module, and/or a console to the switch.
RJ-45 Ports
The switch uses Auto Uplink™ technology, which enables you to attach devices using either
straight-through or crossover cables. Use a Category 5 (Cat5) unshielded twisted-pair (UTP)
cable terminated with an RJ-45 connector.
Note: Ethernet specifications limit the cable length between the switch and
the attached device to 328 feet (100 meters).

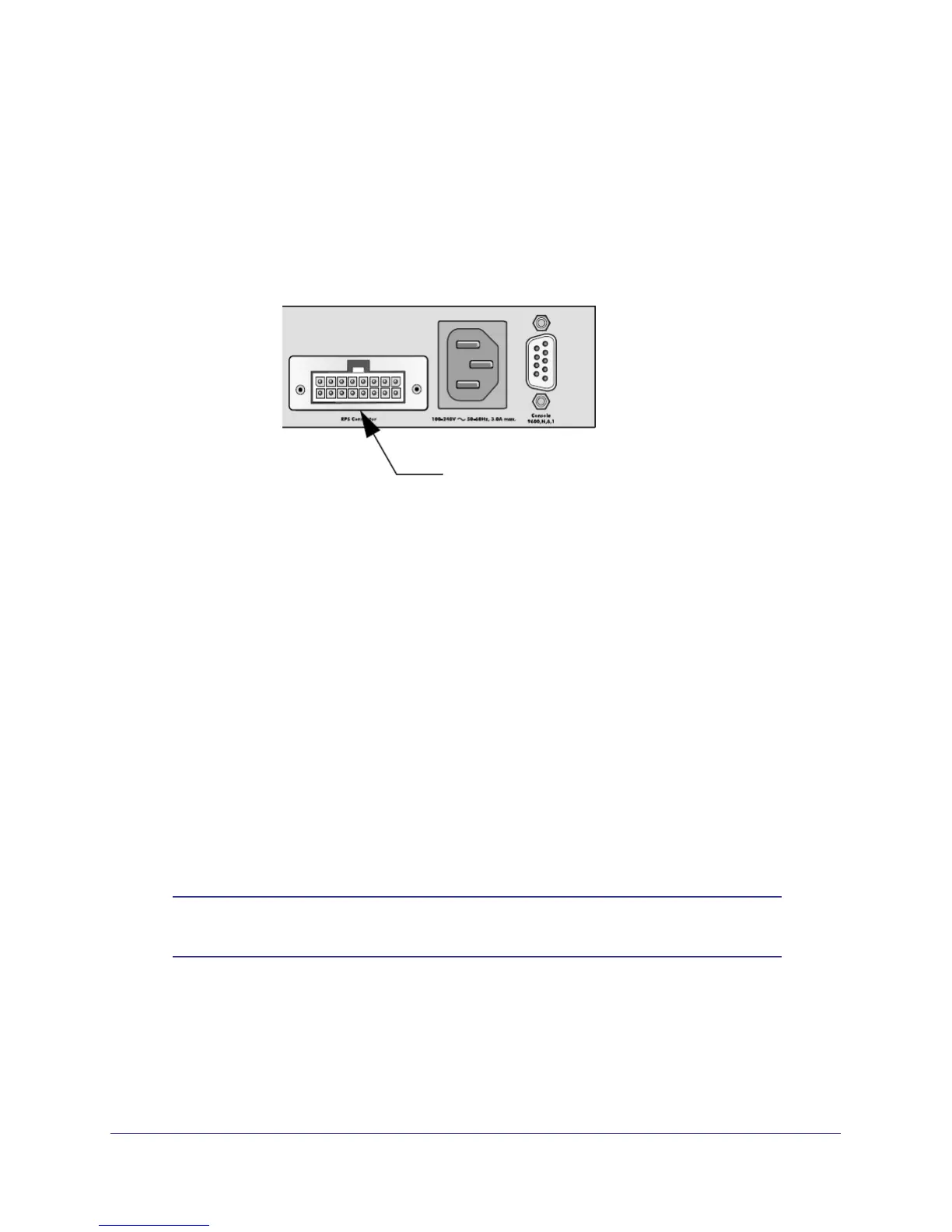

Redundant power
supply jack
