Hardware Installation
13
NETGEAR Managed Stackable Switch M5300 Series
Install the Switch
You can install the switch on a flat surface or in a standard 19-inch rack.
Install the Switch on a Flat Surface
The switch ships with four self-adhesive rubber footpads. Stick one rubber footpad on
each of the four concave spaces on the bottom of the switch. The rubber footpads
cushion the switch against shock and vibrations.
Install the Switch in a Rack
Note: You need the 19-inch rack-mount kit supplied with your switch.
To install the switch in a rack:
1. Attach the supplied mounting brackets to the side of the switch.
2. Use the provided Phillips head screws to fasten the brackets to the sides of the
switch.

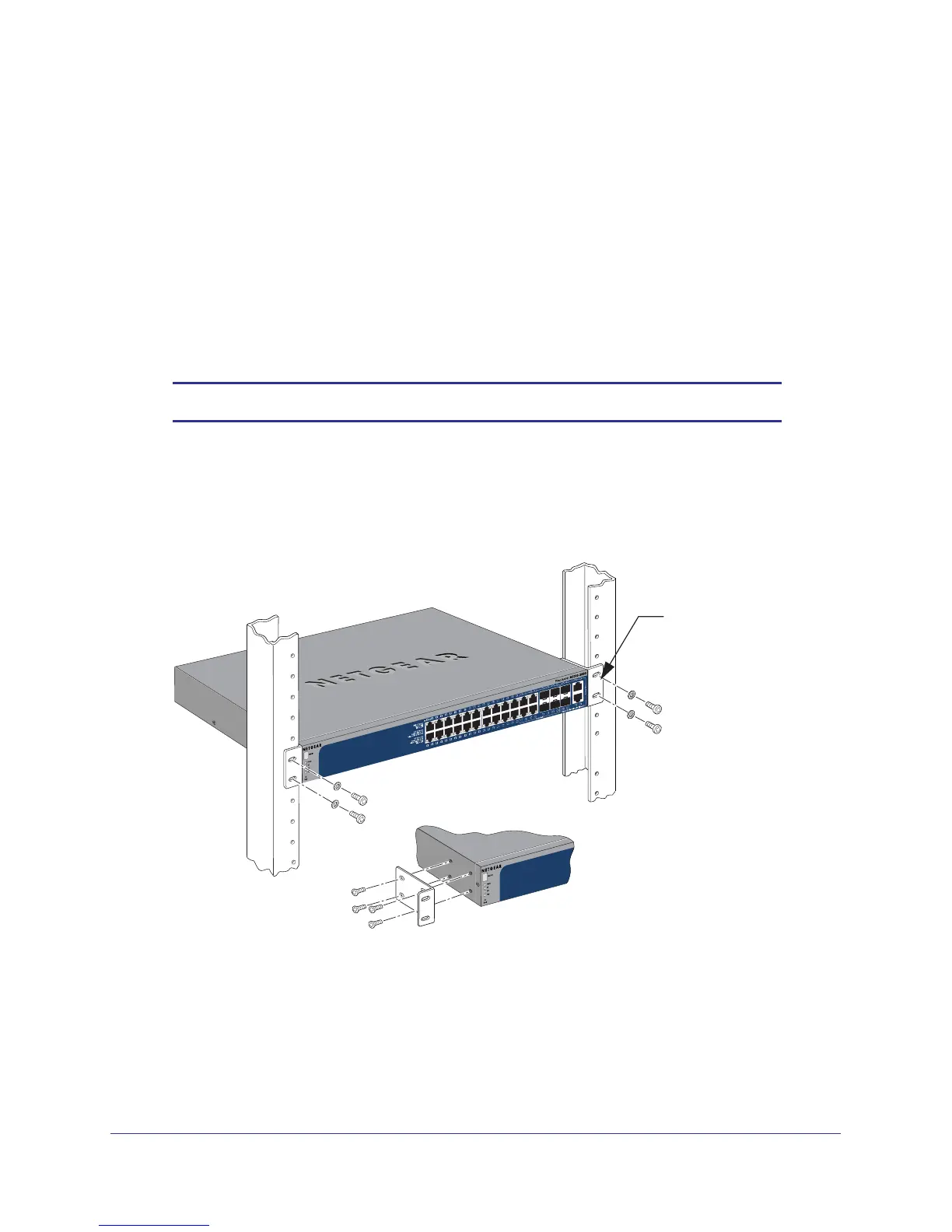

Mounting
bracket
3. Tighten the screws with a No. 1 Phillips screwdriver to secure each bracket.
4. Align the bracket and rack holes. Use two pan-head screws with nylon washers to
fasten each bracket to the rack.
5. T
ighten the screws with a No. 2 Phillips screwdriver to secure the switch in the rack.
