Manage Your Network
82
Nighthawk AC1900 WiFi Cable Modem Router
8. To stop a ping test, click the Abort Test button.
9. T
o clear the results from the display, click the Clear Results button.

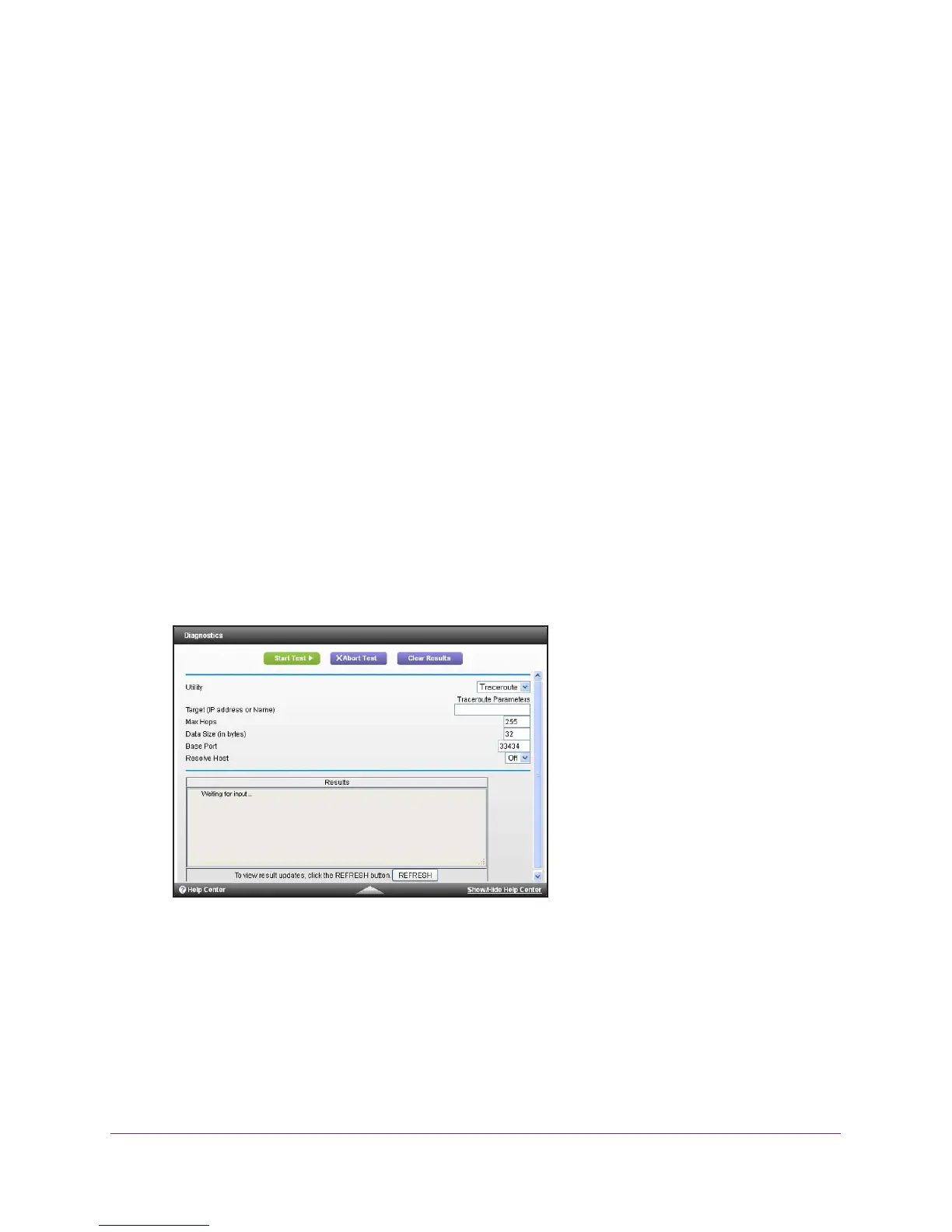

Run the Traceroute Utility
To display the route and measure transit delays of packets across an IP, run the traceroute
utility.
To run a traceroute test:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://routerlogin.net or http://192.168.0.1.
A login screen displays.
3. Enter the modem router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Administration > Diagnostics.
5. In the Utility list, select T
raceroute.
6. Specify the following parameters for the traceroute utility:
• T
arget. The IP address or host name of the computer you are tracing.
• Max Hops.
The maximum number of hops to allow when tracing the route.
• Data Size.
The input the size (in bytes) of the packet.
• Base Port.
The port number to send the packet to.
• Resolve Host. Select On to resolve the host name to the IP address.
7. Click the Start T
est button.
To Next Page
