4. 1G LAN Ethernet ports numbered 2–5. LAN ports 2 and 3 can form one link
aggregation group (LAG). LAN ports 4 and 5 can form another LAG.
5. Power LED
6. Reset button
7. DC Power connector
Orbi Pro WiFi 6 satellite model SXS80 hardware overview

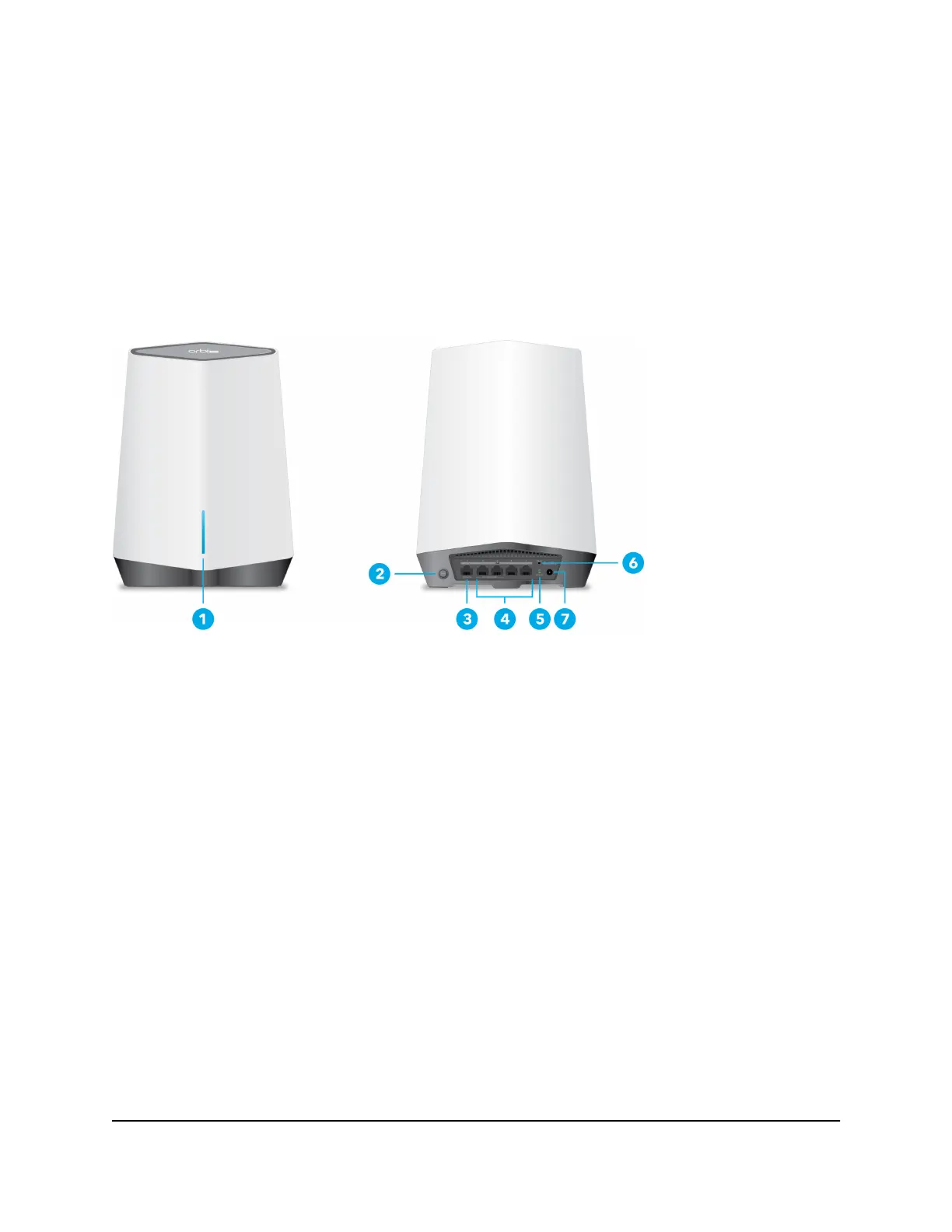

Figure 2. Orbi Pro WiFi 6 satellite model SXS80, front and back views
1. Bar LED
2. Sync button (also used for WPS connection)
3. 2.5G/1G LAN Ethernet port 1
4. 1G LAN Ethernet ports 2–5. LAN ports 2 and 3 can form one link aggregation group
(LAG). LAN ports 4 and 5 can form another LAG.
5. Power LED
6. Reset button
7. DC Power connector
LED behavior
When you sync an Orbi Pro WiFi 6 satellite to the Orbi Pro WiFi 6 router, the LED behavior
for a satellite that comes in an Orbi Pro WiFi 6 system is different from the LED behavior
for add-on Orbi Pro WiFi 6 satellites.
User Manual14Overview and Setup
Orbi Pro WiFi 6 AX6000 Router Model SXR80 and Orbi Pro WiFi 6 AX6000 Satellite Model SXS80
