VLAN use case 1: Orbi Pro WiFi 6 router in
a home environment
This use case describes how to configure the VLANs on an Orbi Pro WiFi 6 router and
satellite in a home environment. Almost all settings that you need for this configuration
are already preset on the Orbi Pro WiFi 6 router and satellite. The satellite is connected
to the router over a WiFi backhaul.

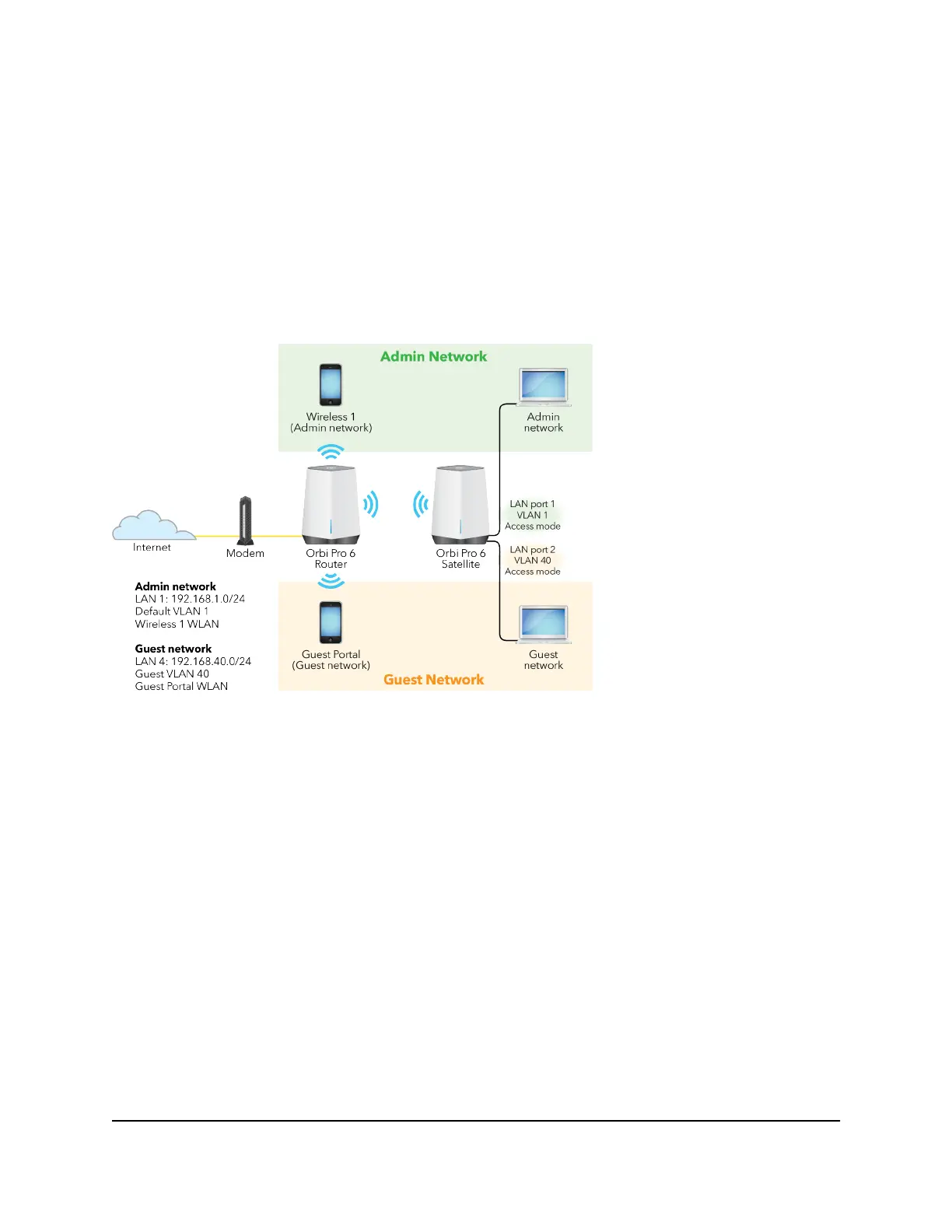

Figure 8. Orbi Pro WiFi 6 router as a router in a home environment
The procedure in this section does the following:
•
Uses the LAN 1, preset Default VLAN 1, Wireless 1 WLAN, and the satellite’s LAN 1
port for the Admin network.
•
Sets the LAN 4, preset Guest VLAN 40, Guest Portal WLAN, and the satellite’s LAN 2
port for the Guest network.
•
Sets the port mode for the following LAN ports to Access mode:
-
Satellite’s LAN port 1. This port is cabled to a desktop that is used for admin
tasks such accessing the router web interface.
- Satellite’s LAN port 2. This port is cabled to a desktop that is available to guests.
User Manual222How to Use VLANs in Your
Network
Orbi Pro WiFi 6 AX6000 Router Model SXR80 and Orbi Pro WiFi 6 AX6000 Satellite Model SXS80

NETGEAR Orbi Pro WiFi 6 AX6000 Specifications

General

MU-MIMO	Yes
OFDMA	Yes
Beamforming	Yes
VPN Support	Yes
Parental Controls	Yes
Guest Network	Yes
WiFi Technology	802.11ax
Coverage	Up to 6, 000 sq ft
Frequency Bands	2.4GHz, 5GHz
Antenna	Internal antennas
Security	WPA3
Ethernet Ports	4 x 1G LAN, 1 x 2.5G WAN
