NETGEAR Orbi RBR20 User Manual

Set up an Ethernet backhaul connection
Your Orbi satellite automatically connects wirelessly to your Orbi router or another Orbi
satellite to create a wireless backhaul, or you can use an Ethernet cable to connect your
satellite to your router or another satellite to create a wired backhaul connection.
Before you set up an Ethernet backhaul connection, make sure that you update the
firmware on all your Orbi devices.

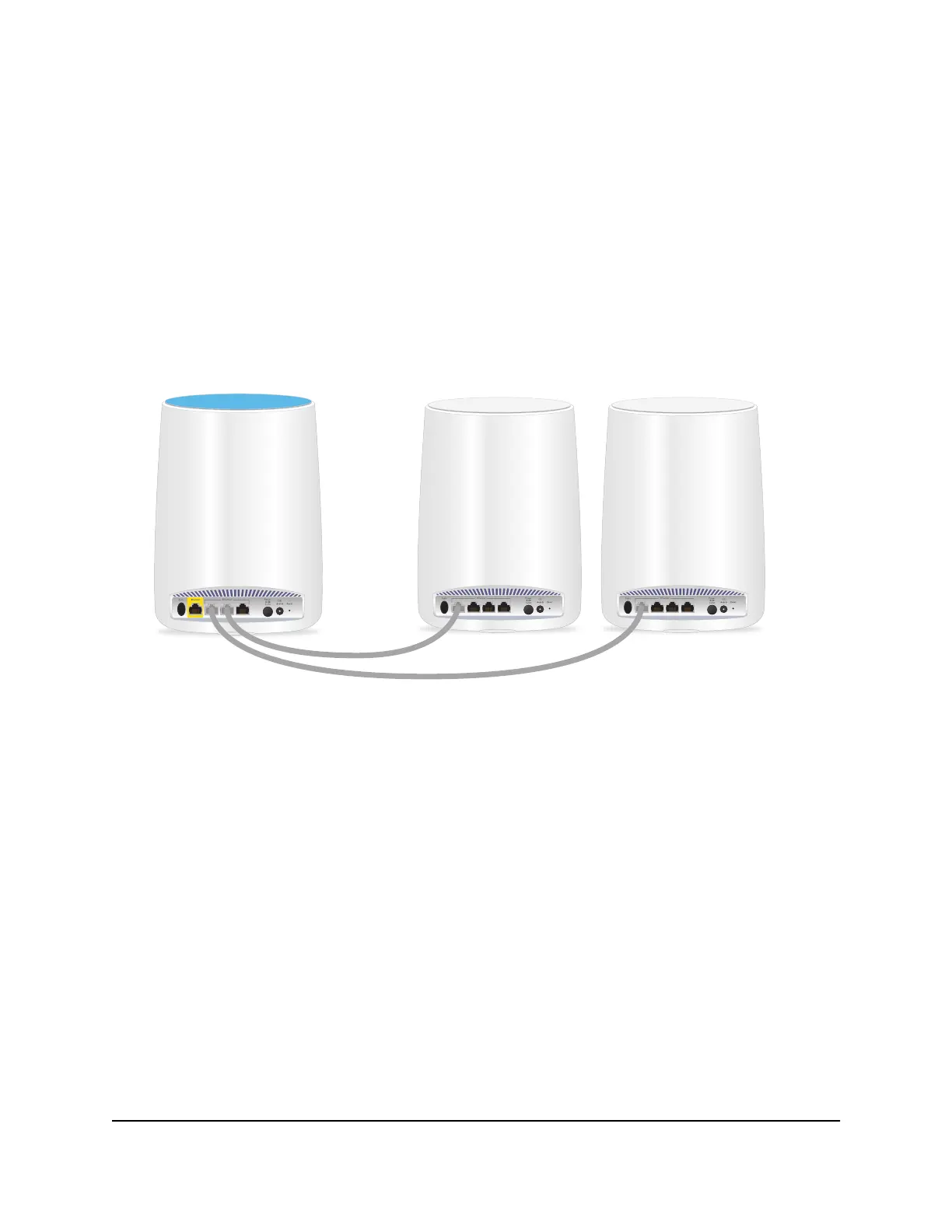

The following image shows how to connect your Orbi satellites to your Orbi router to
create an Ethernet backhaul connection.
Figure 1. Satellites connected to the router’s Ethernet ports
User Manual14Overview
Orbi WiFi System

NETGEAR Orbi RBR20 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
3G/4G USB modem compatibility	-
Modulation	1024-QAM
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	2200 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN (RJ-45) ports	2
Security algorithms	WPA, WPA-PSK
Routing protocols	RIP-1, RIP-2
Data link protocols	TCP/IP, DHCP, PPPoE, PPTP, Bigpond, Dynamic DNS, UPnP, SMB
Product type	Tabletop router
Product color	White
Antennas quantity	4
Processor frequency	710 MHz
Output current	1.5 A
Output voltage	12 V
AC input voltage	230 V
Power source type	AC
AC input frequency	50 Hz
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60.96 mm
Width	142.24 mm
Height	167.64 mm
