NETGEAR R6100 User Manual

Getting Started
14
R6100 WiFi Router
NETGEAR genie Setup
NETGEAR genie runs on any device with a web browser. Installation with basic setup takes
about 15 minutes to complete.
 To use NETGEAR genie to set up your router:
1. T
urn the router on by pressing the On/Off button.
2. Make sure that your computer or wireless device is connected to the router with an Ethernet
cable (wired) or wirelessly with the preset security settings listed on the bottom label.
3. Launch your Internet browser
.
• The first time you set up the Internet connection for your router, the browser goes to
http://www

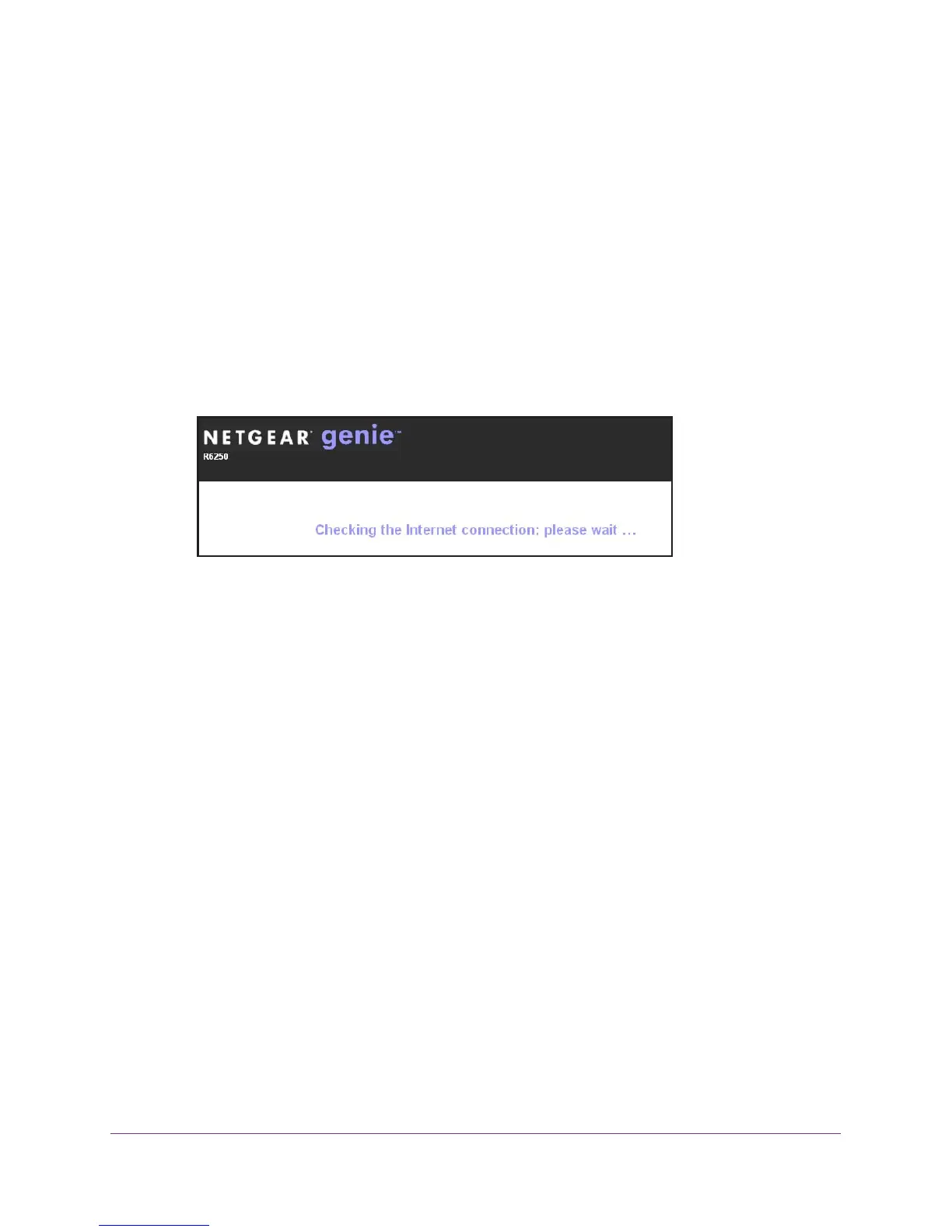

.routerlogin.net, and the NETGEAR genie screen displays.
• If you already used the NETGEAR genie, type http://www.routerlogin.net in the
address field for your browser to display the NETGEAR genie screen. See Use
NETGEAR genie after Installation on page 15.
4. Follow the onscreen instructions.
NETGEAR genie guides you through connecting the router to the Internet.
If the browser cannot display the web page:
• Make sure that the computer is connected to one of the four LAN Ethernet ports or
wirelessly to the router.
• Make sure that the router has full power
, and that its WiFi LED is lit.
• T
o make sure that the browser does not cache the previous page, close and reopen the
browser.
• Browse to http://www
.routerlogin.net.
• If the computer is set to a static or fixed IP address (this is uncommon), change it to
obtain an IP address automatically from the router.
If the router does not connect to the Internet:
1. Review your settings. Make sure that you have selected the correct options and typed
everything correctly
.
2. Contact your ISP to verify that you have the correct configuration information.
3. Read Chapter 9, Troubleshooting. If problems persist, register your NETGEAR product and
contact NETGEAR technical support.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
