NETGEAR R6100 User Manual

Advanced Settings
85
R6100 WiFi Router
Wireless Access Point

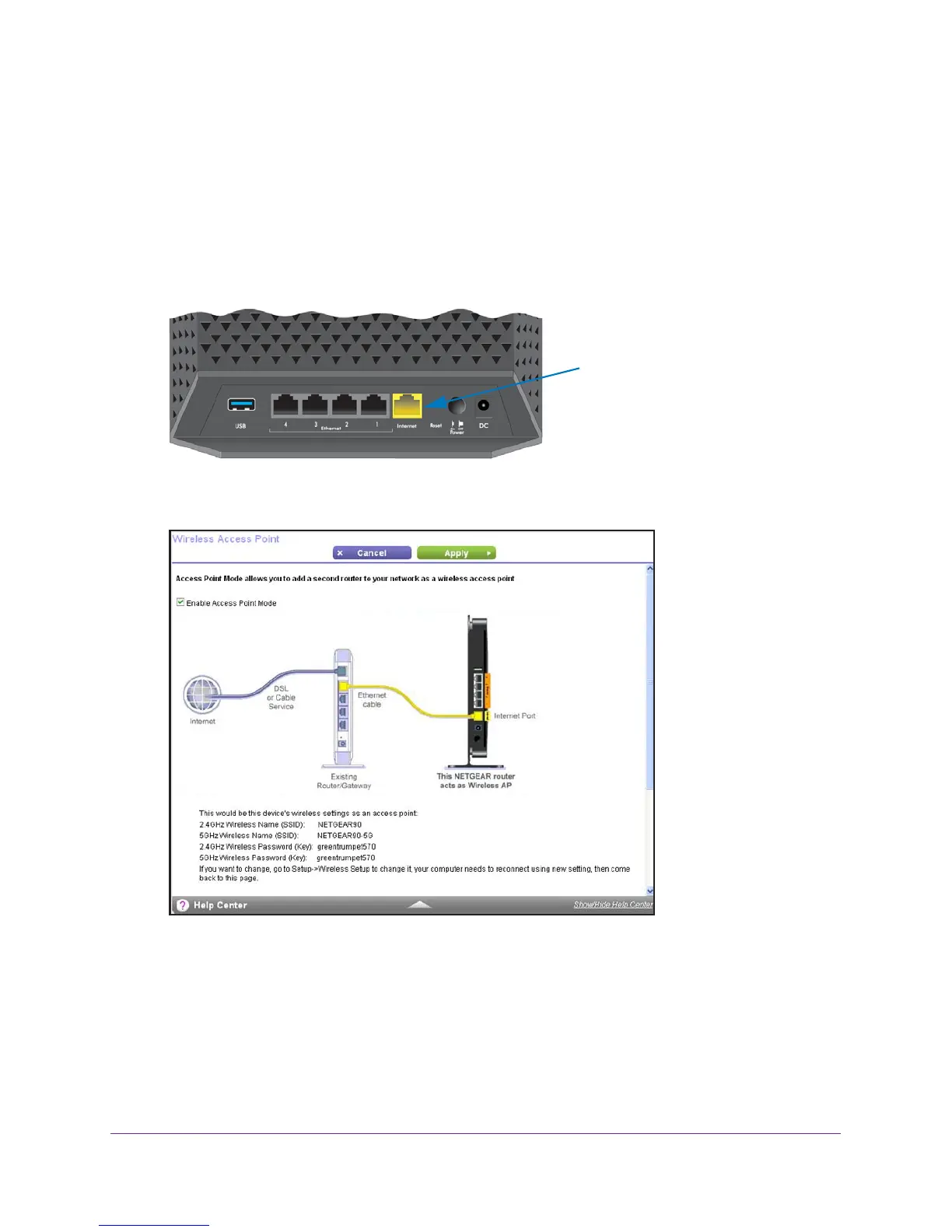

You can set up the router to run as an access point (AP) on the same local network as
another router.
 To set up the router as an AP:
1. Use an Ethernet cable to connect the Internet port of this router to a LAN port in the
other router
.
Cable this port to a LAN port
on the other router
2. Select ADVANCED > Advanced Setup > Wireless AP.
3. Select the Enable Access
Point Mode check box.
4. Scroll down and select the check box for the IP address setting that you want to use:
• Get dynamically from existing router.
The other router on the network assigns an
IP address to this router while this router is in AP mode.
• Use fixed IP address (not recommended). Use this setting if you want to manually
assign a specific IP address to this router while it is in
AP mode. Using this option
effectively requires advanced network experience.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
