NETGEAR R6100 User Manual

Administration
72
R6100 WiFi Router

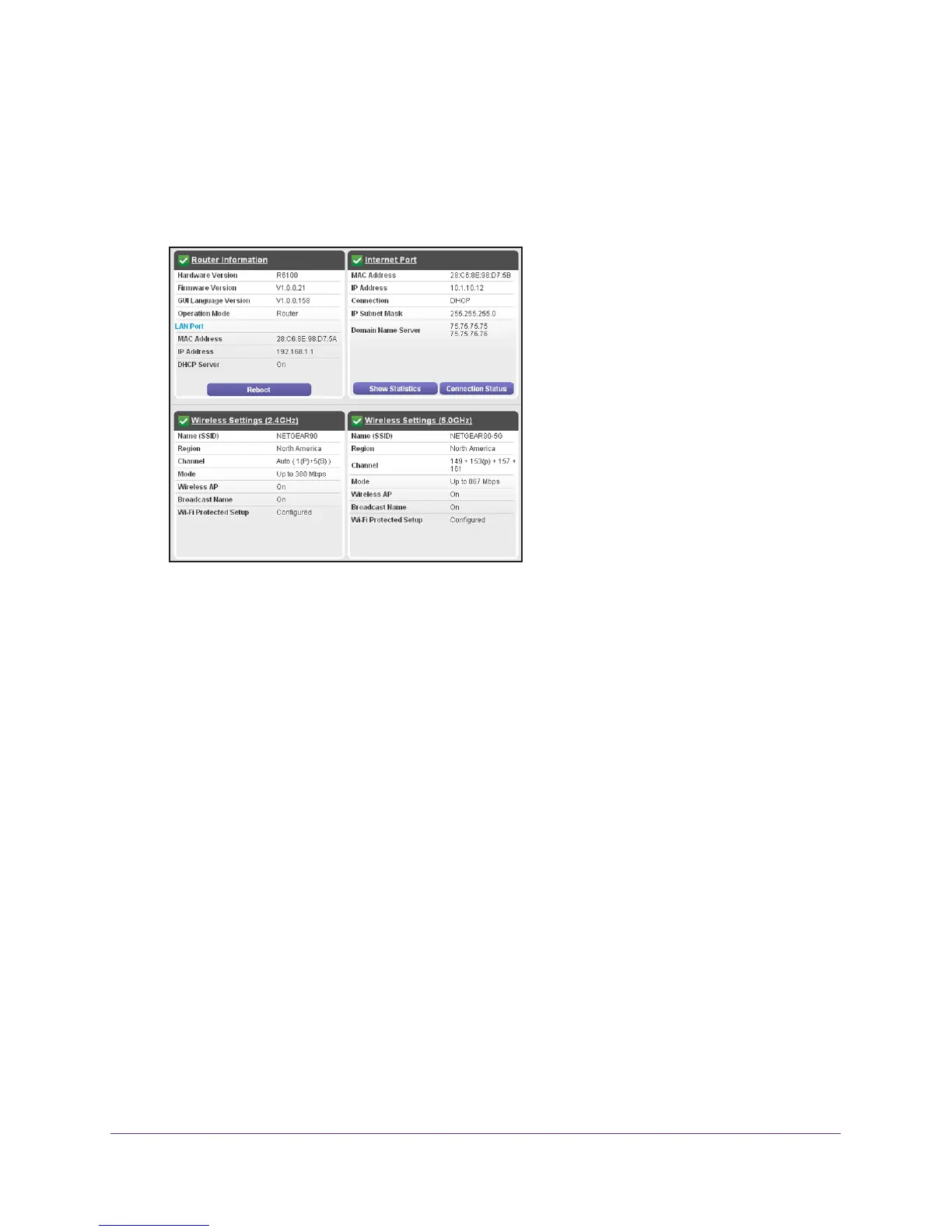

View Router Status
 To view router status and usage information:
Select Advanced Home or select Administration > Router Status.
Router Information
• Hardware Version. The router model.
• Firmware Version.
The version of the router firmware. It changes if you upgrade the
router firmware.
• GUI Language V
ersion. The localized language of the user interface.
• LAN Port.
- MAC Address.
The Media Access Control address. This is the unique physical
address used by the Ethernet (LAN) port of the router.
- IP Address.
The IP address used by the Ethernet (LAN) port of the router. The
default is 192.168.1.1.
- DHCP. Identifies whether the router’
s built-in DHCP server is active for devices on the
LAN.
Internet Port
• MAC Address. The Media Access Control address, which is the unique physical address
used by the Internet (WAN) port of the router.
• IP Address.
The IP address used by the Internet (WAN) port of the router. If no address
is shown or the address is 0.0.0.0, the router cannot connect to the Internet.
• Connection. This shows if the router is using a fixed IP address on the WAN. If the value
is DHCP Client, the router obtains an IP address dynamically from the ISP
.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
