Administration
73
R6100 WiFi Router
• IP Subnet Mask. The IP subnet mask used by the Internet (WAN) port of the router.
• Domain Name Server.
The Domain Name Server addresses used by the router. A
Domain Name Server translates human-language URLs such as www.netgear.com into
IP addresses.

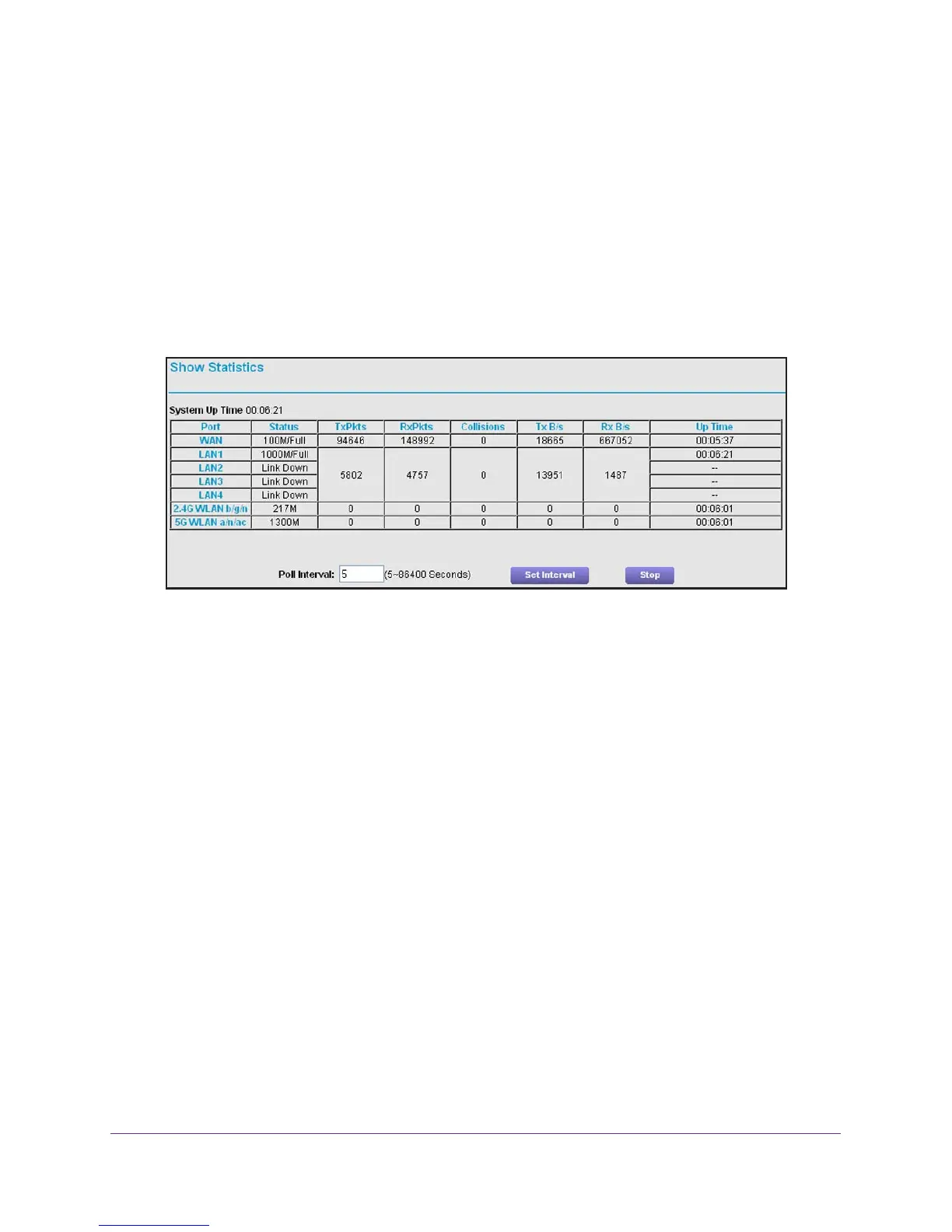

Show Statistics Button
To view statistics:
1. Select Advanced Home or select Administration > Router Status.
2. In the Internet Port pane, click the Show Statistics button.
The following information is displayed:
• System Up T
ime. The time elapsed since the router was last restarted.
• Port.
The statistics for the WAN (Internet) and LAN (Ethernet) ports. For each port, the
screen displays:
- Status.
The link status of the port.
- TxPkts.
The number of packets transmitted on this port since reset or manual clear.
- RxPkts.
The number of packets received on this port since reset or manual clear.
- Collisions.
The number of collisions on this port since reset or manual clear.
- Tx B/s.
The current transmission (outbound) bandwidth used on the WAN and LAN
ports.
- Rx B/s.
The current reception (inbound) bandwidth used on the WAN and LAN ports.
- Up T
ime. The time elapsed since this port acquired the link.
- Poll Interval.
The interval at which the statistics are updated in this screen.
To change the polling frequency, enter a time in seconds in the Poll Interval field and click the
Set Interval button.
To stop the polling entirely, click the Stop button.
