NETGEAR R6100 User Manual

Administration
76
R6100 WiFi Router
• Date and time. The date and time the log entry was recorded.
2. (Optional)
You can do any of the following:
• T
o refresh the log screen, click the Refresh button.
• T
o clear the log entries, click the Clear Log button.
• T
o email the log, click the Send Log button.

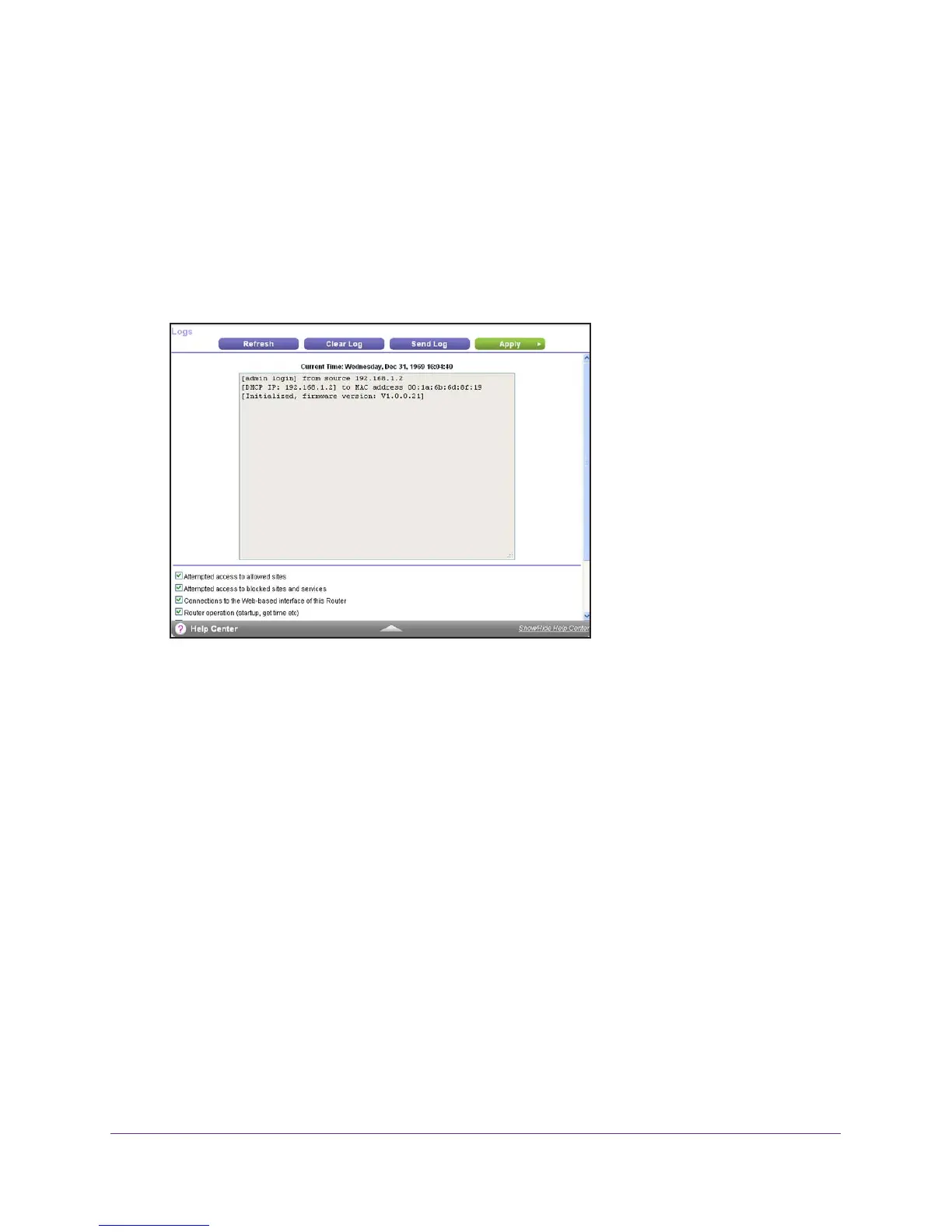

 To specify logs settings:
1. Select ADV
ANCED > Administration > Logs.
2. Select the check boxes for the events that you want to include in the log.
• Attempted access to allowed sites
• Attempted access to blocked sites and services
• Connections to the W
eb-based interface of this Router
• Router operation (startup, get time etc)
• Known DoS attacks and Port Scans
• Port Forwarding / Port
Triggering
• Wireless access
• T
urn off wireless signal by schedule
• ReadySHARE
3. Click the Apply button.

NETGEAR R6100 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
USB version	2.0
Rack mounting	-
xDSL connection	No
Bandwidth (first)	2.4 GHz
Bandwidth (second)	5 GHz
USB ports quantity	1
WLAN data transfer rates supported	300, 867 Mbit/s
Ethernet LAN (RJ-45) ports	5
Security algorithms	WEP, WPA, WPA2-PSK
Flash memory	128 MB
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	60 mm
Width	180 mm
Height	170 mm
Weight	322 g
