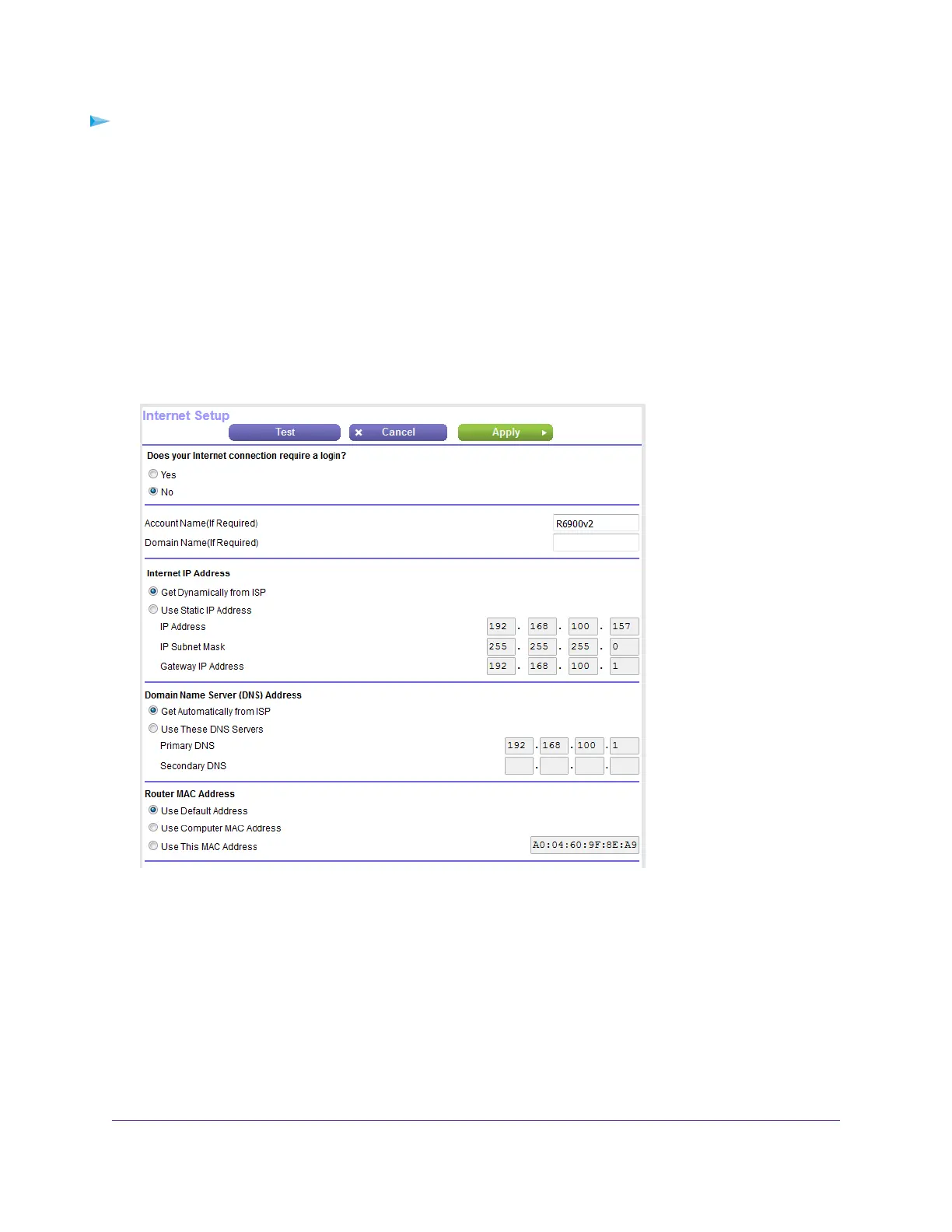

To specify the connection settings for an Internet service for which you do not need to log
in:
1. Launch a web browser from a computer or mobile device that is connected to the network.
2. Enter http://www.routerlogin.net.
A login window opens.
3. Enter the router user name and password.
The user name is admin.The default password is password.The user name and password are
case-sensitive.
The BASIC Home page displays.
4. Select Internet.
5. Leave the Does your Internet connection require a login? No radio button selected.
6. If your Internet connection requires an account name or host name, type it in the Account Name (If
Required) field.
7. If your Internet connection requires a domain name, type it in the Domain Name (If Required) field.
For the other sections on this page, the default settings usually work, but you can change them.
8. Select an Internet IP Address radio button:
• Get Dynamically from ISP.Your ISP uses DHCP to assign your IP address.Your ISP automatically
assigns these addresses.
Specify Your Internet Settings
25
Nighthawk AC1900 Smart WiFi Router Model R6900v2

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the NETGEAR R6900v2 and is the answer not in the manual?

NETGEAR R6900v2 Specifications

General IconGeneral
WiFi Technology802.11ac
WiFi PerformanceAC1900 (600 + 1300 Mbps)
USB Ports1 USB 3.0 port
Antenna3 external antennas
ProcessorDual Core 1GHz
Frequency BandDual Band 2.4 GHz / 5 GHz
Memory128MB Flash, 256MB RAM
SecurityGuest Network Access
Dimensions11.22 x 7.26 x 1.97 inches
Number of Ethernet Ports5 x 10/100/1000 Mbps Gigabit Ethernet ports (1 WAN & 4 LAN)
