NETGEAR RangeMax WNDA3100 User Manual

NETGEAR RangeMax Dual Band Wireless-N USB Adapter WNDA3100 User Manual
1-12
v1.0, December 2007

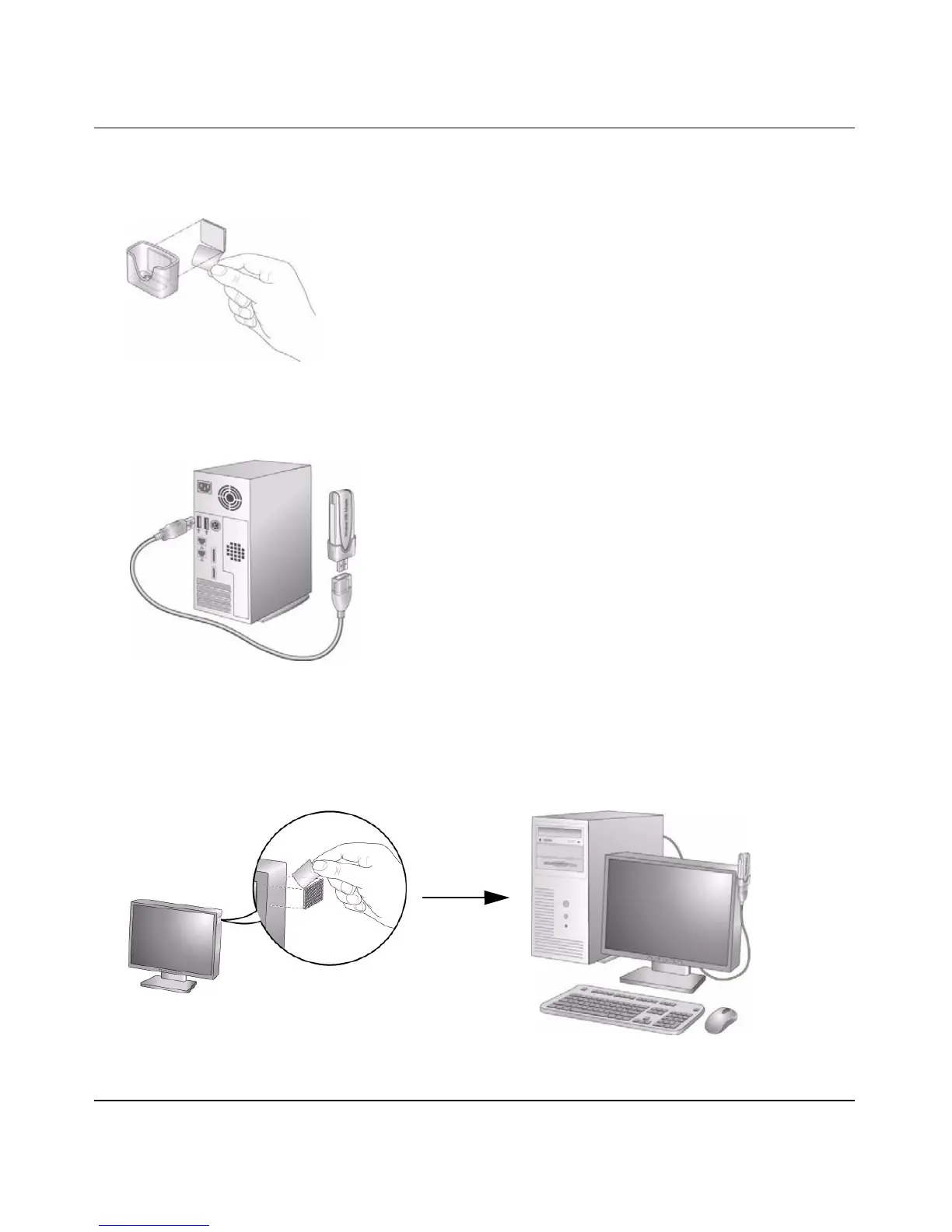

1. The wireless USB adapter comes with three black fasteners. Locate the one with a prickly
side, and attach it to the plastic cradle on the middle of the outside rear.
2. Insert the wireless USB adapter in the plastic cradle, and connect the USB cable.
4. Place one of the other pieces of loop-and-hook fastener on the side or back of your monitor
near the top for better reception. Then join the pieces of the fastener to attach the USB adapter
in the plastic cradle to the monitor.
Figure 1-10
Figure 1-11
Figure 1-12

NETGEAR RangeMax WNDA3100 Specifications

General

Category	Wireless Adapter
Interface	USB 2.0
Wireless Standards	IEEE 802.11a/b/g/n
Frequency Band	2.4 GHz / 5 GHz
Wireless Data Rates	Up to 300 Mbps
Security	WEP, WPA-PSK, WPA2-PSK
Operating Systems Supported	Windows XP, Windows Vista
