NETGEAR RBK20 - Orbi Satellite Model RBS50 Hardware Overview

6. Power On/Off button
7. Power LED
8. DC Power connector
9. Reset button
Orbi Satellite Model RBS50 Hardware Overview

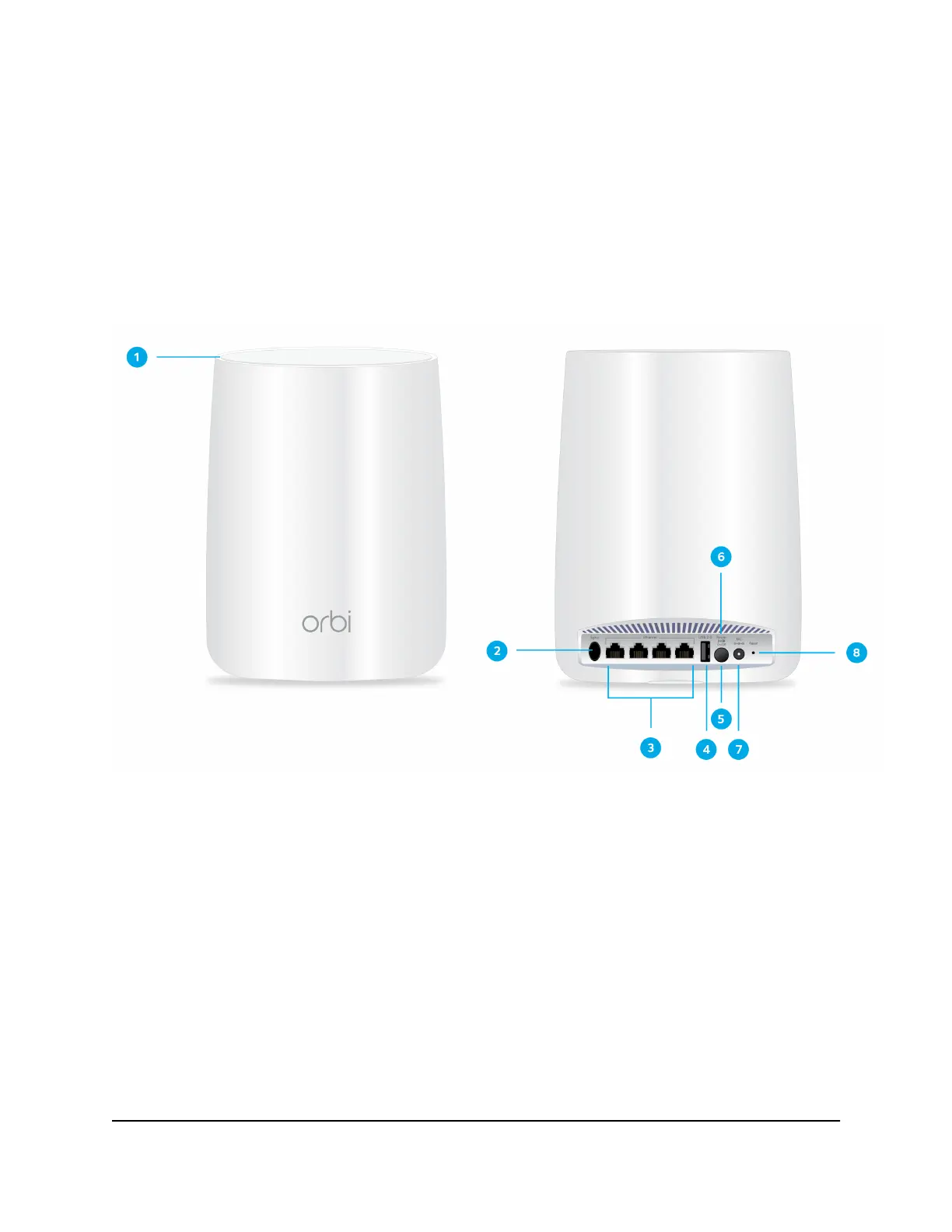

Figure 2. Orbi satellite model RBS50, front and back views
1. Ring LED (not shown in image)
2. Sync button (also used for WPS connection)
3. Ethernet ports
4. USB port
5. Power On/Off button
6. Power LED
7. DC Power connector
8. Reset button
User Manual10Overview
Orbi WiFi System
