Front Panel

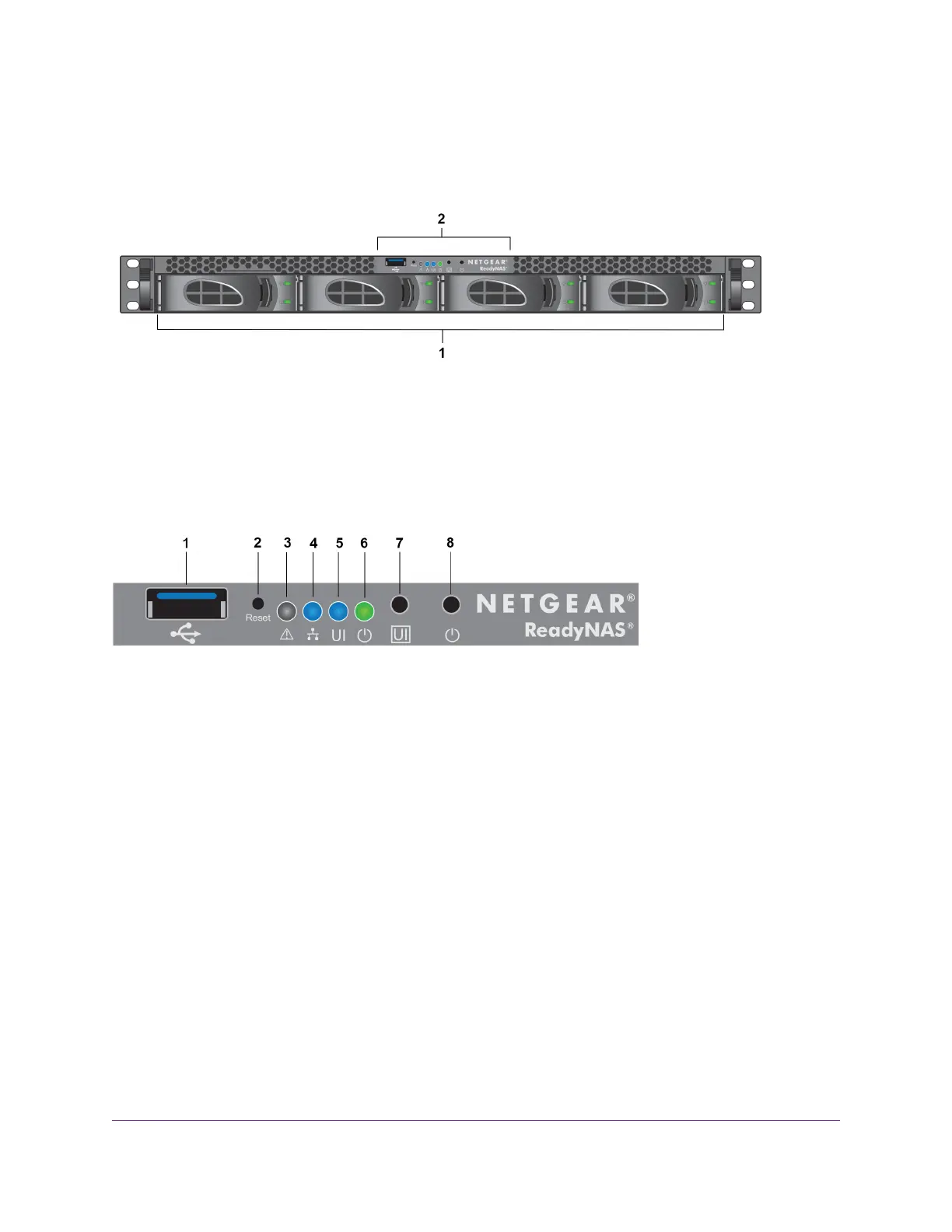

The following figure shows the front panel of the ReadyNAS 2304.
Figure 4. Front panel
1. Drive bays with disk status LEDs
2. Control panel
The following figure shows the control panel in more detail.
Figure 5. Control panel
1. USB 3.0 port
2. Reset button
3. Health LED
4. LAN LED
5. Unit identifier (UID) LED
6. Power LED
7. Unit identifier (UID) button
8. Power button
Each drive bay features a latch that releases the pop-out tray handle, as shown in the following figure.
ReadyNAS 2304
19
ReadyNAS OS 6
