ReadyNAS 4312S Rear Panel
The following figure shows the rear panel of the ReadyNAS 4312S storage system.

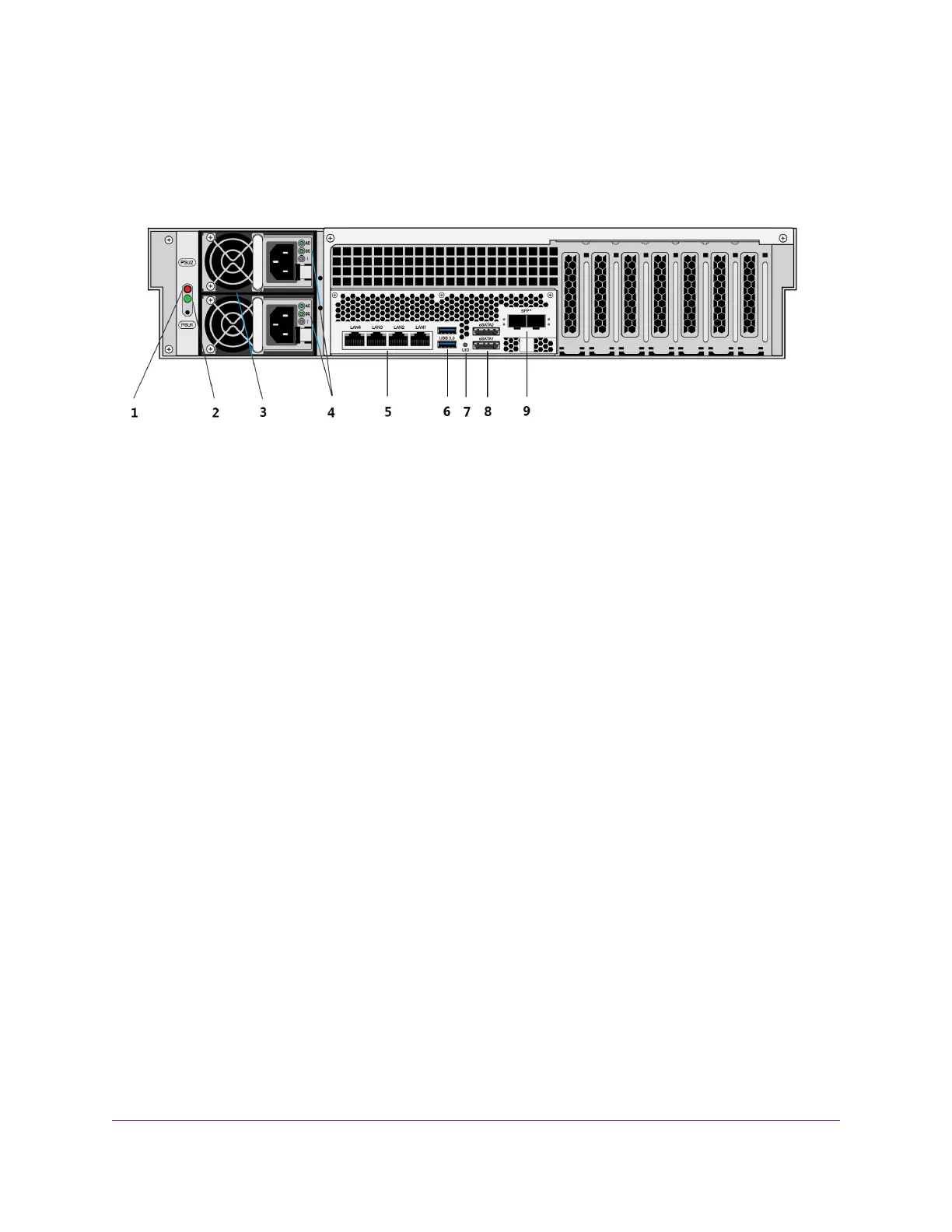

Figure 26. Rear panel
1. Power System Alarm Mute button
2. Power System LED
3. Power supplies
4. Power Supply LEDs
5. 1 Gigabit Ethernet LAN ports with LED status indicators
6. USB 3.0 ports
7. Unit Identifier (UID) LED
8. eSATA ports
9. SFP+ ports with LED status indicators
Status Information Front Panel
You can obtain information about the status of your system by reviewing the front panel indicators that are
listed in the following table.
ReadyNAS 3312 and 4312
56
ReadyNAS OS 6
