Front Panel

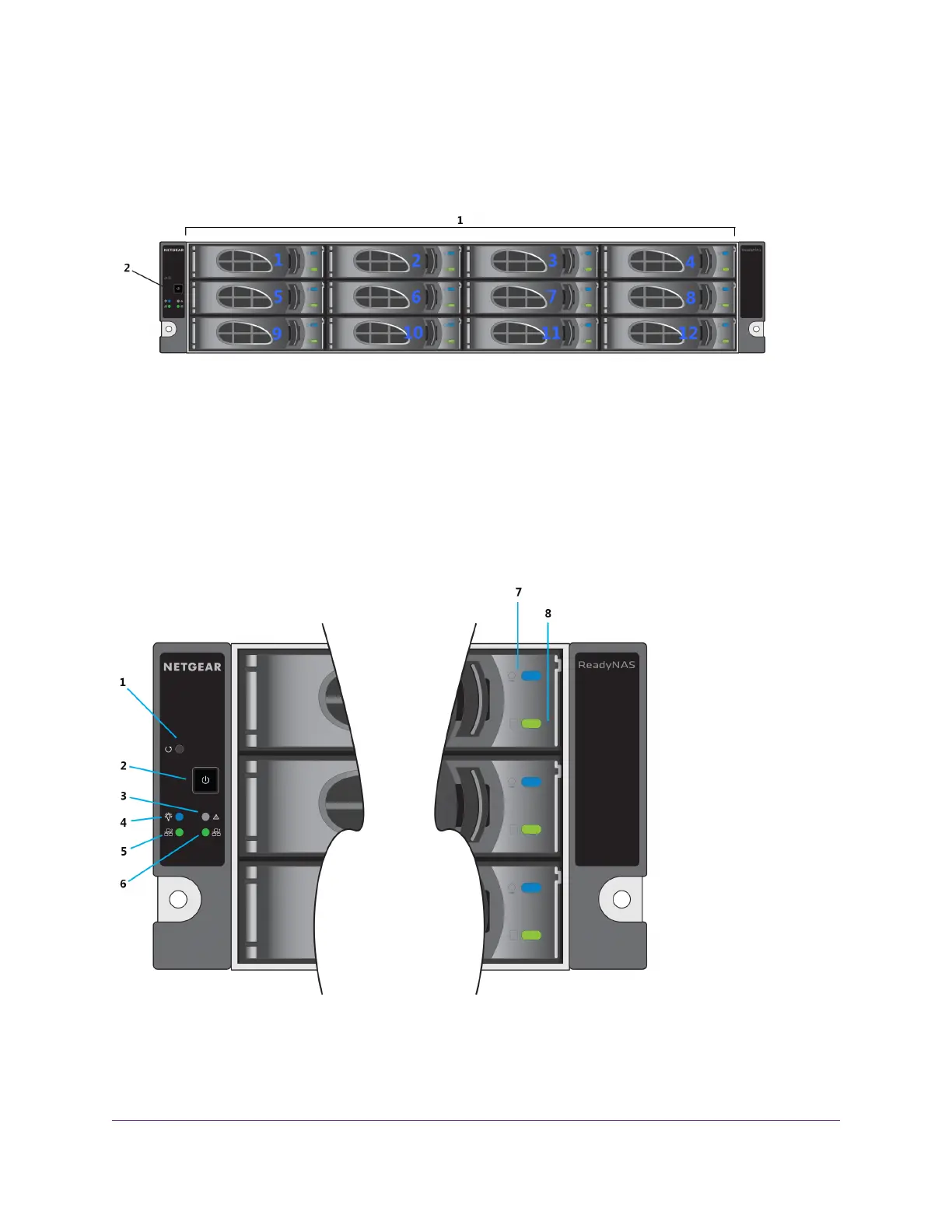

The following figure shows the front panel of the ReadNAS 3312 and 4312 storage systems.
Figure 21. Front panel
1. Drive bays with disk status LEDs.The number next to each drive bay indicates the number of the disk
drive in the system.
2. Control panel
The following figure shows the control panel in more detail.
Figure 22. Control panel
1. Reset button
2. Power button
ReadyNAS 3312 and 4312
