Hardware Setup
7
802.11ac Wireless Access Point Model WAC120
Front and Side View

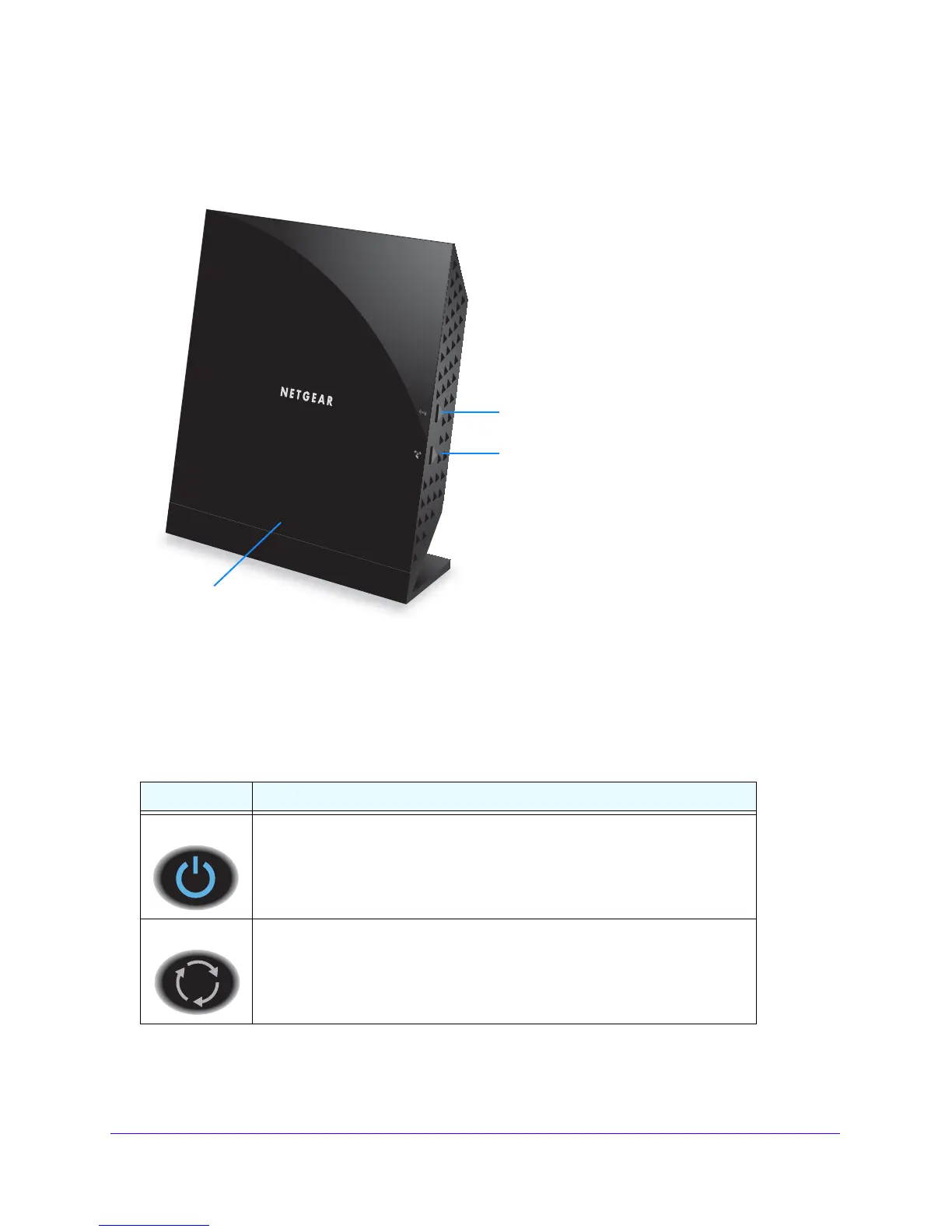

The status LEDs and icons on the front and side panels are shown in the following figure.
LEDs
WiFi On/Off button
WPS button
Figure 2. Front and side view
LEDs and Buttons
The LEDs on the wireless access point light to indicate wireless access point activity:
Table 1. LEDs
LED Description
Power
• Off. Power is off.
• Green. Power
in on.
• Amber. A self-test is running. During startup the LED is amber, then blinking
green before turning steady green after 45 seconds. If the LED is amber or
continues blinking green after one minute, a system fault exists.
Activity
• Off. No Ethernet traffic is detected.
• Green or blinking green. Etherne
t traffic is detected.
