NETGEAR WNDR4500

Administration
72
N900 Wireless Dual Band Gigabit Router WNDR4500
Connection. This shows if the router is using a fixed IP address on the WAN. If the value is
DHCP Client, the router obtains an IP address dynamically from the ISP.
IP Subnet Mask.
The IP subnet
mask being used by the Internet (WAN) port of the router.
Domain Name Server. The Domain Name
Server addresses being used by the router. A
Domain Name Server translates human-language URLs such as www.netgear.com into IP
addresses.
Statistics Button
On the Router Status screen, in the Internet Provider (WAN) Setup pane, click the Statistics
button to display the following screen:

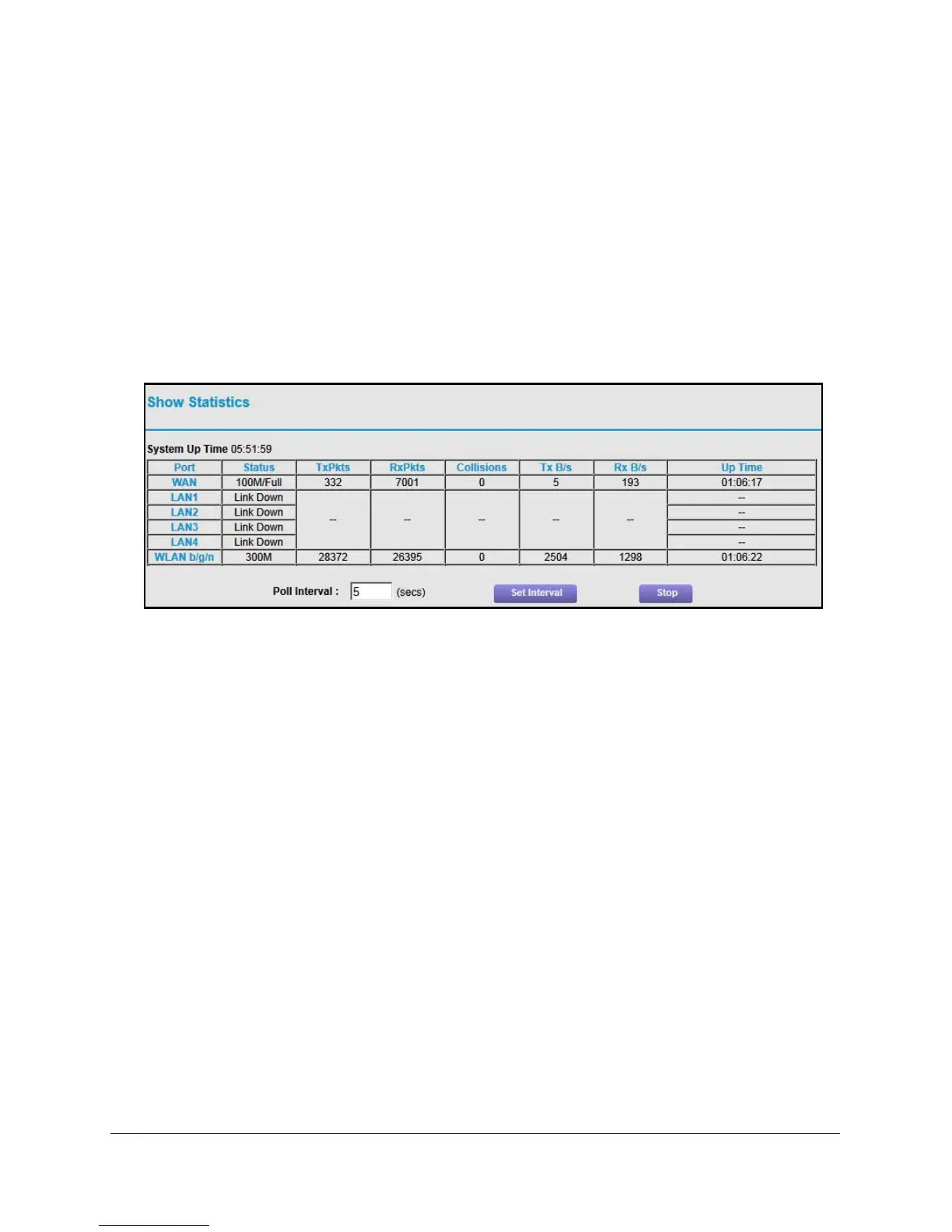

Figure 6. System up time and poll interval statistics
System Up Time. The time elapsed since the router was last restarted.
Port. The sta
tistics for the WAN (Internet) and LAN (Ethernet) ports. For each port, the
screen displays:
• S
tatus. The link status of the port.
• TxPkts. The number of packets transmitted on this port since reset or manual clear.
• RxPkts. T
he number of packets received on this port since reset or manual clear.
• Collisions
. The number of collisions on this port since reset or manual clear.
• Tx B/s. The current transmission (ou
tbound) bandwidth used on the WAN and LAN ports.
• Rx B/s. The curre
nt reception (inbound) bandwidth used on the WAN and LAN ports.
• Up Time. The
time elapsed since this port acquired the link.
• Poll Interva
l. The interval at which the statistics are updated in this screen.
To change the polling frequency, enter a time in seconds in the Poll Interval field, and click
Set Interval.
To stop the polling entirely, click St
o
p.
