NETGEAR WNDR4500v2 - QoS for a Router LAN Port; To create a QoS policy for a device connected to one of the router’s LAN ports

NETGEAR genie Advanced Home
43
N900 Wireless Dual Band Gigabit Router WNDR4500v2

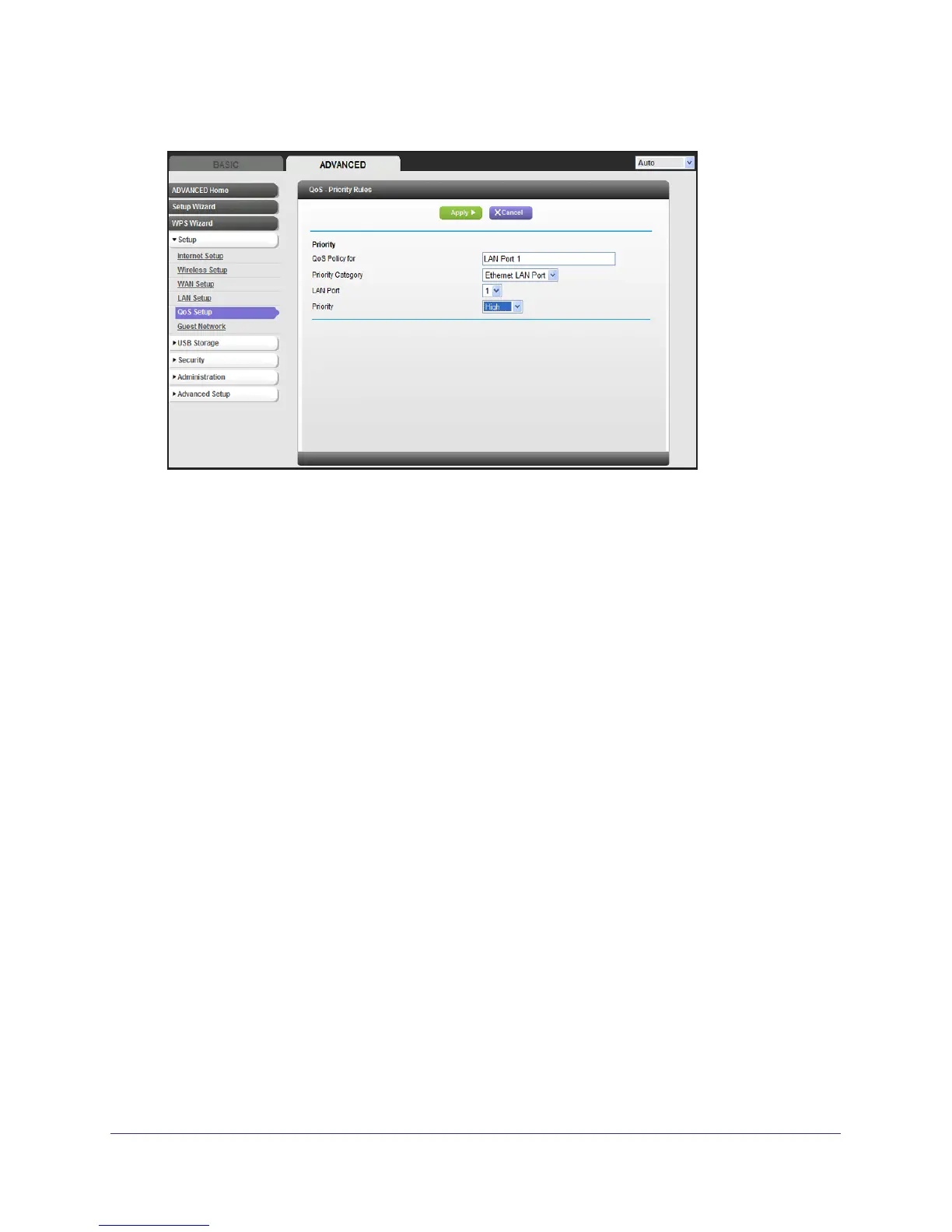

5. From the Priority Category list, select Ethernet LAN Port, as shown in the following figure:
6. From the LAN port list, select the LAN port.
7. From the Priority list, select the priority that this port’
s traffic should receive relative to other
applications and traffic when accessing the Internet. The options are Low, Normal, High, and
Highest.
8. Click Apply to save this rule to the QoS Policy list and return to the QoS Setup screen.
9. In the QoS Setup screen, click Apply.
QoS for a MAC Address
 To create a QoS policy for traffic from a specific MAC address:
1. Select Advanced > Setup > QoS Setup, and click the Setup QoS Rule button.
The
QoS Setup screen displays.
2. Click Add Priority Rule.
