XAV101 Powerline AV Ethernet Adapter User Guide
Installation and Basic Configuration 1-3
v1.0, April 2008
Powerline AV Ethernet Adapter

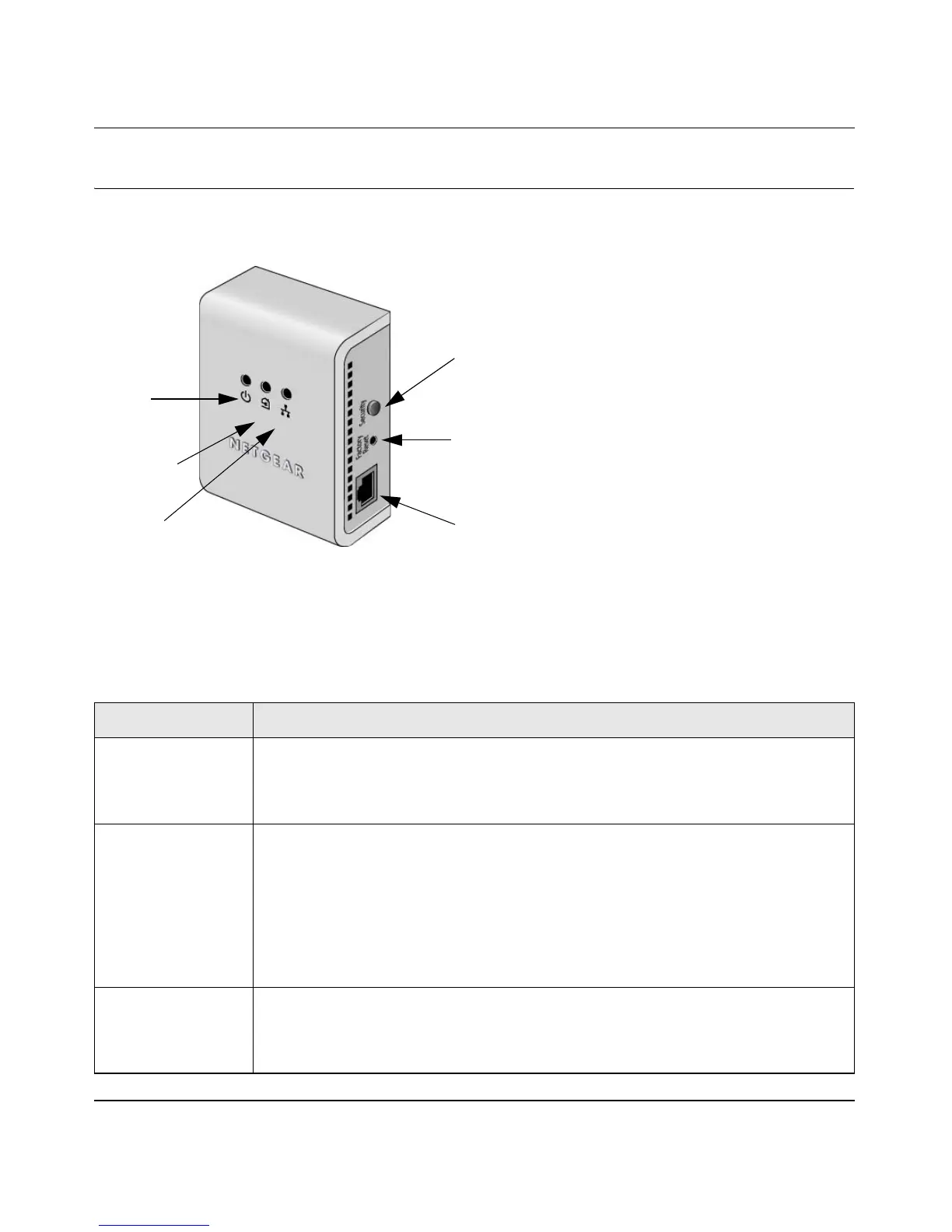

The following illustration shows the Powerline AV Ethernet Adapter front and side panels:
The following table describes the buttons, status lights, and port.
Figure 1-2
Table 1-1.
Powerline AV Ethernet Adapter Description
Item Description
Power Light • Solid green. The electrical power is on.
• Blinking green. The adapter is setting itself up after the reset or Security button
was pressed.
• Off. There is no electrical power.
Powerline Light • Solid. The adapter is connected to a Powerline network.
• Blinking. The adapter is sending or receiving data.
• Off. The adapter has not found any other compatible Powerline devices using the
same Powerline network encryption key.
The color indicates the speed of the Powerline link:
• Green. The link is faster than 80 Mbps.
• Orange. The link is 50 Mbps to 80 Mbps.
• Red. The link is less than 50 Mbps.
Ethernet Light • Solid green. The Ethernet port is linked, but there is no activity.
• Blinking green. There is traffic between an Ethernet port and the Powerline
network.
• Off. There is no Ethernet connection.
Ethernet
port
Ethernet
light
Powerline
light
Power
light
Security
button
Reset
button
