NETGEAR XS708T Hardware Installation Guide

Hardware Overview Model XS708T
The following sections describe the physical characteristics of model XS708T.
Front Panel Model XS708T
The switch provides eight 100M/1G/10G copper RJ-45 ports, of which port 7T and slot 7F form one combo
port and port 8T and slot 8F form another combo port. The 1G and 10G SFP+ slots (7F and 8F) accept
copper or fiber modules.You use either port 7T or port 7F, and similarly, either port 8T or port 8F. Each
copper RJ-45 port is capable of sensing the line speed and negotiating the duplex mode with the link partner
automatically.
The following figure shows the front panel of the model XS708T.

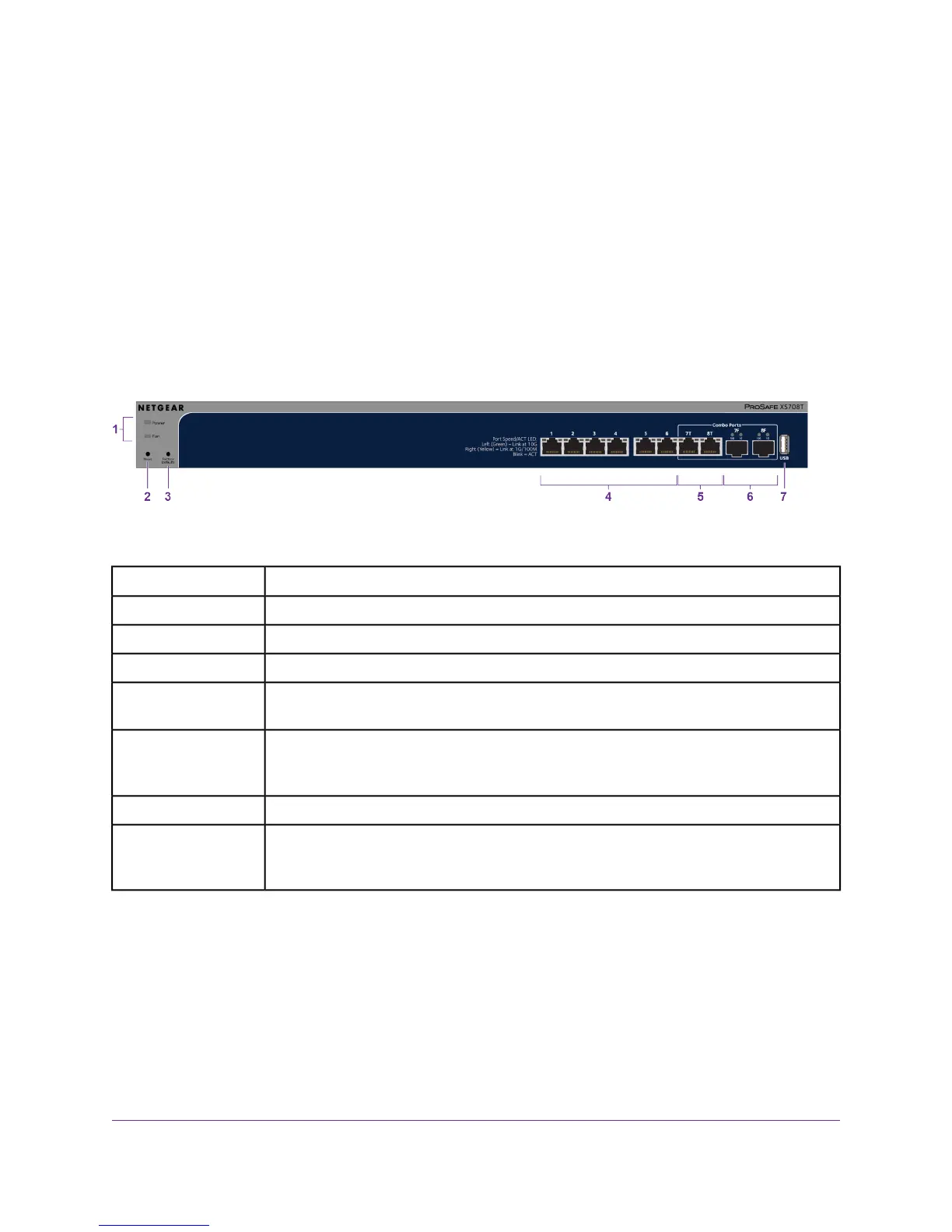

Figure 1. Front panel model XS708T
DescriptionNumber
Power and Fan LEDs.1
Recessed Reset button to restart the device.2
Recessed Factory Defaults button to restore the device back to the factory defaults.3
Eight RJ-45 connectors for 100M/1G/10G AutoSensing 10-Gigabit Ethernet switching
ports.
4
Two of these ports (7 and 8) are combo ports:You can either use ports 7T and 8T
as Gigabit Ethernet switching ports or you can install copper or fiber modules in 1G
or 10G SFP+ slots 7F and 8F.
5
Speed and activity (ACT) LEDs for each port.6
One USB 2.0 port for firmware uploads or configuration settings file uploads and
downloads (backup) using a USB storage device (supports FAT32 and VFAT file
systems only).
7
Back Panel Model XS708T
The following figure shows the back panel of model XS708T.
Hardware Overview
11
8-Port, 12-Port, and 16-Port Gigabit Smart Managed Pro Switch

NETGEAR XS708T Specifications

General

Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
USB 2.0 ports quantity	1
SFP+ module slots quantity	2
Installed SFP modules quantity	-
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Basic switching RJ-45 Ethernet ports quantity	8
Certification	CE, FCC Cl. A, VCCI Cl. A, Cl. A EN 55022 (CISPR 22), Cl. A C-Tick, EN 55024, CCC
Product color	Black
LED indicators	Activity, Link, Power
Number of fans	1 fan(s)
Number of VLANs	256
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Private VLAN, Protocol-based VLAN
Cable types supported	Cat5e, Cat6, Cat6a, Cat7
Copper ethernet cabling technology	10GBASE-T
Noise level	29.1 dB
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	600 MHz
Mean time between failures (MTBF)	276832 h
Jumbo frames	9000
Latency (10 Gbps)	3.012 µs
MAC address table	16000 entries
Packet buffer memory	2 MB
Number of static routes	32
DHCP features	DHCP server, DHCP client
Security algorithms	802.1x RADIUS
Access Control List (ACL) rules	100
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	96 W
Operating altitude	0 - 3000 m
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Cables included	AC

Weight and Dimensions

Depth	204 mm
Width	440 mm
Height	43 mm
Weight	2980 g
