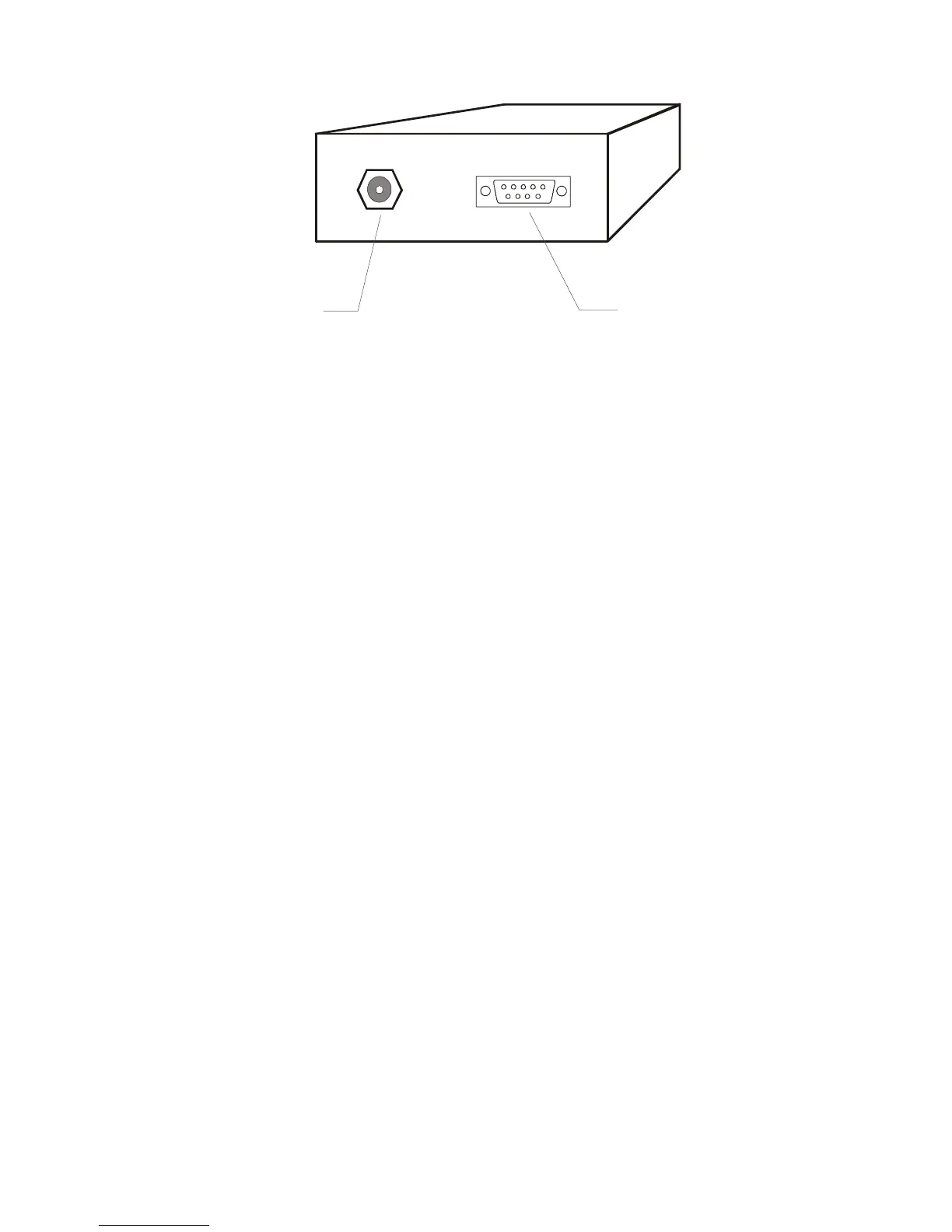

Fig. 4 Main parts of Network Adapter NetMan 101
Description of controls and connectors :
1. Power cord connector 12V DC (connect the AC/DC adapter)
2. Port to connect to UPS via serial line
I. 3 Package content
The Network Adapter package contains the following items :
• Network Adapter
• AC/DC adapter
• Installation and operation manual for Network Adapter is inside floppy disk in PDF format
• Installation diskette in MS- DOS format, labeled SNMP MIB
• RS-232 cable for connecting to the terminal (Terminal Emulation Station)
1
2
