Patch Cable Testing

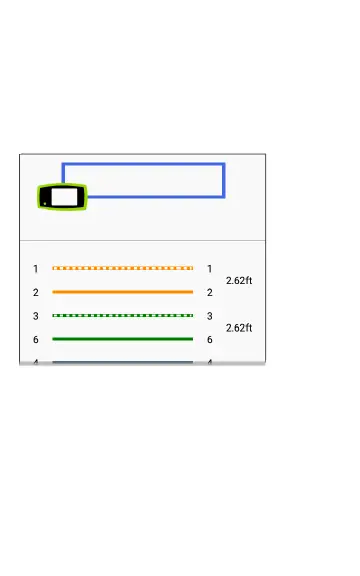

Connect a cable from the top LinkRunner G2 RJ-45
LAN port into the side RJ-45 Cable Test/Wire
Mapping Port to view its length and wire mapping,
including any faults.
Figure 18: RJ-45 LAN Port to RJ-45 Cable Test Port
64
LinkRunner G2 Tests and Results
