Connecting your Gear

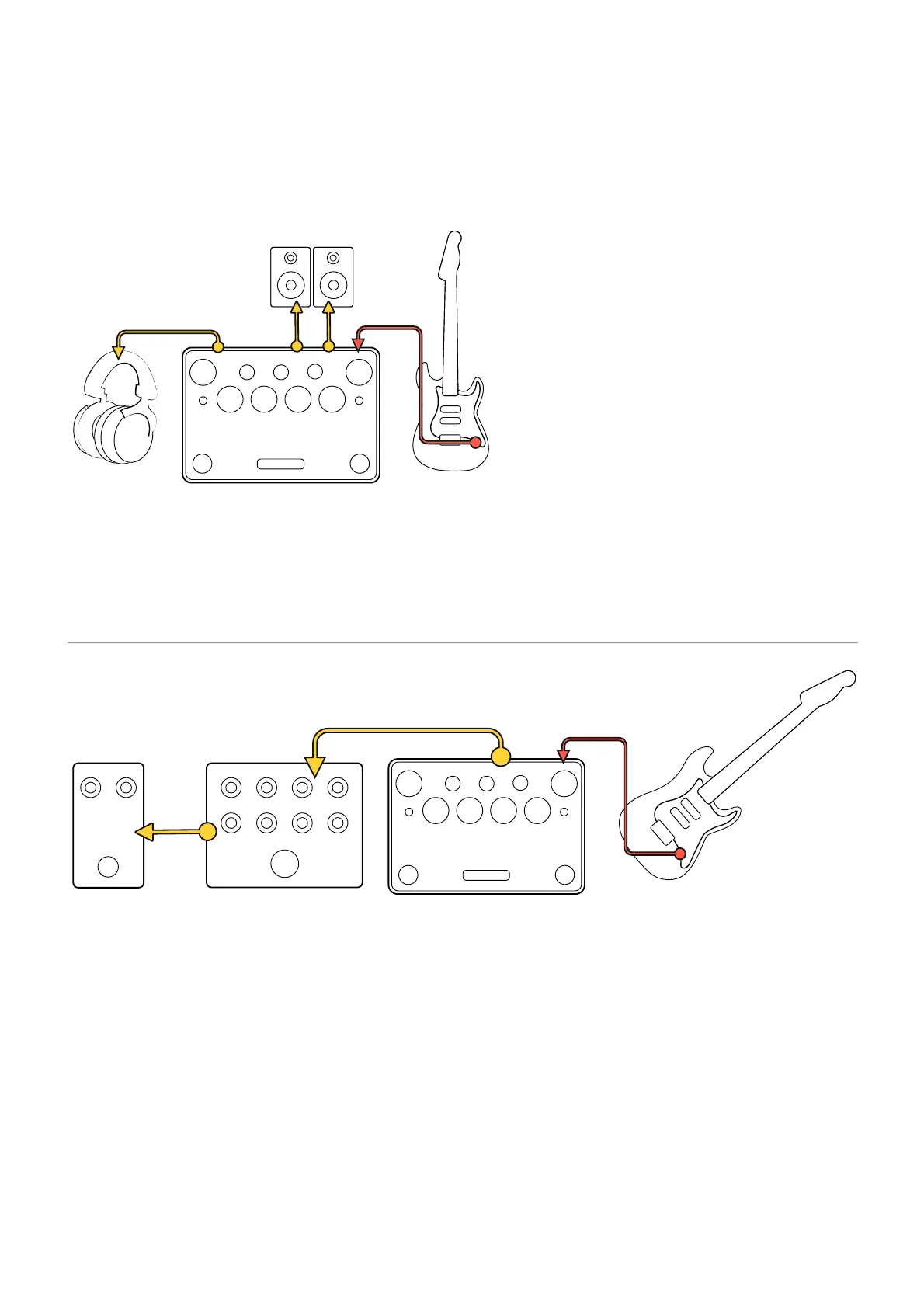

Connect your instrument to INPUT.
Connect your studio monitors, PA, or FRFR cabinet to OUTPUT 1L and 2R. Additionally, you
can connect your Headphones to HP OUTPUT.
If your Nano Cortex is part of a bigger pedalboard setup, use INPUT and OUTPUTS 1L/2R to
place it wherever you need it in the audio chain.
